MTD008585

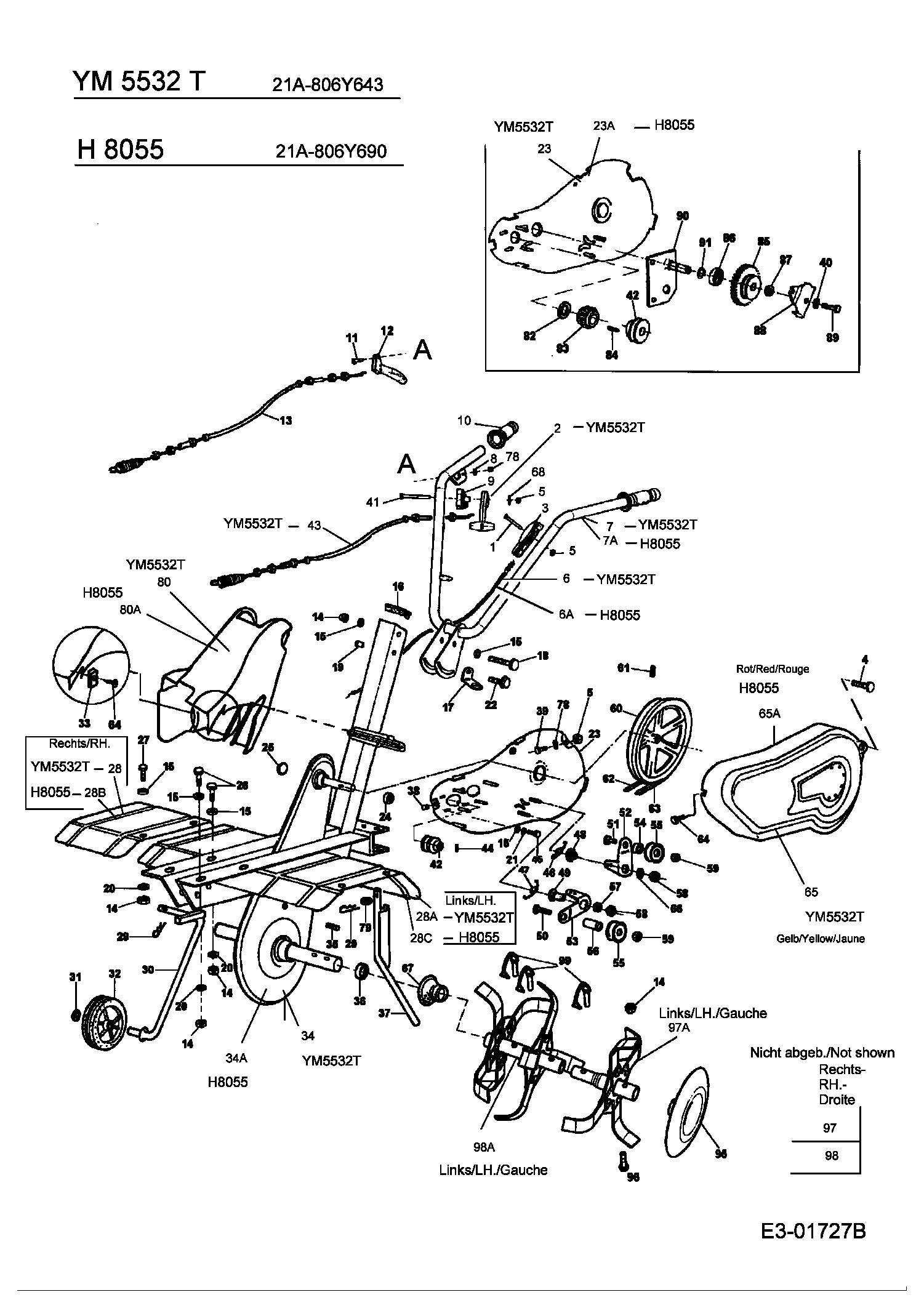

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	092.48.580	SCREW M6X55	£4.11	Add
002	092.48.605	LEVER	£11.35	Add
003	092.48.581	FULL ACCELERATOR SET	£18.72	Add
004	092.48.582	SCREW M6X16	£3.08	Add
005	092.12.076	Nut M6	£2.33	Add
006	092.48.607	CABLE	£27.24	Add
007	092.48.632	UPPER HANDLE	£129.68	Add
008	712-0691	HEX NUT M6 DIN 985	£2.66	Add
009	092.48.633	BRACKET LEVER	£8.51	Add
010	092.48.585	HANDLE GRIP	£15.09	Add
011	21.1441.49	Screw	£3.49	Add
012	092.48.250	GRIP	£30.90	Add
013	092.48.586	FULL SET CABLE	£45.07	Add
014	712-0692	HEX NUT	£3.10	Add
015	736-0700	FLAT WASHER	£2.63	Add
016	092.48.587	PLUG	£9.31	Add
017	092.48.650	CABLE HOLDER	£3.58	Add
018	092.48.588	SCREW M8X65	£5.10	Add
019	092.48.589	BOLT	£5.10	Add
020	092.48.275	WASHER	£4.37	Add
021	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add
022	092.48.590	SCREW M8X25	£5.10	Add
023	092.48.634	PLATE REAR	N/A	POA
024	092.48.592	BUSHING	£13.38	Add
025	092.48.593	PLUG	£11.35	Add
026	092.48.594	SCREW	N/A	POA
027	092.48.595	SCREW M8X18	£2.68	Add
028	092.48.648	PROTECTION HOOD RIGHT	N/A	POA
029	092.48.277	HAIRPIN	£3.82	Add
030	092.48.598	FRONT AXLE	£50.93	Add
031	092.48.280	WASHER	£8.76	Add
032	092.48.599	WHEEL	£44.47	Add
033	092.48.600	NUT	£7.48	Add
034	092.48.637	GEAR BOX ASSY. WITH ENGINE	N/A	POA
035	092.48.314	OELEINFUELLSCHRAUBE	£12.95	Add
036	092.48.313	SEAL-OIL	£21.34	Add
037	092.48.602	STTZE	£62.38	Add
038	092.48.603	NUT	£4.91	Add
039	092.48.604	SCREW M6X12	£2.68	Add
040	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
041	092.48.651	SCREW	£2.56	Add
042	092.48.606	ENGINE-PULLEY	£50.02	Add
043	092.48.658	BOWDEN WIRE	£42.40	Add
044	092.48.608	GEWINDESTIFT M6X10	£4.11	Add
045	092.48.609	SCREW	£4.59	Add
046	092.48.610	SPRING	£17.27	Add
047	092.48.611	SPRING	£17.27	Add
048	092.48.612	BUSHING	£10.34	Add
049	092.48.613	BOLT	£14.89	Add
050	092.48.614	SCREW M12X60	£6.94	Add
051	092.48.615	SCREW M12X35	£5.10	Add
052	092.48.616	IDLER BRACKET	£24.18	Add
053	092.48.617	IDLER BRACKET	£21.83	Add
054	092.48.618	SPACER	£10.34	Add
055	092.48.303	PULLEY-IDLER	£44.66	Add
056	092.48.619	SPACER	£16.91	Add
057	092.48.620	WASHER	£3.45	Add
058	092.48.621	NUT	£4.00	Add
059	092.48.622	NUT	£3.35	Add
060	092.48.623	PULLEY	£105.84	Add
061	25.3198.16	PIN 092.48.624	£3.21	Add
062	092.48.625	BELT	£44.60	Add
063	092.48.626	BELT	£126.15	Add
064	092.48.627	SCREW M6X16	£3.34	Add
065	092.48.628	COVER BELT YELLOW	£45.99	Add
066	092.48.630	SPACER	£4.00	Add
067	092.48.631	PROTECTIVE RING	£16.42	Add
068	092.48.661	washer	£3.94	Add
06A	092.48.583	WIRE	£24.24	Add
078	736-0668	WASHER	£2.23	Add
079	092.48.662	NO LONGER AVAILABLE	N/A	POA
07A	092.48.584	HANDLEBAR	£92.49	Add
080	092.48.663	COVER	£50.09	Add
082	092.48.638	SPACER	£7.96	Add
083	092.48.639	DRIVE PINION	£16.42	Add
084	092.48.640	KEY	£10.34	Add
085	092.48.641	ZAHNSCHEIBE	£61.62	Add
086	092.48.642	BALL BEARING	£32.35	Add
087	092.48.643	SPACER	£4.11	Add
088	092.48.644	RIEMENFHRUNG	£24.18	Add
089	092.48.645	SCREW M6X12	£3.58	Add
090	092.48.646	BRACKET	£44.33	Add
091	092.48.647	RING-SNAP	£3.08	Add
095	092.48.659	PROTECTION WASHER	£41.03	Add
096	092.48.652	SCREW M8X45	£4.11	Add
097	092.48.653	HACKSTERN RECHTS	£131.79	Add
098	092.48.655	DOPPELHACKSTERN RECHTS	£115.71	Add
099	092.48.657	PIN	£7.77	Add
23A	092.48.591	PLATE-REAR HITCH	N/A	POA
28A	092.48.649	SHIELD LEFT	N/A	POA
28B	092.48.596	PROTECTION HOOD RIGHT	N/A	POA
28C	092.48.597	SHIELD LEFT	N/A	POA
34A	092.48.601	GEAR BOX ASSY. WITH ENGINE	N/A	POA
65A	092.48.629	COVER BELT GREY	£45.99	Add
80A	092.48.636	BUMPER COVER	N/A	POA
97A	092.48.654	HACKSTERN LINKS	£131.79	Add
98A	092.48.656	DOPPELHACKSTERN LINKS	£115.71	Add
