MTD016559

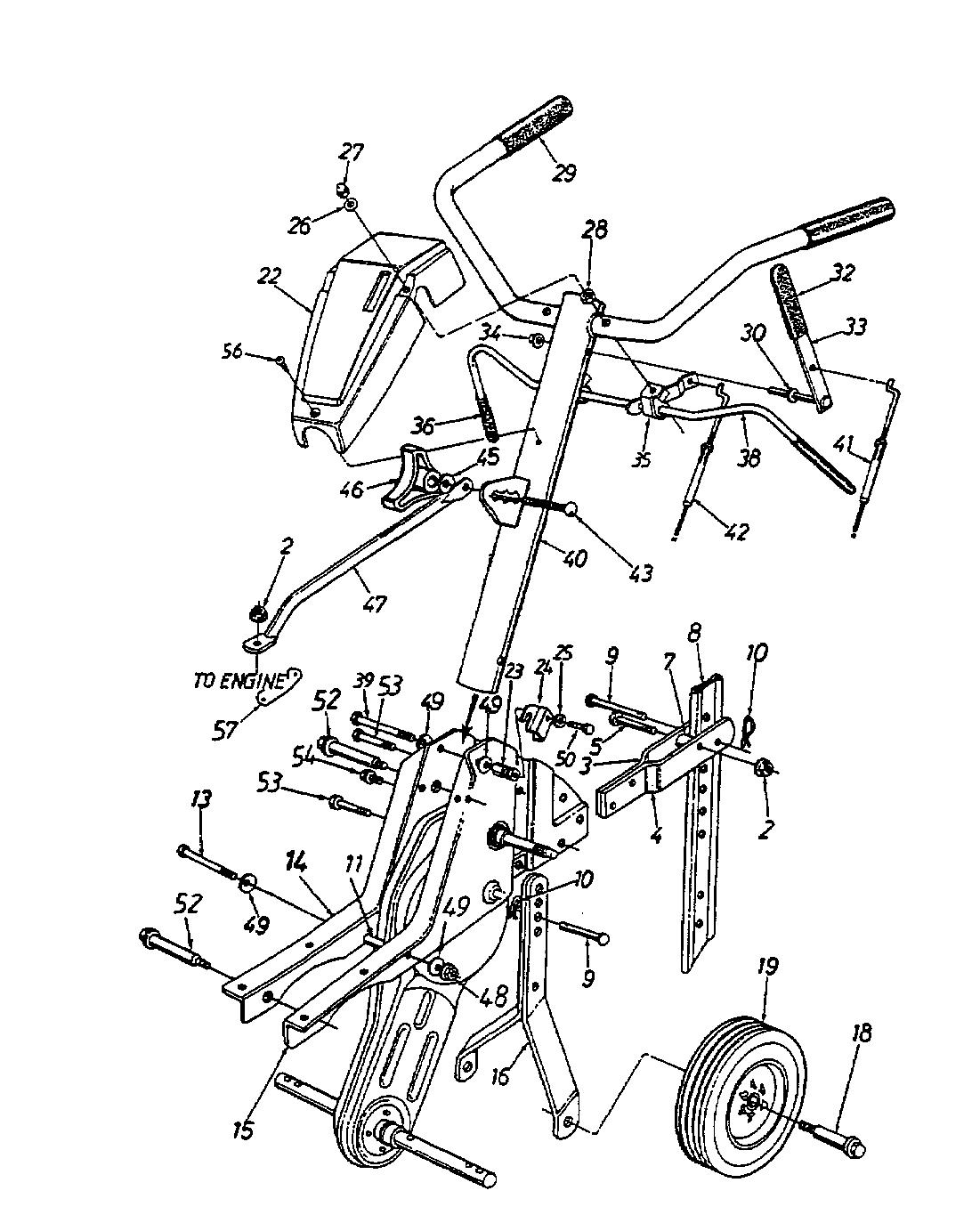

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016559

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 712-3004A HEX FLANGE NUT £2.52 Add
003 786-0004 BRACKET-TAILPIECE-RH £11.17 Add
004 786-0003 BRACKET-TAILPIECE-LH £7.50 Add
005 710-0442 Bolt, Hex 5/16-18 x 1-1/2" 43085 £4.18 Add
007 750-0890 SPACER £3.76 Add
008 786-0005 BRAKE BAR £35.28 Add
009 711-0415 CLEVIS PIN £4.44 Add
010 714-0149B COTTER PIN £2.78 Add
011 750-0470 SPACER:.47 OD x.96 LG £9.36 Add
013 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
014 786-0138637 FRAME - R.H. 786-0138 N/A POA
015 786Z0139A USE 17361C 786-0139A £71.37 Add
018 738-0929 HEX CAP SCREW,1/2-13X1.75 £9.50 Add
019 734-1781 WHEEL £39.79 Add
022 731-1600 CVR:HNDL:390:w/o THROT £37.73 Add
023 711-1036 SPEC. HEX NUT £11.45 Add
024 786-0129 BRKT-CABLE GUIDE £9.96 Add
025 736-0119 LOCK WASHER 5/16 £2.81 Add
026 736-3020 WASH:FLAT:.271 X.630 X.065 £2.53 Add
027 712-0442 NUT:LOCK:CAP:1/4-20 £3.41 Add
028 712-0287 NUT HEX £2.59 Add
029 720-0268 GRIP--HANDLE £5.08 Add
030 736-0264 WASH:FLAT:.330 x.630x.0635 £2.87 Add
032 720-0270 GRIP--REVERSE LEVER £4.38 Add
033 686-0014 REVERSE HANDLE ASS'Y. £20.02 Add
034 726-0135 Cap £2.91 Add
035 731-1645B HLDR:HNDL:CLU 731-1645A £22.62 Add
036 720-0269 GRIP:HNDL:CLU (OBSOLETE) (OBSOLETE) N/A POA
038 686-0083 CLUTCH HANDLE ASSY. (OBSOLETE) (OBSOLETE) N/A POA
039 710-0189 HHCS:5/16-18:3.00:GR5:STD £5.40 Add
040 649-0022 LONGHORN HANDLE ASSY. £101.62 Add
041 746-0919A CLUTCH CONTROL CABLE--REVERSE 746-0919 N/A POA
042 746-0918 CABLE £24.62 Add
043 710-1236 SCREW £4.61 Add
046 720-0195 KNOB:HAND £16.75 Add
047 749-0915A ENGINE TUBING BRACE (OBSOLETE) (OBSOLETE) N/A POA
048 712-0429 NUT HEX.INS L NUT £3.77 Add
049 736-0242 BELL WASHER £3.14 Add
050 710-3008 HEX BOLT £2.57 Add
052 738-0934 SCR:SHLDR:.475x2.11:TT:5/16-18 £12.10 Add
053 710-0604A SCREW £3.50 Add
054 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
056 710-0779A SELF TAP SCREW £3.02 Add
057 786-0159 ENGINE BRACKET £3.82 Add
