MTD017202

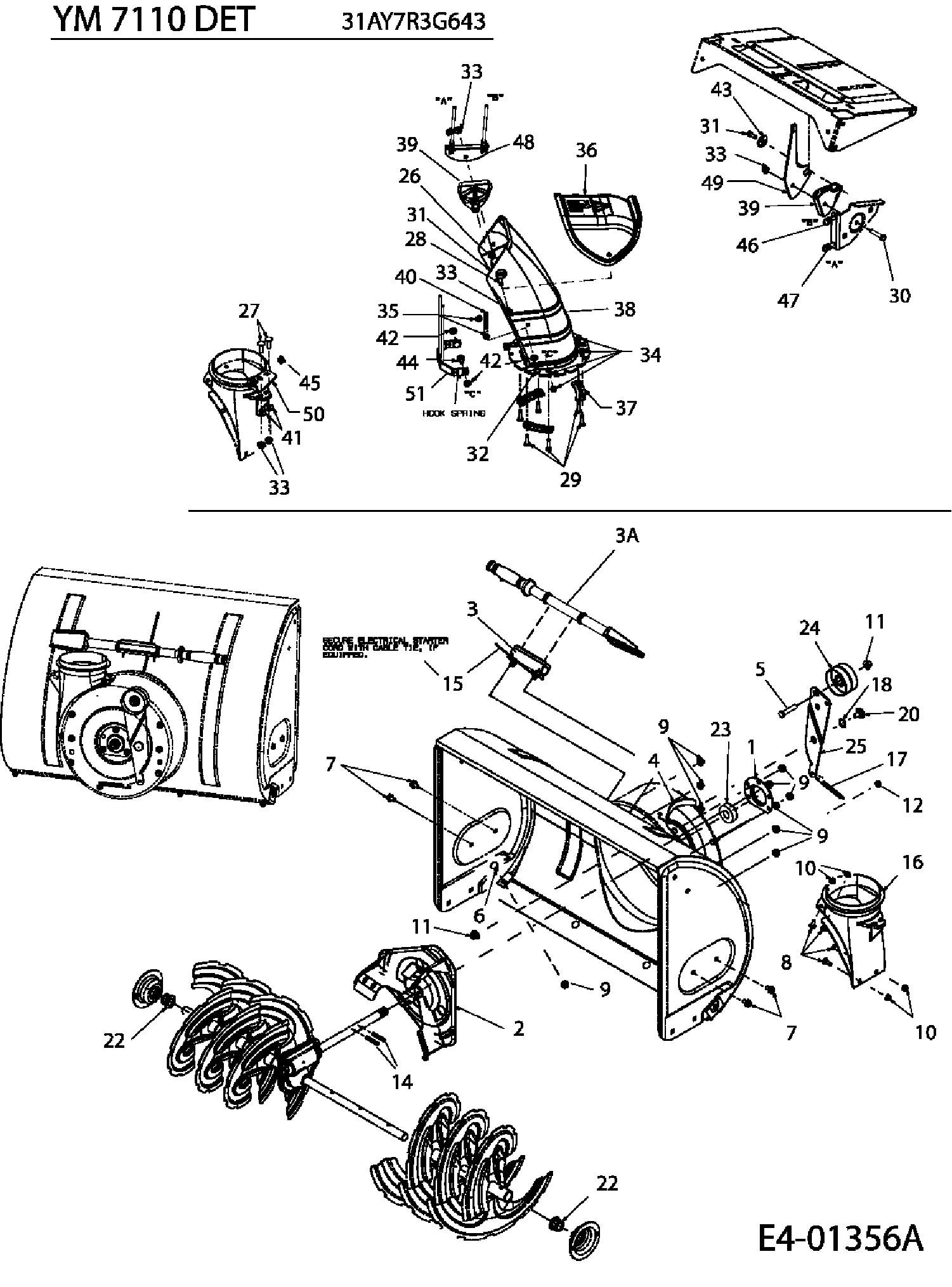

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	05931A	HOUSING-BEARING	£20.09	Add
002	684-0065	IMPELLOR	£96.25	Add
003	731-2635	MOUNTING BRACKET - CHUTE TOOL	£10.42	Add
004	705-5226	REINFORCEMENT-CHUTE 5.0	£58.00	Add
005	710-0347	HEX SCR	£3.72	Add
006	710-0451	BOLT:CRG:5/16-18:.750 GR1	£3.70	Add
007	710-0604A	SCREW	£3.62	Add
008	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add
009	712-04063	FLANGED NUT	£4.20	Add
010	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
011	712-04065	NUT	£4.02	Add
012	712-3009	NUT:HEXLK:5/16-18:GRB:CTRLK	£2.98	Add
014	715-0114A	SPRING PIN 715-0114	£5.15	Add
015	725-0157	NO LONGER AVAILABLE	N/A	POA
016	731-1379D	CHUTE ADAPTER	£52.45	Add
017	732-0611	SPR:EXTN:.38 OD x 3.6 LG	£5.34	Add
018	736-0174	WASHER	£3.42	Add
020	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add
022	741-0245	BRG:HEX FLANGE x.75 ID	£9.33	Add
023	741-0309	BALL BRG:.75 ID x 1.85 OD FLNG	£45.20	Add
024	756-0178	TENSION PULLEY	£37.16	Add
025	784-5632B	PLATE-BYPASS	£67.47	Add
026	710-0262	BOLT:CRG:5/16-18:1.50:GR2	£4.00	Add
027	710-0276	SCREW:CRG:SPL:5/16-18:1.00	£3.69	Add
028	710-04071	BOLT:CARR:5/16-18:1.000:CUSTOM	£2.79	Add
029	710-0597	HEX SEMS SCREW	£2.97	Add
030	710-0805	SCRE.HHCS:5/16-18:1.50:GR5:STD	£4.71	Add
031	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
032	710-3015	SCREW HEX CAP	£3.33	Add
033	712-04063	FLANGED NUT	£4.20	Add
034	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
035	712-3027	LOCK NUT	£2.79	Add
036	731-04425A	UPPER CHUTE	£42.43	Add
037	731-0851A	FLANGE KEEPER 5.0 DIA	£19.77	Add
038	731-1300D	LOWER CHUTE	£46.73	Add
039	731-1313C	CBL:GDE 731-1313	£15.86	Add
03A	731-2643	CHUTE CLEAN-OUT TOOL	£21.68	Add
040	732-0118A	EXTENSION SPRING:.36 OD	£19.47	Add
041	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
042	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
043	736-0506A	WASHER	£20.12	Add
044	738-0255	BOLT SHOULDER	£6.59	Add
045	741-0475	PLASTIC BUSHING .38 INCH ID	£4.74	Add
046	746-0896	CABLE:CHUTE DEFL-CTRL X 46.5	£66.57	Add
047	746-0901	CABLE:CHUTE DEFL-CTRL X 46.5	£58.58	Add
048	784-5594	BRKT:MT:CBL	£6.72	Add
049	784-5604	LEVER-CONTROL	£32.98	Add
050	784-5647	BRACKET: CHUTE CRANK	£16.96	Add
051	784-5649	CHUTE GUARD ASM:5" PLSTC EXPT.	£71.79	Add
