MTD017308

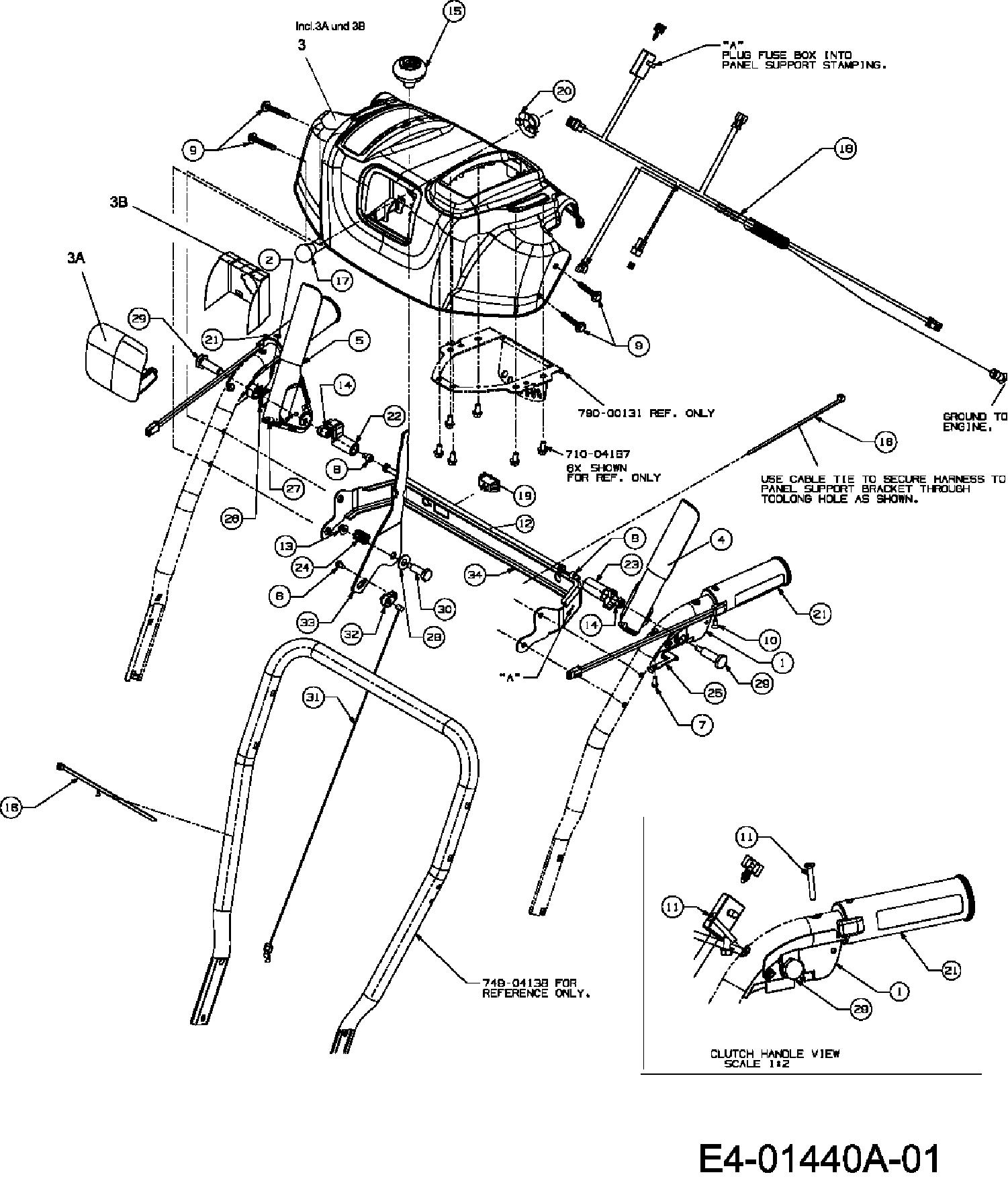

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017308

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-04785 HANDLE, CLUTCH LOCK, LH 631-04133 £7.55 Add
002 631-04134A HANDLE, CLUTCH LOCK, RH £10.18 Add
003 111.11.114 SRAP:CHUTE 723-0617 £9.20 Add
004 684-04105A HANDLE ASSY ENGAGEMENT LH £12.60 Add
005 684-04106B HANDLE ASM: ENGAGE RIGHT HAND £30.34 Add
006 710-0224 SCR:AB:#10-16:0.500:HXINDWSH N/A POA
007 710-04326 SCR:PLASTITE:#8-16 x.50 £5.54 Add
008 710-04354 SHCS:1/4-20:.375 £11.17 Add
009 710-04586 SCREW:TT:1/4-20x1.625:HXINDWSH £4.22 Add
010 710-0837 OVAL SUNK SCREW £2.96 Add
011 710-1233 SCR:MACH:#10-24:1.375:OVALCSK £7.37 Add
012 753-04882 ROD:PIVOT 711-04287 £27.12 Add
013 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
014 712-04081A NUT:HEX:1/4-20:SHLDR £7.07 Add
015 720-04045 KNOB-SHIFT £9.65 Add
016 725-0157 Nylon Tie 726-0178 £1.54 Add
017 725-04213 BULB £18.37 Add
018 725-04216A HARNESS £68.40 Add
019 725-04393 SWITCH £16.03 Add
020 725-1649 SOCKET HEADLIGHT £5.81 Add
021 725-1757 GRIP £168.62 Add
022 731-04894B PLATE, LOCK £4.92 Add
023 731-04896A CAM, LOCK £4.61 Add
024 732-0193 SPR:CMPRS:.39 x.60 x.88 LG £4.03 Add
025 732-04219A SPRING: CLUTCH LOCK £12.27 Add
026 732-04238 SPRING:TORSION:0.8156IDx.3038 £6.47 Add
027 735-0199A BUMPER-RUBBER:.62 OD x.22 THK £8.57 Add
028 736-0267 WASH:FLAT:.385 x.87 x.06:HT £3.12 Add
029 738-04122 SCR:SHLDR:.437x 1.345:1/4-20 £4.16 Add
030 738-04125 SCR:SHLD:.374 DIA x 1.05 LG £5.54 Add
031 746-04227A CABLE:SELECTOR:SPD £23.80 Add
032 746-0605 HOLD DOWN BRACKET FOR CABLE £9.68 Add
033 790-00203 LVR:SHFT £33.03 Add
034 790-00248 BRKT:PNL £35.48 Add
03A 731-05320 LENS £41.66 Add
03B 777X41803 LABEL £24.91 Add
