MTD017197

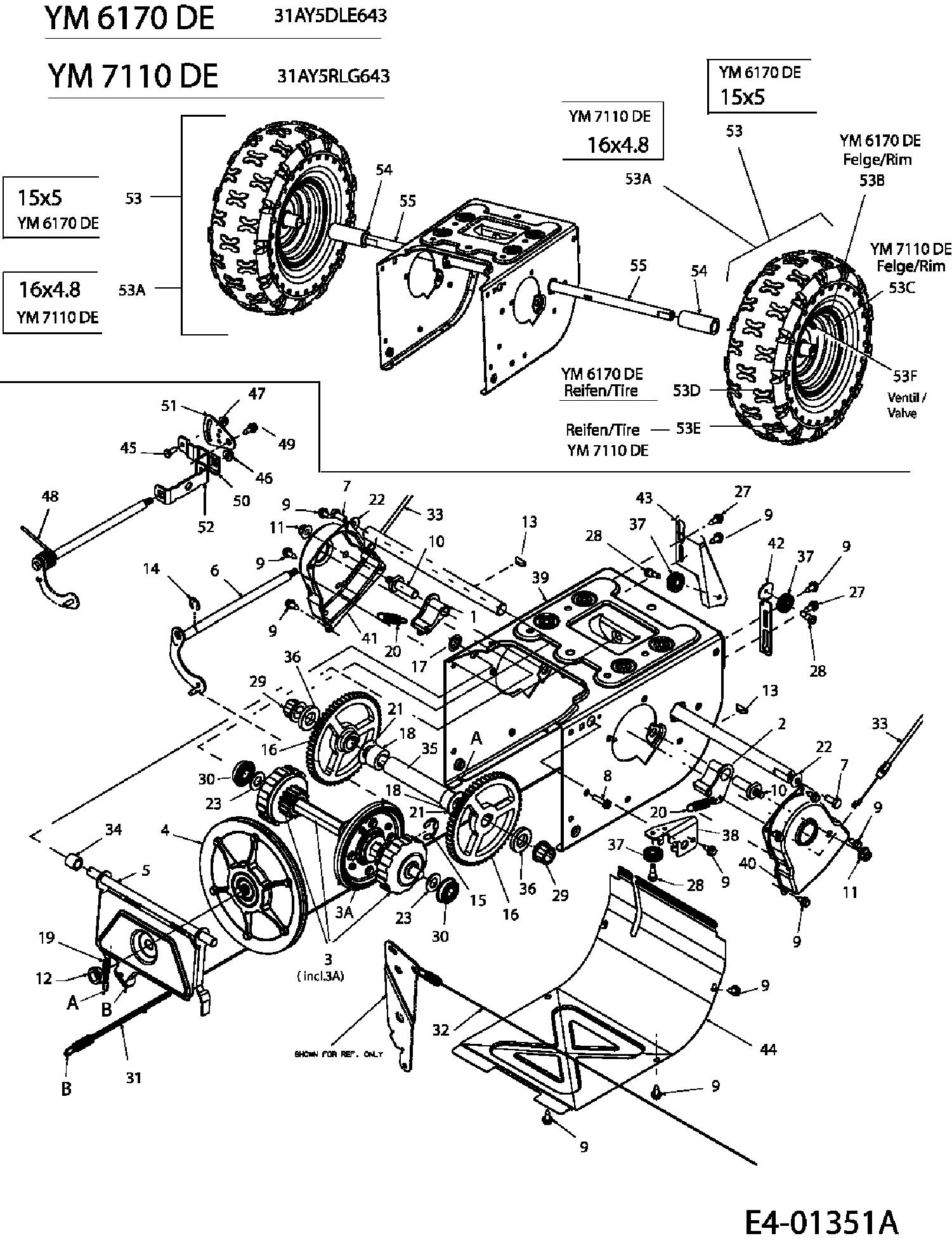

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04287	DOGG ASM:RH	N/A	POA
002	618-04288	DOGG ASM:LH	N/A	POA
003	618-04322	SHAFT ASM:HEX:FRICTION WHEEL	£292.86	Add
004	656-04025A	DISC ASM:WHL:FRICTION	£110.92	Add
005	684-04154	BRKT ASM: SUPT:FRCTN WHL BLACK	£48.02	Add
006	684-04156	SHIFT ASSY, ROD	£51.74	Add
007	710-0627	HEX SCREW	£3.32	Add
008	710-0788	NO LONGER AVAILABLE	N/A	POA
009	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
010	711-1268A	SHAFT ACTUATOR 711-1268	£17.10	Add
011	712-04065	NUT	£4.02	Add
012	712-0413	NUT:JAMLK:5/8-18:GR5:NYLON	£13.79	Add
013	714-0126	KEY-HI-PRO:3/16 x 3/4 DIA	£7.50	Add
014	716-0104	RETAINING RING 1650-001	£3.58	Add
015	716-0136	RING:RET:TYPE-E .875 DIA	£3.49	Add
016	717-04210	GEAR-56 TOOTH	£54.15	Add
017	726-0221	PUSH CAP	£3.51	Add
018	731-05297	SPACER: .76ID X .75 LG	£4.70	Add
019	732-0264	EXTENSION SPRING	£10.47	Add
020	732-04345	SPRING EXTENSION	£5.41	Add
021	736-0188	FI-WASHER	£6.15	Add
022	736-0242	BELL WASHER	£3.72	Add
023	736-0626	WASH:FLAT:.58 x 1.125 x .08:HT	£19.28	Add
027	738-04184A	SCR:SHLDR:.368x.113:TT:1/4-20	£5.41	Add
028	738-0924A	SCR:SHLDR:.340x.355xC:1/4-28	£2.90	Add
029	741-0245	BRG:HEX FLANGE x.75 ID	£9.33	Add
030	741-04076	SELF-ALIGNING BEARING	£16.52	Add
031	746-04229	CBL:CLU:DR:WHL:44.955 LG	£22.75	Add
032	746-04230	CBL:CLU:DR:AUGER:47.48 LG	£31.68	Add
033	746-0956	CABLE STEERING	£32.73	Add
034	748-0190	SPCR:.508 ID x.750 OD x.68	£4.00	Add
035	750-04474	TUBE:SUPT:AXLE	£28.02	Add
036	750-0767	DISTANCE BUSH	£5.10	Add
037	756-0625	cable idler wheel	£10.52	Add
038	790-00096637	GUIDE BRACKET, FRONT	£14.56	Add
039	790-00183637	DRIVE FRAME	N/A	POA
03A	684-04159	FRICTION WHEEL ASM 5.5 OD	£85.61	Add
040	790-00185691	RET:SHF:DR/ACTR LH BLACK JACK	£43.30	Add
041	790-00186691	SHAFT RETAINER RH	£43.30	Add
042	790-00206	BRACKET:GUIDE CABLE BLACK	£11.05	Add
043	790-00207	BRACKET:CLUTCH POWDER BLACK	£16.08	Add
044	790-00226	COVER:FRAME 500 S/T BL	N/A	POA
045	710-0751	BOLT 069	£3.39	Add
046	712-04063	FLANGED NUT	£4.20	Add
047	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
048	732-04311	TORSION SPRING:.750 IDx .968LG	£6.01	Add
049	738-04184A	SCR:SHLDR:.368x.113:TT:1/4-20	£5.41	Add
050	790-00156	SPACER-PULLEY	£10.01	Add
051	790-00217A	BRKT:PIVOT SELECTOR SPEED	£12.24	Add
052	790-00218	BRKT:SHIFT SELECT POWDER BLACK	£36.68	Add
053	634-04142A	WHEEL COMPL, 15x5 SNOW HOG	£126.63	Add
054	731-04873	SPCR:1.25 OD x.75 ID x 3.00 LG	£5.91	Add
055	738-04180	AXLE:.75 OD x 11.12 LG	£69.63	Add
53A	634-04141	WHL:COPL:16x4.8 SNOW HOG	N/A	POA
53B	634-04172AYY	RIM YM YELLOW	N/A	POA
53C	634-04173674	RIM YM YELLOW	N/A	POA
53D	734-1859	TIRE:SNWHG:15.0 x 5.0 x 6.0	£120.99	Add
53E	734-1530	TIRE-SNOW HOG:16.5 DIA x 4.8-8	£133.38	Add
53F	734-0255	VALVE - TUBELESS AIR	£7.02	Add
