MTD017195

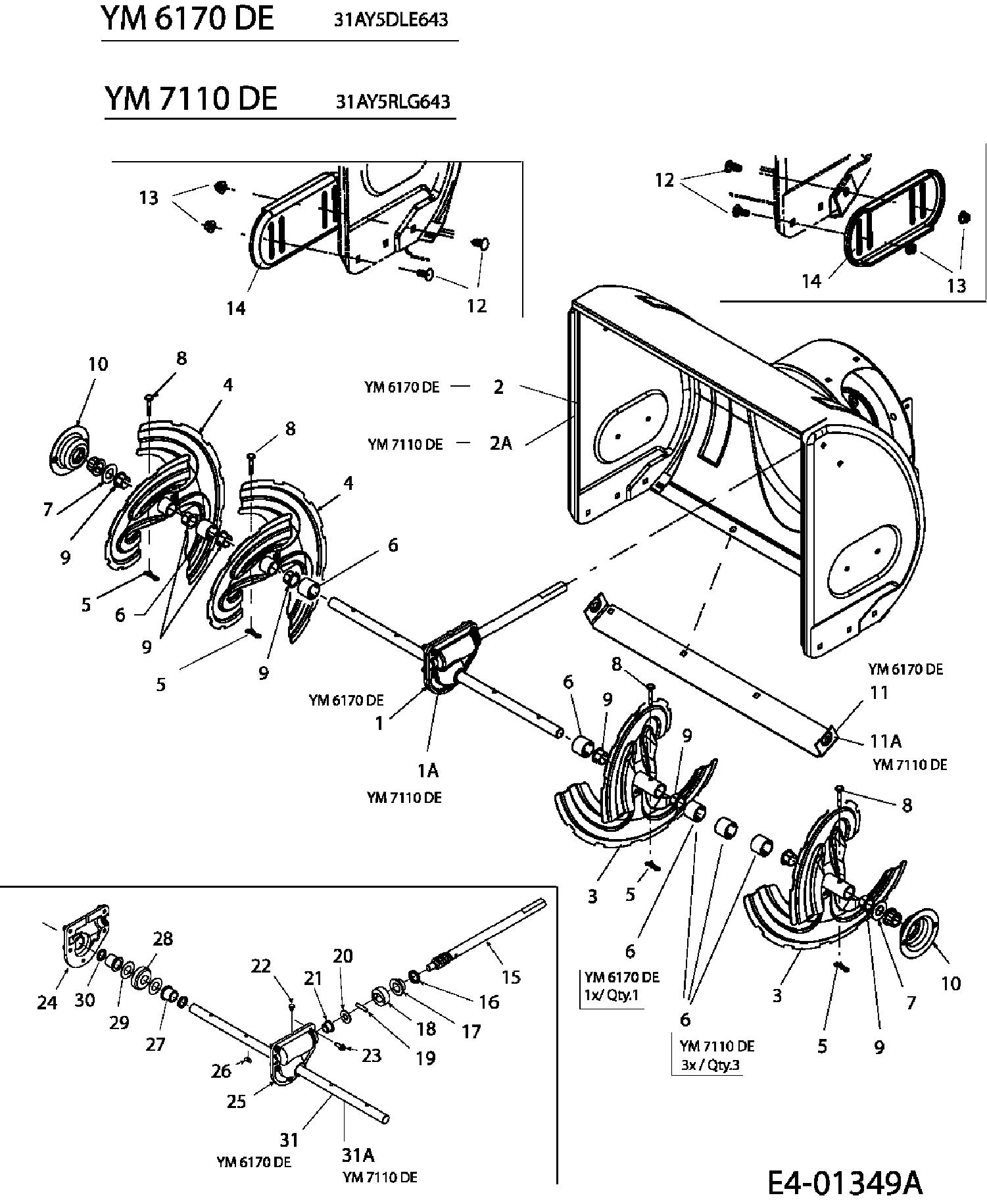

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017195

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04171 GEARBOX ASSY. 24" £177.78 Add
002 684-04069665 HOUSING ASSY 24" £223.72 Add
003 684-04107674 AUGER ASM LH YM YELLOW £82.40 Add
004 684-04108674 AUGER ASM-RH YM YELLOW £82.40 Add
005 714-04040 PIN-COTTER £3.70 Add
006 731-04870 SPACER:1.25ODx.75IDx1.00 LG £5.26 Add
007 736-0188 FI-WASHER £5.17 Add
008 738-04124 PIN SHEAR £5.24 Add
009 741-0493A Split Bearing, 3/4" £3.57 Add
010 790-00087A-S HOUSING, BEARING:1" HEX 790-00087A £21.84 Add
011 790-00120 PLT:SHAVE:2.25 x 23.66 LG N/A POA
012 710-0451 BOLT:CRG:5/16-18:.750 GR1 £4.22 Add
013 712-04063 NUT £3.54 Add
014 790-00091 SLIDE SHOE DELUXE £26.94 Add
015 717-04126 AXLE-FR £61.92 Add
016 721-0327 SEAL-OIL £15.90 Add
017 741-0662 BRG:HEX FLG:.628 ID:SPLIT £12.10 Add
018 718-04071 BUSH £16.29 Add
019 715-04021 PIN-DOWEL £5.54 Add
01A 618-04193 GEARBOX ASS AUGER 28" £168.35 Add
020 736-3084 WASHER FLAT £3.18 Add
021 741-0663 BRG:HEX FLG:.628 ID:SPLIT £9.26 Add
022 721-0325 GREASE PLUG £11.76 Add
023 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
024 618-0123 RH REDUCER HOUSING £46.01 Add
025 618-0124A LEFT HOUSING 618-0124 N/A POA
026 714-0161 KEY:HI-PRO:3/16 x 5/8 £12.95 Add
027 741-0661A FLANGE BEARING £20.62 Add
028 717-0528A GEAR-WORM £84.17 Add
029 736-0351 WASH:SHIM:.760x1.500X.030:HD £2.66 Add
02A 684-04073665 684-04073 FC? £171.07 Add
030 721-0179 OIL SEAL 3/4 ID £7.33 Add
031 711-04285 SHAFT AUGER 23.50" £65.71 Add
11A 790-00118 PLT:SHAVE:2.25 x 27.66 LG N/A POA
31A 711-04283 SHAFT AUGER 27.50" £68.59 Add
