MTD017086

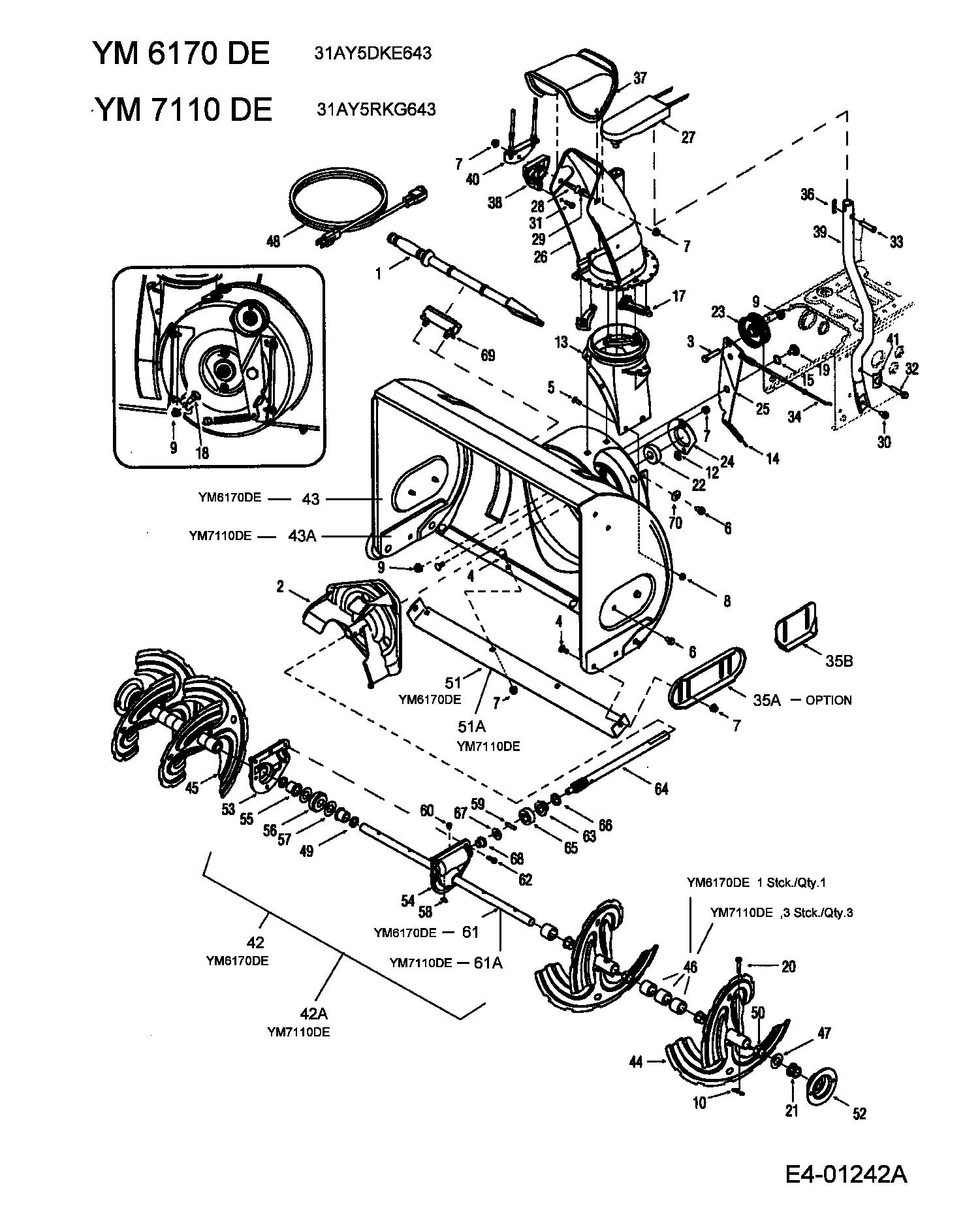

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	731-2643	CHUTE CLEAN-OUT TOOL	£21.68	Add
002	684-04057637	IMPELLER ASSEMBLY BLACK	£91.75	Add
003	710-0347	HEX SCR	£3.72	Add
004	710-0451	BOLT:CRG:5/16-18:.750 GR1	£3.70	Add
005	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add
006	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
007	712-04063	FLANGED NUT	£4.20	Add
008	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
009	712-04065	NUT	£4.02	Add
010	714-04040	PIN-COTTER	£4.38	Add
011	725-0157	NO LONGER AVAILABLE	N/A	POA
012	726-04012	NUT:PUSH-ON:.25 DIA	£4.80	Add
013	731-04705	CHUTE ADAPTER 5" DIA	£28.72	Add
014	732-0611	SPR:EXTN:.38 OD x 3.6 LG	£5.34	Add
015	736-0174	WASHER	£3.42	Add
016	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
017	731-04869	KEEPER, FLANGE	£9.83	Add
018	738-0143	SHOULDER BOLT	£12.24	Add
019	738-0281	SCR:SHLDR:.625 x.17:3/8-16	£8.44	Add
020	738-04124	PIN SHEAR	£7.48	Add
021	741-0245	BRG:HEX FLANGE x.75 ID	£9.33	Add
022	741-0309	BALL BRG:.75 ID x 1.85 OD FLNG	£45.20	Add
023	756-04224	IDLER PULLEY	£28.15	Add
024	790-00075	BEARING HOUSING 1.85 ID	£11.55	Add
025	790-00080637	BRACKET, AUGER IDLER W/BRAKE 790-00080	£27.72	Add
026	631-04132	NO LONGER AVAILABLE	N/A	POA
027	684-04116	CONTROL HEAD	£297.05	Add
028	710-0262	BOLT:CRG:5/16-18:1.50:GR2	£4.00	Add
029	710-04071	BOLT:CARR:5/16-18:1.000:CUSTOM	£2.79	Add
030	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
031	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
032	710-0909A	NO LONGER AVAILABLE	N/A	POA
033	711-0415	CLEVIS PIN	£5.28	Add
034	746-0897	CBL:CLU:X 44.75 AUGER	£33.14	Add
036	714-0104	PIN INTERNAL COTTER	£2.78	Add
037	731-04427A	UPPER CHUTE	£20.81	Add
038	731-1313C	CBL:GDE 731-1313	£15.86	Add
039	749-04155	TUBE, LEG STAND	N/A	POA
040	784-5594	BRKT:MT:CBL	£6.72	Add
041	784-5599	TAB-HANDLE	£11.29	Add
042	618-04171	GEARBOX ASSY. 24"	£199.08	Add
043	684-04069	HOUSING ASSY 24"	N/A	POA
044	684-04107	SPRL ASM:LH	N/A	POA
045	684-04108	SPRL ASM:RH	N/A	POA
046	731-04870	SPACER:1.25ODx.75IDx1.00 LG	£4.62	Add
047	736-0188	FI-WASHER	£6.15	Add
048	629-0071	CORD-EXTENSION	£49.42	Add
049	721-0179	OIL SEAL 3/4 ID	£8.19	Add
050	741-0493A	Split Bearing, 3/4"	£4.13	Add
051	790-00120	PLT:SHAVE:2.25 x 23.66 LG	N/A	POA
052	790-00087637	HOUSING-BRG 790-00087	£18.08	Add
053	618-0123	RH REDUCER HOUSING	£59.47	Add
054	618-0124A	LEFT HOUSING 618-0124	£59.47	Add
055	741-0661A	FLANGE BEARING	£12.11	Add
056	717-0528A	GEAR-WORM	£97.22	Add
057	736-0351	WASH:SHIM:.760x1.500X.030:HD	£2.97	Add
058	714-0161	KEY:HI-PRO:3/16 x 5/8	£15.59	Add
059	715-04021	PIN-DOWEL	£14.89	Add
060	721-0325	GREASE PLUG	£16.02	Add
061	711-04285	SHAFT AUGER 23.50"	£72.71	Add
062	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
063	741-0662	BRG:HEX FLG:.628 ID:SPLIT	£12.39	Add
064	717-04126	AXLE-FR	£73.85	Add
065	718-04071	BUSH	£13.90	Add
066	721-0327	SEAL-OIL	£10.83	Add
067	736-3084	WASHER FLAT	£3.77	Add
068	741-0663	BRG:HEX FLG:.628 ID:SPLIT	£12.48	Add
069	731-2635	MOUNTING BRACKET - CHUTE TOOL	£10.42	Add
070	736-0242	BELL WASHER	£3.72	Add
35A	790-00091	SLIDE SHOE DELUXE	£29.68	Add
35B	784-5580	SHOE:SLIDE:600 SNOW	N/A	POA
42A	618-04193	GEARBOX ASS AUGER 28"	£194.45	Add
43A	684-04073	HOUSING	N/A	POA
51A	790-00118	PLT:SHAVE:2.25 x 27.66 LG	N/A	POA
61A	711-04283	SHAFT AUGER 27.50"	£80.27	Add
