MTD017228

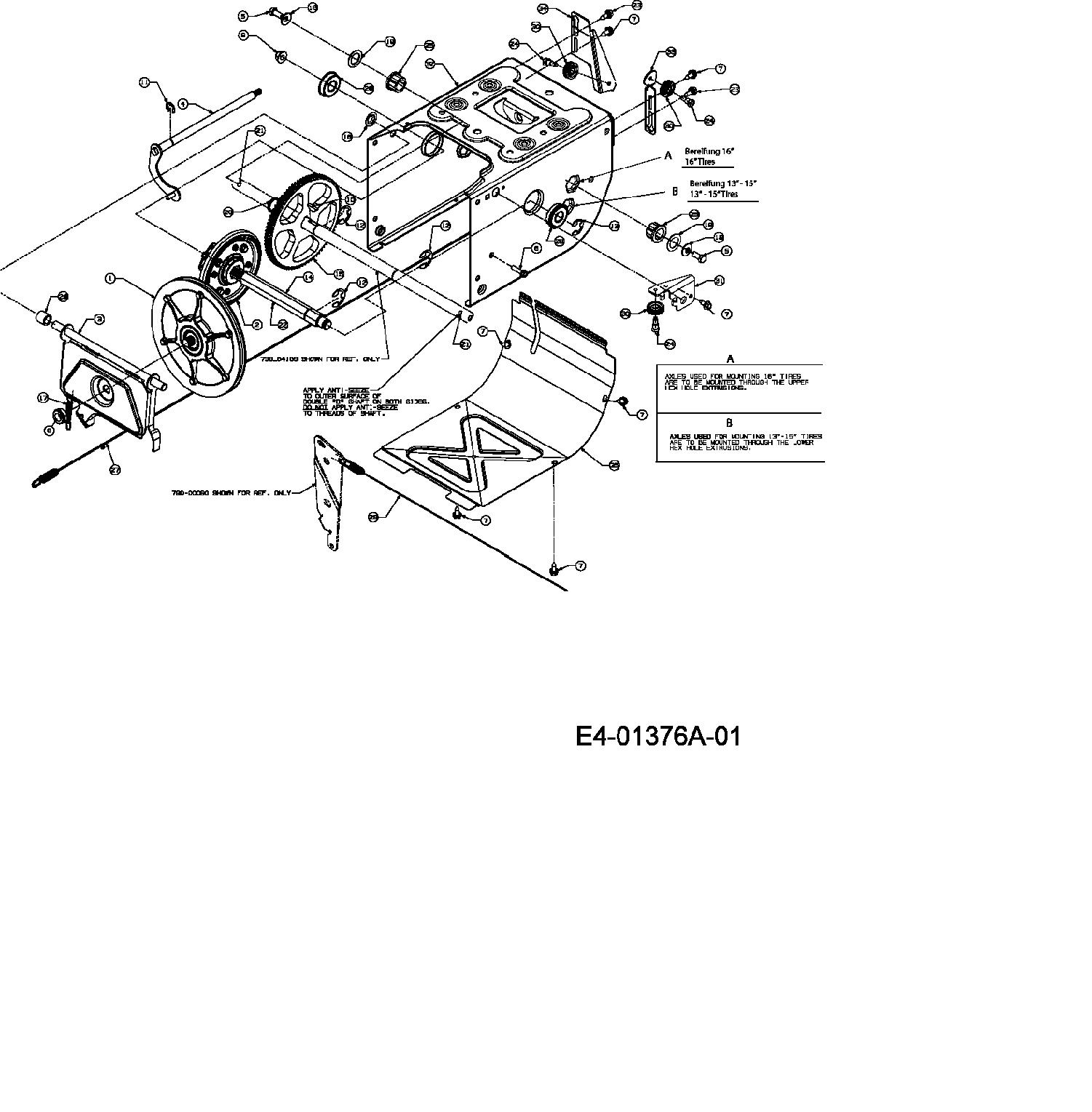

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017228

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 656-04025A DISC ASM:WHL:FRICTION £89.05 Add
002 684-04153 WHL ASM:FRCTN WHEEL £63.72 Add
003 684-04154 BRKT ASM: SUPT:FRCTN WHL BLACK £78.34 Add
004 684-04156 SHIFT ASSY, ROD £60.62 Add
005 710-0627 HEX SCREW £2.81 Add
006 710-0788 SCREW:TT:1/4-20:1.000:HXINDWSH N/A POA
007 710-1652 SCR:TT:1/4-20 x.625:HXINDWH £4.22 Add
008 712-04065 NUT UTV £1.60 Add
009 712-0413 NUT:JAMLK:5/8-18:GR5:NYLON £16.76 Add
010 714-0126 KEY-HI-PRO:3/16 x 3/4 DIA £7.37 Add
011 716-0104 RETAINING RING 1650-001 £3.17 Add
012 716-0136 RING:RET:TYPE-E .875 DIA £3.73 Add
013 716-0231 E RING (RED) £2.52 Add
014 717-04209 AXLE £80.45 Add
015 717-04230 GEAR:80 TOOTH £72.07 Add
016 726-0221 PUSH CAP £1.69 Add
017 732-0264 EXTENSION SPRING £8.76 Add
018 736-0242 BELL WASHER £3.14 Add
019 736-0287 Washer, Flat .78" x 1.25" x .062" 1540-31 £6.24 Add
020 736-04161 WASH:FLAT:.75 x 1.00 x .06 £5.26 Add
021 737-0288 GREASE-NEVER SEIZE (ANTI-SEIZE N/A POA
022 737-04027 N/A POA
023 738-04184A SCR:SHLDR:.368x.113:TT:1/4-20 £6.00 Add
024 738-0924A SCR:SHLDR:.340x.355xC:1/4-28 £3.11 Add
025 741-0245 BRG:HEX FLANGE x.75 ID £11.03 Add
026 741-0563 BRG:BALL:17x40x12:6203:DS £42.47 Add
027 746-04229 CBL:CLU:DR:WHL:44.955 LG £19.70 Add
028 746-04230 CBL:CLU:DR:AUGER:47.48 LG £7.83 Add
029 748-0190 SPCR:.508 ID x.750 OD x.68 £3.36 Add
030 756-0625 cable idler wheel £18.76 Add
031 790-00096 BRKT:GDE:AUGER CBL FRNT SUPT N/A POA
032 790-00180 FRAME FOR WHEEL DRIVE N/A POA
033 790-00206A BRKT:GDE:CBL:CLU:AUGER £17.41 Add
034 790-00207A CABLE GUIDE N/A POA
035 790-00226 COVER:FRAME 500 S/T BL N/A POA
