MTD017175

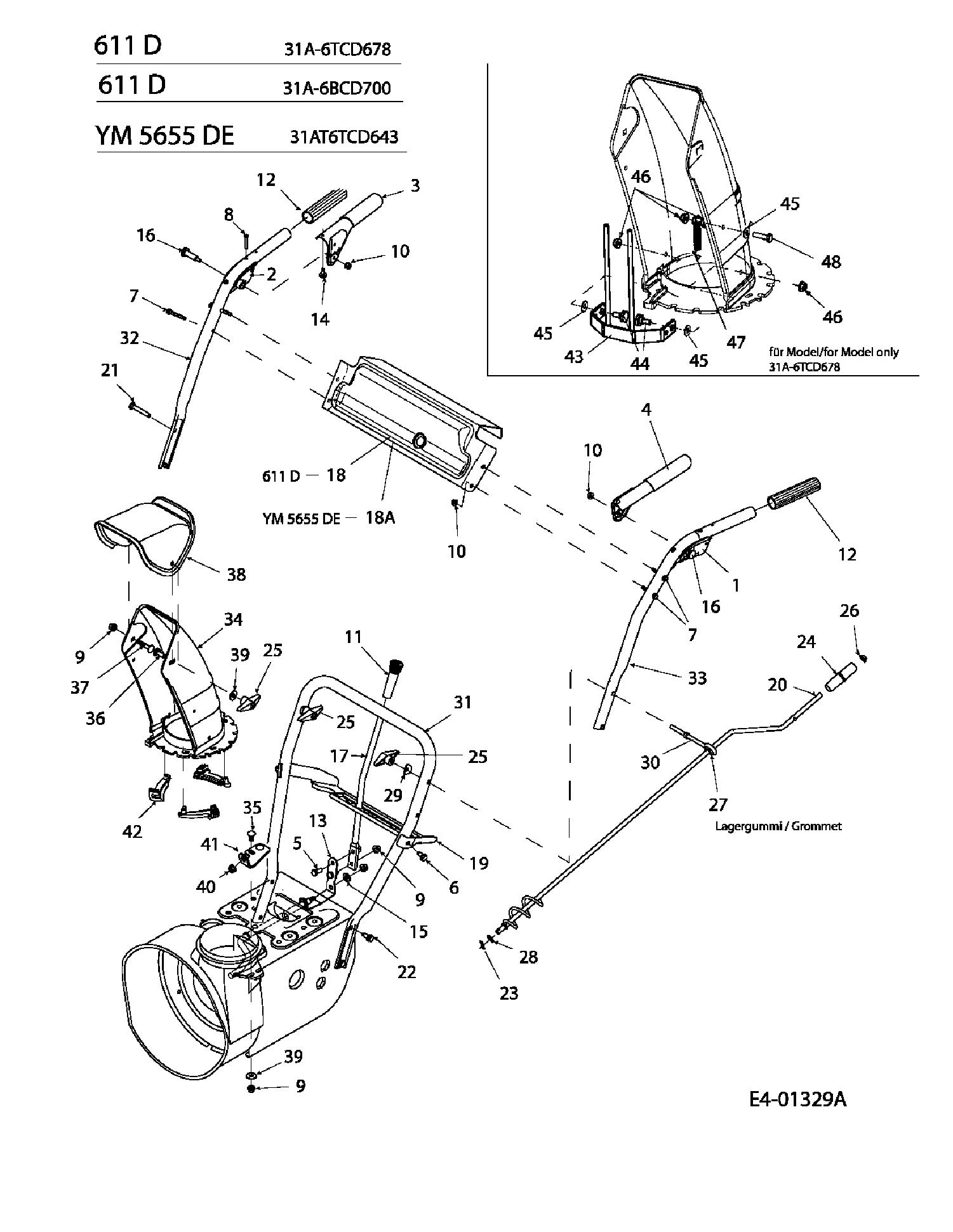

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017175

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-04785 HANDLE, CLUTCH LOCK, LH 631-04133 £7.55 Add
002 631-04134A HANDLE, CLUTCH LOCK, RH £10.18 Add
003 684-04106A HANDLE ASSY ENGAGEMENT RH £12.60 Add
004 684-04105A HANDLE ASSY ENGAGEMENT LH £12.60 Add
005 710-0376 SCREW HEX CAP 5/16 £2.17 Add
006 710-0604A SCREW £3.50 Add
007 710-0606 SCREW (RED) £2.82 Add
008 710-1233 SCR:MACH:#10-24:1.375:OVALCSK £7.37 Add
009 712-04063 NUT £3.54 Add
010 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
011 720-0223 GRIP £8.84 Add
012 720-0274 GRIP:1.0 ID x 5.0 LG £6.31 Add
013 732-04205 SPRING SHIFT LEVER £12.54 Add
014 735-0199A BUMPER-RUBBER:.62 OD x.22 THK £8.57 Add
015 736-0509 WASH:FLAT:SQ:.350x.720x.134 £3.89 Add
016 738-04122 SCR:SHLDR:.437x 1.345:1/4-20 £4.16 Add
017 747-04243 LEVER ASSY-SHIFT £41.01 Add
018 790-00100638 DASH PANEL £76.15 Add
019 790-00187638 PANEL:SELECT 5 SPDMTD RED £24.52 Add
020 684-04104 CRANK ASM-CHUTE £49.26 Add
021 710-0572 BOLT:CRG:5/16-18:2.50:GR1 £3.51 Add
022 710-1260A SCREW £3.37 Add
023 714-0104 PIN INTERNAL COTTER £2.36 Add
024 720-0201A KNOB:CRK:1.00 DIA x 3.2 CHUTE £17.11 Add
025 720-04072A HAND RELEASE £1.82 Add
026 726-0100 PUSH NUT 3/8 (RED) £2.75 Add
027 735-0234 GROM:RUBBER:.44 IDx.94 ODx.50 £7.66 Add
028 736-0185 FLAT WASHER (RED) £3.04 Add
029 736-0451 WASHER SADDLE £2.90 Add
030 747-04263 BOLT-EYE £10.11 Add
031 749-04138 LOWER HANDLE N/A POA
032 749-04141 HANDLE UPPER RH N/A POA
033 749-04142 HANDLE UPPER LH N/A POA
034 731-04912A LOWER CHUTE £41.86 Add
035 710-0276 SCREW:CRG:SPL:5/16-18:1.00 £3.21 Add
036 710-04071 BOLT:CARR:5/16-18:1.000:CUSTOM £2.97 Add
037 710-0451 BOLT:CRG:5/16-18:.750 GR1 £4.22 Add
038 731-04426A UPPER CHUTE £18.95 Add
039 736-0159 WASH .349 ID X .879 OD X .063 £3.89 Add
040 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
041 784-5647 BRACKET: CHUTE CRANK £20.32 Add
042 731-04869 KEEPER, FLANGE £6.93 Add
043 784-5649 CHUTE GUARD ASM:5" PLSTC EXPT. £76.55 Add
044 738-0255 BOLT SHOULDER £5.54 Add
045 736-0463 WASH:FLAT: .250 x .630 x .052 N/A POA
046 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
047 732-0118A EXTENSION SPRING:.36 OD £18.95 Add
048 710-0597 HEX SEMS SCREW £2.52 Add
18A 790-00100674 DASH PANEL £90.94 Add
19A 790-00187665 PANEL:SELECT 5 SPD YM GREEN £37.66 Add
