MTD016961

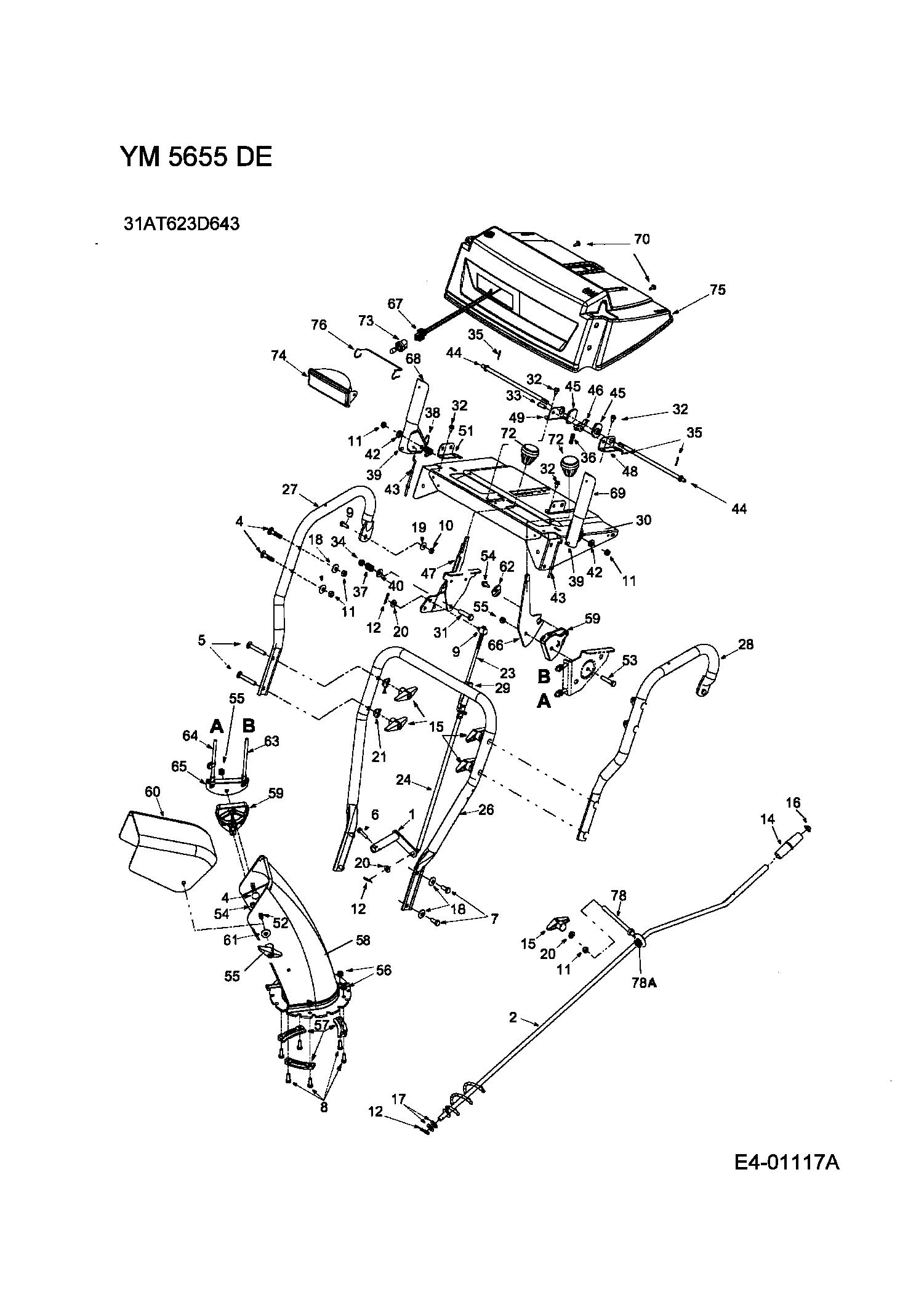

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016961

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 684-0008A SHIFT ARM ASSY. £55.43 Add
002 684-0022 ADJUSTER-HGT CRANK 30" £74.29 Add
004 710-04071 BOLT:CARR:5/16-18:1.000:CUSTOM £2.97 Add
005 710-0572 BOLT:CRG:5/16-18:2.50:GR1 £3.51 Add
006 710-0788 SCREW:TT:1/4-20:1.000:HXINDWSH N/A POA
007 710-3008 HEX BOLT £2.57 Add
008 710-3015 SCREW HEX CAP £2.82 Add
009 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
010 712-0287 NUT HEX £2.59 Add
011 712-0429 NUT HEX.INS L NUT £3.77 Add
012 714-0104 PIN INTERNAL COTTER £2.36 Add
014 720-0201A KNOB:CRK:1.00 DIA x 3.2 CHUTE £17.11 Add
015 720-04072A HAND RELEASE £1.82 Add
016 726-0100 PUSH NUT 3/8 (RED) £2.75 Add
017 736-0185 FLAT WASHER (RED) £3.04 Add
018 736-0242 BELL WASHER £3.14 Add
019 736-0270 BELL WASHER £3.30 Add
020 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
021 736-0451 WASHER SADDLE £2.90 Add
023 747-0620A ROD-SHIFT-UPPER £17.11 Add
024 747-0621 ROD-SHIFT-LOWER £28.53 Add
026 749-0951 HANDLE-LOWER £57.14 Add
027 749-0954 HANDLE RH £37.60 Add
028 749-0955 HANDLE-LH £46.63 Add
029 750-0963 SPACER £32.63 Add
030 684-0103 PANEL SUPPORT £106.76 Add
031 710-0459A TIE ROD BOLT £3.07 Add
032 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
033 711-0653 CLEVIS PIN £16.49 Add
034 712-0116 HEX NUT £3.12 Add
035 714-0507 COTTER PIN 3/32 DIA £2.65 Add
036 732-0145 COMPRESSION SPRING £17.70 Add
037 732-0193 SPR:CMPRS:.39 x.60 x.88 LG £4.03 Add
038 732-0746 SPRING-TORSION £4.48 Add
039 735-0199A BUMPER-RUBBER:.62 OD x.22 THK £8.57 Add
040 736-0105 BELL WASHER £2.82 Add
042 736-0509 WASH:FLAT:SQ:.350x.720x.134 £3.89 Add
043 746-0778 THREADED ROD £18.06 Add
044 747-0877 THREADED ROD £32.03 Add
045 748-0362 CAM HANDLE LOCK £5.75 Add
046 748-0363 USE 748-0291A £26.93 Add
047 784-5619A Traction handle 784-5619 £32.03 Add
048 784-5679 BRKT:HNDL SUPT:5/8:MIDDLE LH £7.34 Add
049 784-5680 BRKT:HNDL SUPT:5/8 MIDDLE RH £7.34 Add
050 784-5681 BRKT:HNDL SUPT:3/8:EXTERNAL LH £7.07 Add
051 784-5682 BRKT:HNDL SUPT:3/8:EXT. 3/8 £7.07 Add
052 710-0451 BOLT:CRG:5/16-18:.750 GR1 £4.22 Add
053 710-0805 SCRE.HHCS:5/16-18:1.50:GR5:STD £4.08 Add
054 710-0896 SCREW WITH WASHER ST £3.55 Add
055 720-04072A HAND RELEASE £1.82 Add
056 712-3027 LOCK NUT £2.38 Add
057 731-0851A FLANGE KEEPER 5.0 DIA £9.50 Add
058 731-1300B LOWER CHUTE £54.22 Add
059 731-1313C CBL:GDE 731-1313 £18.95 Add
060 731-04354 UPPER CHUTE £19.38 Add
061 736-0159 WASH .349 ID X .879 OD X .063 £3.89 Add
062 736-0506 WASHER £5.75 Add
063 746-0896 CABLE:CHUTE DEFL-CTRL X 46.5 £59.88 Add
064 746-0901 CABLE:CHUTE DEFL-CTRL X 46.5 £54.06 Add
065 784-5594 BRKT:MT:CBL £6.24 Add
066 784-5604 LEVER-CONTROL £29.89 Add
067 629-0059 WIRE HARNESS £61.70 Add
068 684-0036A HNDL ASM:ENGAG RH £46.73 Add
069 684-0037B HNDL ASM:ENGAG LH £60.24 Add
070 710-1003 SCR:B:#10-16:0.625:HXINDWSH:SP £3.57 Add
071 712-0271 NUT:SEMS:1/4-20 £2.68 Add
072 720-0232 KNOB:SHFT:1.60 OD X 1.56 £6.60 Add
073 725-1658 LAMPE HALOGENE £22.20 Add
074 725-1672 HOUSING:LAMP/LENS ASSY:#890 £56.22 Add
075 731-04613 N/A POA
076 747-1136 RETAINING BRACKET: HEADLAMP £16.82 Add
078 747-0697 BOLT:EYE:.70 DIA CHUTE CRANK £27.33 Add
78A 735-0234 GROM:RUBBER:.44 IDx.94 ODx.50 £7.66 Add
