MTD016962

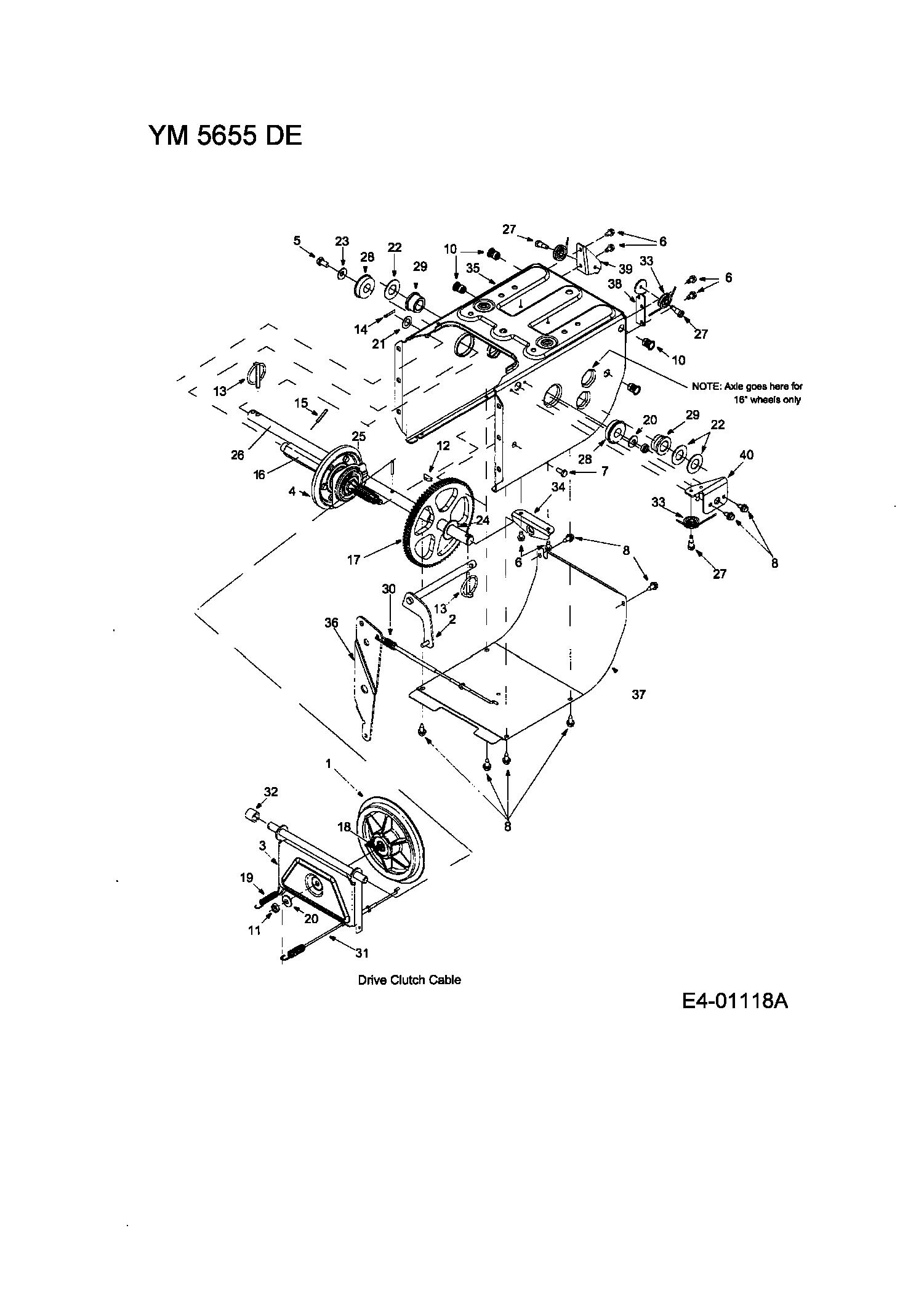

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016962

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 656-0012A DISC ASSY-WHEEL 656-0009 £161.54 Add
002 684-0013B ROD SHIFT, WHEEL DRIVE £27.99 Add
003 684-0021 BRACKET ASSY-SUPPORT £69.11 Add
004 684-0042C WHEEL-FRICTION COMP 684-0042 £80.41 Add
005 710-0538 HEX L BOLT £3.07 Add
006 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
007 710-0809 SCR:TT:1/4-20:1.250:HXINDWSH £2.94 Add
008 710-1652 SCR:TT:1/4-20 x.625:HXINDWH £4.22 Add
009 712-0116 HEX NUT £3.12 Add
010 712-0703A INSERT-NUT 5/16- £16.43 Add
011 712-0711 NUT £2.59 Add
012 714-0126 KEY-HI-PRO:3/16 x 3/4 DIA £7.37 Add
013 714-0143 PIN-CLICK:.245 DIA x 1.406 £12.66 Add
014 714-0474 PIN (RED) £2.71 Add
015 715-0249 PIN-SPRING ROLL 5/32X1.12" £8.84 Add
016 717-04094 7-TOOTH SHAFT 717-1444 £91.15 Add
017 717-1445 GEAR £99.79 Add
018 721-0263 LOCTITE #271 N/A POA
019 732-0264 EXTENSION SPRING £8.76 Add
020 736-0105 BELL WASHER £2.82 Add
021 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
022 736-0188 FI-WASHER £5.17 Add
023 736-0242 BELL WASHER £3.14 Add
024 736-0351 WASH:SHIM:.760x1.500X.030:HD £2.66 Add
025 737-0170 SPEZ.-SCHM.'MITTEL F.GETR N/A POA
026 738-0869 AXLE .750X22.2 £72.49 Add
027 738-0924 HEX SCREW £3.11 Add
028 741-0563 BRG:BALL:17x40x12:6203:DS £42.47 Add
029 741-04026 BEARING-FLANGE £17.06 Add
030 746-0897 CBL:CLU:X 44.75 AUGER £29.52 Add
031 746-0898B CABLE-THROTTLE CONTROL B&S £36.04 Add
032 748-0190 SPCR:.508 ID x.750 OD x.68 £3.36 Add
033 756-0625 cable idler wheel £18.76 Add
034 784-5590 BRACKET £41.16 Add
035 784-5630B N/A POA
036 784-5632A AUGER IDLER ARM £19.89 Add
037 784-5638A N/A POA
038 784-5687A BRACKET-GUIDE-AUGER:LH £17.41 Add
039 784-5688 BRACKET DRIVE CABLE ROLLER:RH £7.66 Add
040 784-5689A BRKT:GUIDE:FRONT SUPPORT N/A POA
