MTD017269

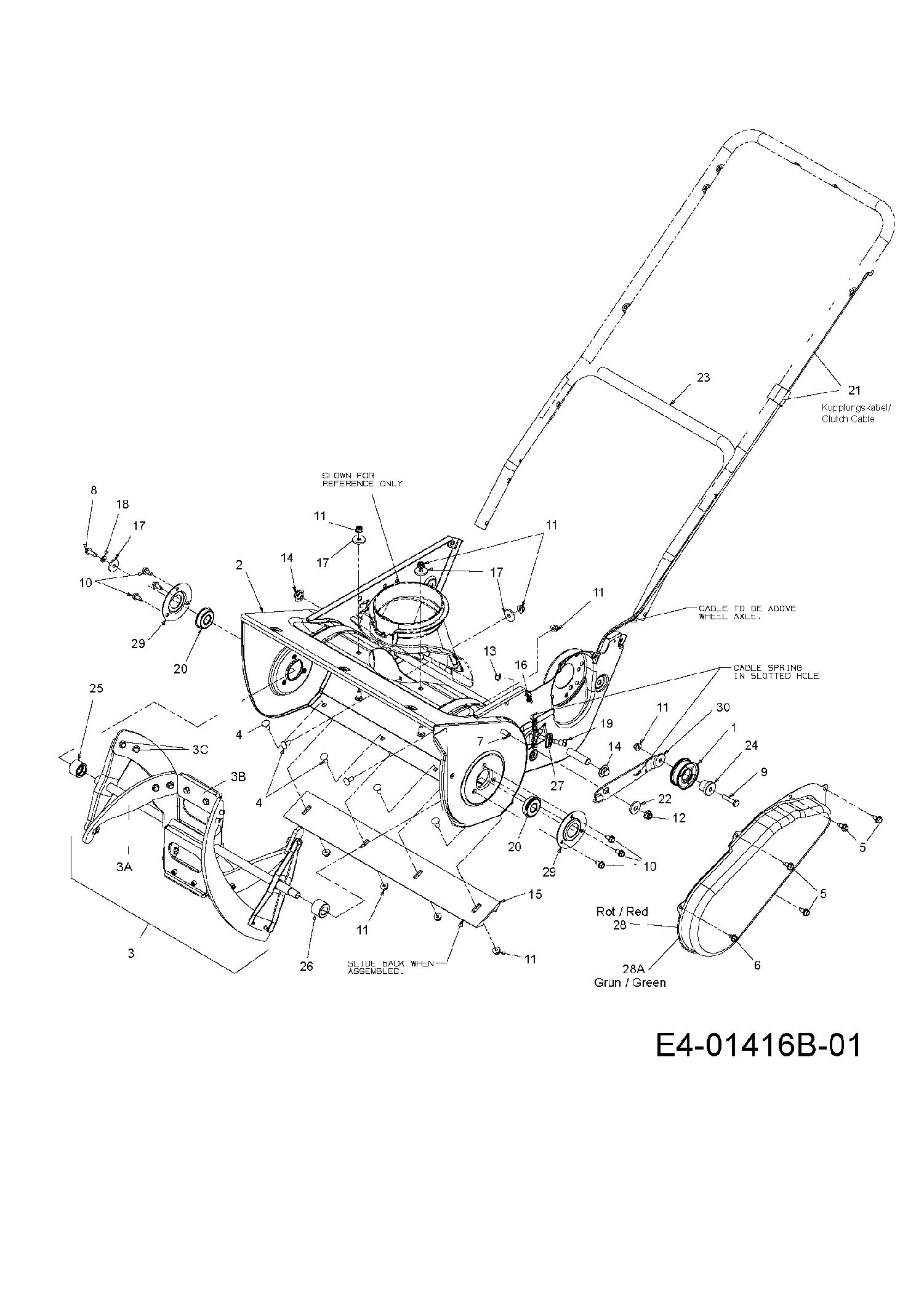

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017269

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 684-04168 PULLEY-IDLER-FLAT £37.37 Add
002 684-04227 HOUSING ASM:AUGER MTD RED N/A POA
003 684-04253 AUGER ASM-21" £169.20 Add
004 710-0134 BOLT £2.57 Add
005 710-0896 SCREW WITH WASHER ST £3.55 Add
006 710-0653 HEX SCREW, 1/4-20 X 3/8" £3.61 Add
007 710-3008 HEX BOLT £2.57 Add
008 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
009 710-0106 HHCS:1/4-20:1.25:GR5:SPEC £3.93 Add
010 710-1005 SCR:B:1/4-14:0.500:HXINDWSH N/A POA
011 712-04064 NUT FLGLK 1/4 20 GRF NYLON £5.56 Add
012 712-04063 NUT £3.54 Add
013 712-0896 NUT:HEXLK:1/4-28:GR2:NYLON £4.67 Add
014 726-0299 CAP £6.61 Add
015 731-1033 PLATE-SHAVE £46.40 Add
016 732-0357A EXTENSION SPRING £8.02 Add
017 736-0176 WASHER:FLAT:.265 x .938 x .120 £4.51 Add
018 736-0329 L. WASHER £1.28 Add
019 738-0924A SCR:SHLDR:.340x.355xC:1/4-28 £3.11 Add
020 741-04188A BEARING £45.68 Add
021 746-04237 CABLE: CLUTCH SNOWTHROWER £19.37 Add
022 748-0234 SHOULDER SPACER £4.57 Add
023 749-04114 LOWER HANDLE £39.23 Add
024 750-04571 SPCR:SHLDR:.260 x .785 x .538 £7.99 Add
025 750-04758 SPACER AUGER .766 LG £18.04 Add
026 750-04757 SPACER AUGER .837 £18.39 Add
027 756-0625 cable idler wheel £18.76 Add
028 790-00045A-R BELT COVER £61.24 Add
029 790-00249 CUP:BRG:SINGLE STAGE £27.56 Add
030 790-00238A BRACKET:ADJ CABLE POWDER BLACK £53.61 Add
03A 735-04032 SPIRAL-CRESCENT £10.14 Add
03B 735-04033 RUBBER PADDLE £10.63 Add
03C 710-0896 SCREW WITH WASHER ST £3.55 Add
28A 790-00045A-G COVER-BELT YARD-MAN GRE £60.80 Add
