MTD016981

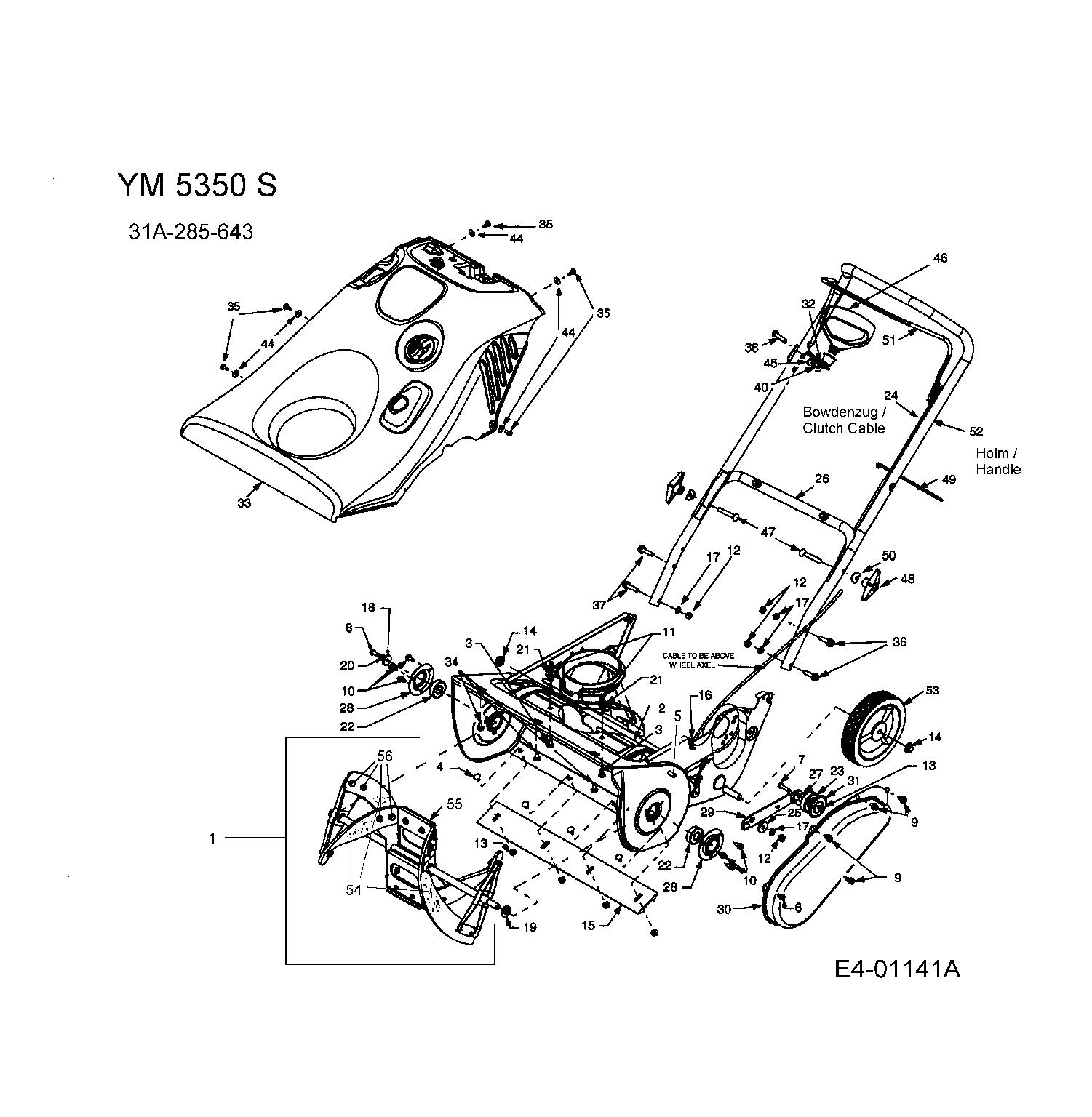

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016981

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 684-04027A AUGER ASSY. COMP. 784-5485 £198.13 Add
002 684-04028 AUGER HOUSING ASSY. N/A POA
003 710-0134 BOLT £2.57 Add
004 710-0167 SCR:CRG:1/4-20:.50: £2.68 Add
005 710-0323 SCREW £4.33 Add
006 710-0352 SCR:B-1/4-14:.375:HWINDWSH £7.37 Add
007 710-0597 HEX SEMS SCREW £2.52 Add
008 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
009 710-0896 SCREW WITH WASHER ST £3.55 Add
010 710-1005 SCR:B:1/4-14:0.500:HXINDWSH N/A POA
011 712-0324 HEX. INS L NUT £1.36 Add
012 712-3010 NUT £2.35 Add
013 712-3027 LOCK NUT £2.38 Add
014 726-0299 CAP £6.61 Add
015 731-1033 PLATE-SHAVE £46.40 Add
016 732-0357A EXTENSION SPRING £8.02 Add
017 736-0119 LOCK WASHER 5/16 £2.81 Add
018 736-0176 WASHER:FLAT:.265 x .938 x .120 £4.51 Add
019 736-0326 FLAT WASHER £2.86 Add
020 736-0329 L. WASHER £1.28 Add
021 736-3090 FL.WASHER:.260 X .720 X .060 £3.11 Add
022 741-0600 BRG BALL 17x40x12 6203 DS £15.34 Add
023 741-0919B BALL BEARING £23.93 Add
024 746-04091 CABLE-CLUTCH £39.23 Add
025 748-0234 SHOULDER SPACER £4.57 Add
026 749-04114 LOWER HANDLE £39.23 Add
027 750-04230A FLANGE SPACER 750-04230 N/A POA
028 784-5174 CAP-BRG ADJ N/A POA
029 790-00039 IDLER BRACKET £19.14 Add
030 790-00045638 PROTECTION-V-BELT £39.04 Add
031 790-00062 WASHER-BEARING £7.07 Add
032 684-0178 BRKT ASM-GRIP £34.76 Add
033 684-04032 CVR:ENG N/A POA
034 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.15 Add
035 710-1003 SCR:B:#10-16:0.625:HXINDWSH:SP £3.57 Add
036 710-1090 HEX BOLT 5/16-18 X 1-1/4" LG. £7.66 Add
037 710-1882 SCREW-SHLD £10.27 Add
038 710-3083 SCREW-SHLD N/A POA
040 712-0429 NUT HEX.INS L NUT £3.77 Add
044 736-0400 FLAT WASHER .194x.620Dx.63TH £3.18 Add
045 736-0451 WASHER SADDLE £2.90 Add
046 7510009636 GRIP £38.26 Add
047 710-0487 SCREW:CRG:5/16-18:2.00:GR5 £4.82 Add
048 720-04072A HAND RELEASE £1.82 Add
049 710-0157 HHCS:5/16-24:.75:GR5:STD £3.38 Add
050 736-0451 WASHER SADDLE £2.90 Add
051 747-04159 BAIL:OPER £26.86 Add
052 749-04106 HANDLE UPPER £85.82 Add
053 734-04062 WHL. ASM COMP £25.95 Add
054 735-04032 SPIRAL-CRESCENT £10.14 Add
055 735-04033 RUBBER PADDLE £10.63 Add
056 710-0896 SCREW WITH WASHER ST £3.55 Add
30A 790-00045662 PROTECTION-V-BELT N/A POA
30B 790-00045665 PROTECTION-V-BELT N/A POA
