MTD016396

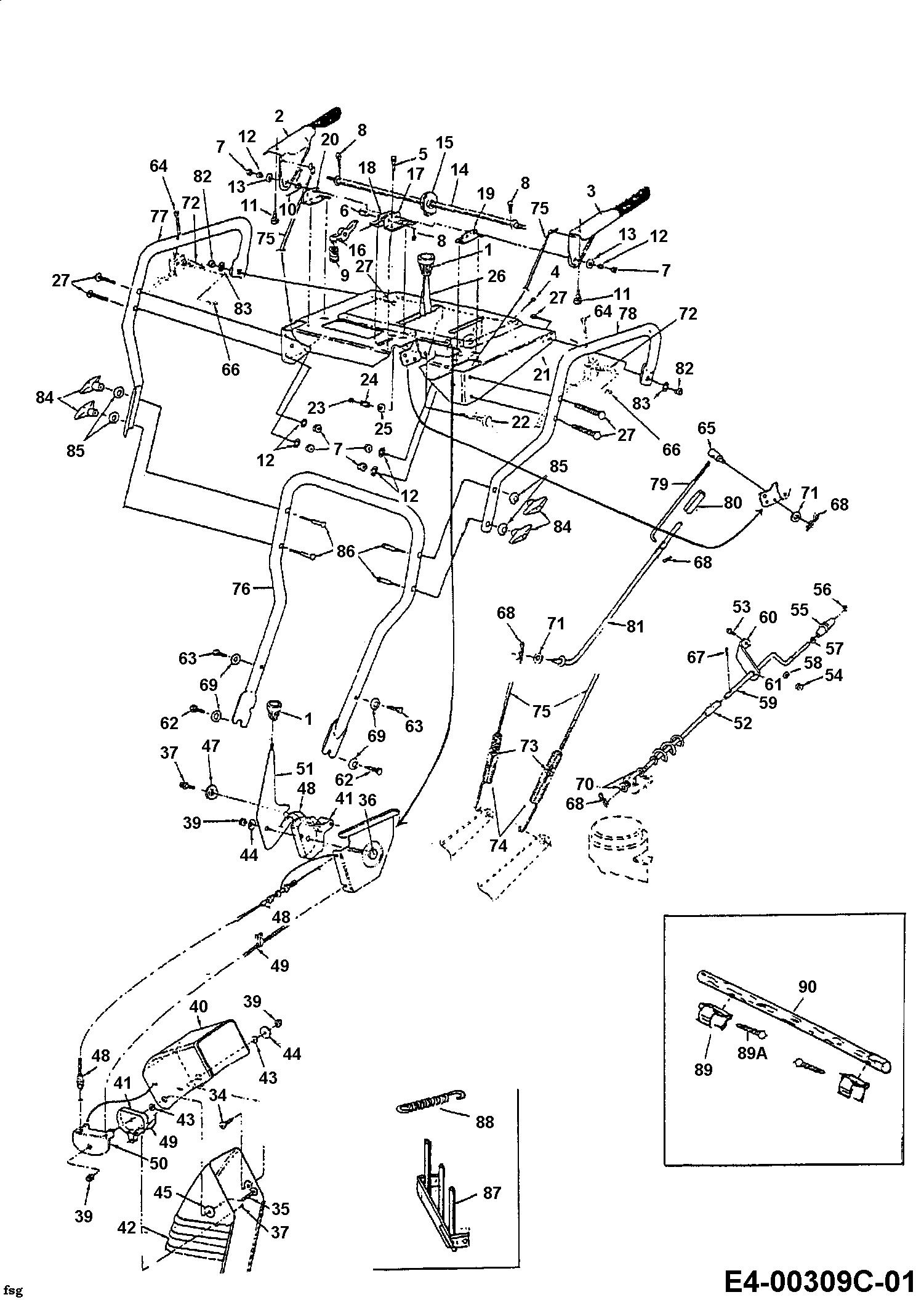

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016396

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 720-0232 KNOB:SHFT:1.60 OD X 1.56 £6.60 Add
002 705-5218 FORK,LIFT £37.61 Add
003 705-5219 FORK,LIFT £37.61 Add
004 710-1388 SCREW £2.74 Add
005 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
006 711-0653 CLEVIS PIN £16.49 Add
007 712-3010 NUT £2.35 Add
008 714-0507 COTTER PIN 3/32 DIA £2.65 Add
009 732-0145 COMPRESSION SPRING £17.70 Add
010 732-0746 SPRING-TORSION £4.48 Add
011 735-0199A BUMPER-RUBBER:.62 OD x.22 THK £8.57 Add
012 736-0119 LOCK WASHER 5/16 £2.81 Add
013 736-0509 WASH:FLAT:SQ:.350x.720x.134 £3.89 Add
014 747-0877 THREADED ROD £32.03 Add
015 748-0362 CAM HANDLE LOCK £5.75 Add
016 748-0363 USE 748-0291A £26.93 Add
017 784-5679 BRKT:HNDL SUPT:5/8:MIDDLE LH £7.34 Add
018 784-5680 BRKT:HNDL SUPT:5/8 MIDDLE RH £7.34 Add
019 784-5681 BRKT:HNDL SUPT:3/8:EXTERNAL LH £7.07 Add
020 784-5682 BRKT:HNDL SUPT:3/8:EXT. 3/8 £7.07 Add
021 684-0102 PANEL SUPPORT N/A POA
022 710-0459A TIE ROD BOLT £3.07 Add
023 712-0116 HEX NUT £3.12 Add
024 732-0193 SPR:CMPRS:.39 x.60 x.88 LG £4.03 Add
025 736-0105 BELL WASHER £2.82 Add
026 784-5619A Traction handle 784-5619 £32.03 Add
027 710-0458 BOLT:CRG:5/16-18:1.75:GR1 N/A POA
034 710-0276 SCREW:CRG:SPL:5/16-18:1.00 £3.21 Add
035 710-0458 BOLT:CRG:5/16-18:1.75:GR1 N/A POA
036 710-0805 SCRE.HHCS:5/16-18:1.50:GR5:STD £4.08 Add
037 710-0896 SCREW WITH WASHER ST £3.55 Add
039 712-0429 NUT HEX.INS L NUT £3.77 Add
040 731-0846C UPPER CHUTE £64.45 Add
041 731-1313C CBL:GDE 731-1313 £18.95 Add
042 731-0903D LOWER CHUTE £103.25 Add
043 731-1319 CHUTE PIVOT SPACER £3.23 Add
044 736-0159 WASH .349 ID X .879 OD X .063 £3.89 Add
045 736-0231 WASHER FLAT £2.82 Add
047 736-0506 WASHER £5.75 Add
048 746-0902 CABLE:CHUTE DEFL-CTRL X 66.0 £41.98 Add
049 746-0903 CABLE W/CLIP-CHUTE £41.98 Add
050 784-5594 BRKT:MT:CBL £6.24 Add
051 784-5604 LEVER-CONTROL £29.89 Add
052 684-0053B CHUTE CRANK ASSY. PLATED £86.27 Add
053 710-3015 SCREW HEX CAP £2.82 Add
054 712-0287 NUT HEX £2.59 Add
055 720-0201A KNOB:CRK:1.00 DIA x 3.2 CHUTE £17.11 Add
056 726-0100 PUSH NUT 3/8 (RED) £2.75 Add
057 736-0117 WASH:FLAT:.385 x.620 x.033 £2.79 Add
058 736-0270 BELL WASHER £3.30 Add
059 747-0624 CRANK, CHUTE £34.92 Add
060 705-5266 BRACKET: CHUTE CRANK £19.40 Add
061 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
062 710-0216 HHCS:3/8-16:.75:GR5:STD £2.95 Add
063 710-0347 HEX SCR £3.14 Add
064 710-1625 Screw £5.34 Add
065 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
066 712-0127 NUT-FLAT WELD £7.85 Add
067 714-0101 PIN:COT:INT:.08 X 1.42 £3.57 Add
068 714-0104 PIN INTERNAL COTTER £2.36 Add
069 736-0105 BELL WASHER £2.82 Add
070 736-0185 FLAT WASHER (RED) £3.04 Add
071 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
072 746-0950A FORK,LIFT £33.97 Add
073 712-0324 HEX. INS L NUT £1.36 Add
074 732-0184 SPRING, GOVERNOR £37.61 Add
075 746-0952 CABLE CLUTCH DRIVE £38.53 Add
076 749-0991 Lower handle N/A POA
077 749-0990A HANDLE UPPER RIGHT £70.63 Add
078 749-0989A HANDLE UPPER LEFT £70.63 Add
079 747-0997 UPPER SHIFT ROD £65.88 Add
080 750-0963 SPACER £32.63 Add
081 747-0983 LOWER SHIFT ROD N/A POA
082 712-0287 NUT HEX £2.59 Add
083 736-0270 BELL WASHER £3.30 Add
084 720-04072A HAND RELEASE £1.82 Add
085 736-0242 BELL WASHER £3.14 Add
086 710-0572 BOLT:CRG:5/16-18:2.50:GR1 £3.51 Add
087 784-5192 PROTECTOR £24.52 Add
088 732-0264 EXTENSION SPRING £8.76 Add
089 727-0276 CLAMP £25.34 Add
090 739-0156 WOODSTICK £12.70 Add
89A 712-0291 LOCK-NUT £2.35 Add
