MTD016391

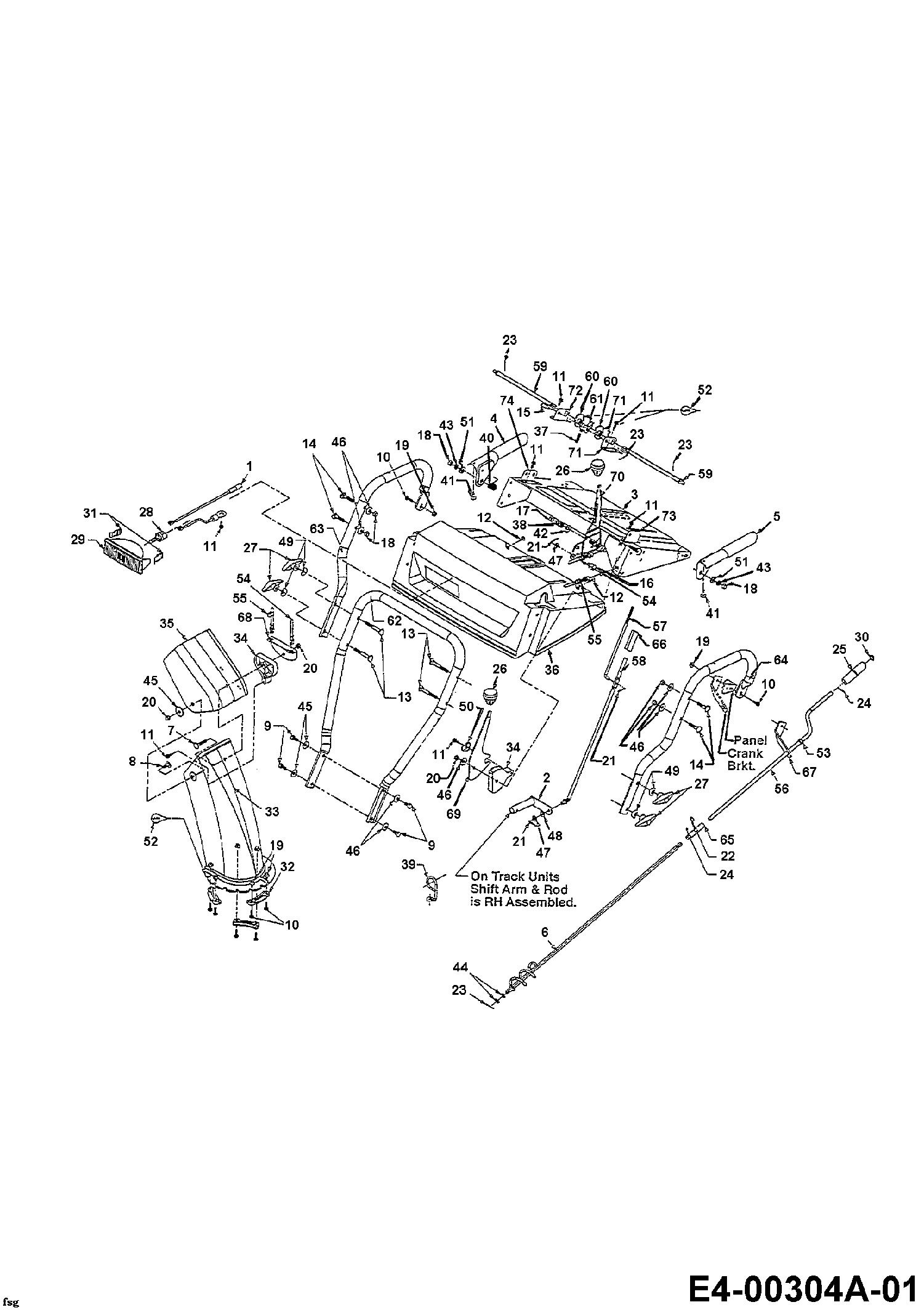

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016391

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 629-0059 WIRE HARNESS £61.70 Add
002 684-0008 ARM ASSY- SHIFT £38.02 Add
003 684-0032A COVER £84.67 Add
004 684-0036 HNDL ASM:ENGAG RH £35.02 Add
005 684-0037 HNDL ASM:ENGAG LH £35.02 Add
006 684-0053B CHUTE CRANK ASSY. PLATED £86.27 Add
007 710-0262 BOLT:CRG:5/16-18:1.50:GR2 £5.40 Add
008 710-0451 BOLT:CRG:5/16-18:.750 GR1 £4.22 Add
009 710-3008 HEX BOLT £2.57 Add
010 710-3015 SCREW HEX CAP £2.82 Add
011 710-0896 SCREW WITH WASHER ST £3.55 Add
012 710-1003 SCR:B:#10-16:0.625:HXINDWSH:SP £3.57 Add
013 710-1178 BOLT, CARR 5/16-18x2" LG £3.89 Add
014 710-1250 BOLT:CRG:5/16-18:1.5:CRVD £2.68 Add
015 711-0653 CLEVIS PIN £16.49 Add
016 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
017 712-0116 HEX NUT £3.12 Add
018 712-3010 NUT £2.35 Add
019 712-3027 LOCK NUT £2.38 Add
020 712-3009 NUT:HEXLK:5/16-18:GRB:CTRLK £3.41 Add
021 714-0104 PIN INTERNAL COTTER £2.36 Add
022 714-0145 R CLIP £2.36 Add
023 714-0507 COTTER PIN 3/32 DIA £2.65 Add
024 715-0138 USE 715-0247 £25.63 Add
025 720-0201A KNOB:CRK:1.00 DIA x 3.2 CHUTE £17.11 Add
026 720-0232 KNOB:SHFT:1.60 OD X 1.56 £6.60 Add
027 720-04072A HAND RELEASE £1.82 Add
028 725-1658 LAMPE HALOGENE £22.20 Add
029 725-1672 HOUSING:LAMP/LENS ASSY:#890 £56.22 Add
030 726-0100 PUSH NUT 3/8 (RED) £2.75 Add
031 726-0321A CLIP-SPRING £3.89 Add
032 731-0851A FLANGE KEEPER 5.0 DIA £9.50 Add
033 731-1300A CHUTE-LOWER £63.29 Add
034 731-1313C CBL:GDE 731-1313 £18.95 Add
035 731-1320 UPPER CHUTE £42.38 Add
036 731-1545B PANEL-HANDLE-YELLOW £147.80 Add
037 732-0145 COMPRESSION SPRING £17.70 Add
038 732-0193 SPR:CMPRS:.39 x.60 x.88 LG £4.03 Add
039 732-0705 WCABLE CONTROL WIRE £9.96 Add
040 732-0746 SPRING-TORSION £4.48 Add
041 735-0199A BUMPER-RUBBER:.62 OD x.22 THK £8.57 Add
042 736-0105 BELL WASHER £2.82 Add
043 736-0119 LOCK WASHER 5/16 £2.81 Add
044 736-0140 WASH:FLAT:.385 x.62 x.063 £3.89 Add
045 736-0231 WASHER FLAT £2.82 Add
046 736-0242 BELL WASHER £3.14 Add
047 736-0264 WASH:FLAT:.330 x.630x.0635 £2.87 Add
048 736-0271 WASHER £2.68 Add
049 736-0451 WASHER SADDLE £2.90 Add
050 736-0506 WASHER £5.75 Add
051 736-0509 WASH:FLAT:SQ:.350x.720x.134 £3.89 Add
052 737-0300A GREASE £42.88 Add
053 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
054 746-0896 CABLE:CHUTE DEFL-CTRL X 46.5 £59.88 Add
055 746-0901 CABLE:CHUTE DEFL-CTRL X 46.5 £54.06 Add
056 747-0737 CRANK-CHUTE-UPPER £61.93 Add
057 747-0620A ROD-SHIFT-UPPER £17.11 Add
058 747-0621 ROD-SHIFT-LOWER £28.53 Add
059 747-0877 THREADED ROD £32.03 Add
060 748-0362 CAM HANDLE LOCK £5.75 Add
061 748-0363 USE 748-0291A £26.93 Add
062 749-0951 HANDLE-LOWER £57.14 Add
063 749-0954 HANDLE RH £37.60 Add
064 749-0955 HANDLE-LH £46.63 Add
065 750-0785 SPACER .382 I.D. X .50 O.D. X 1.12 £35.25 Add
066 750-0963 SPACER £32.63 Add
067 784-0309 FORK,LIFT £12.38 Add
068 784-5594 BRKT:MT:CBL £6.24 Add
069 784-5604 LEVER-CONTROL £29.89 Add
070 784-5619A Traction handle 784-5619 £32.03 Add
071 784-5679 BRKT:HNDL SUPT:5/8:MIDDLE LH £7.34 Add
072 784-5680 BRKT:HNDL SUPT:5/8 MIDDLE RH £7.34 Add
073 784-5681 BRKT:HNDL SUPT:3/8:EXTERNAL LH £7.07 Add
074 784-5682 BRKT:HNDL SUPT:3/8:EXT. 3/8 £7.07 Add
