MTD016804

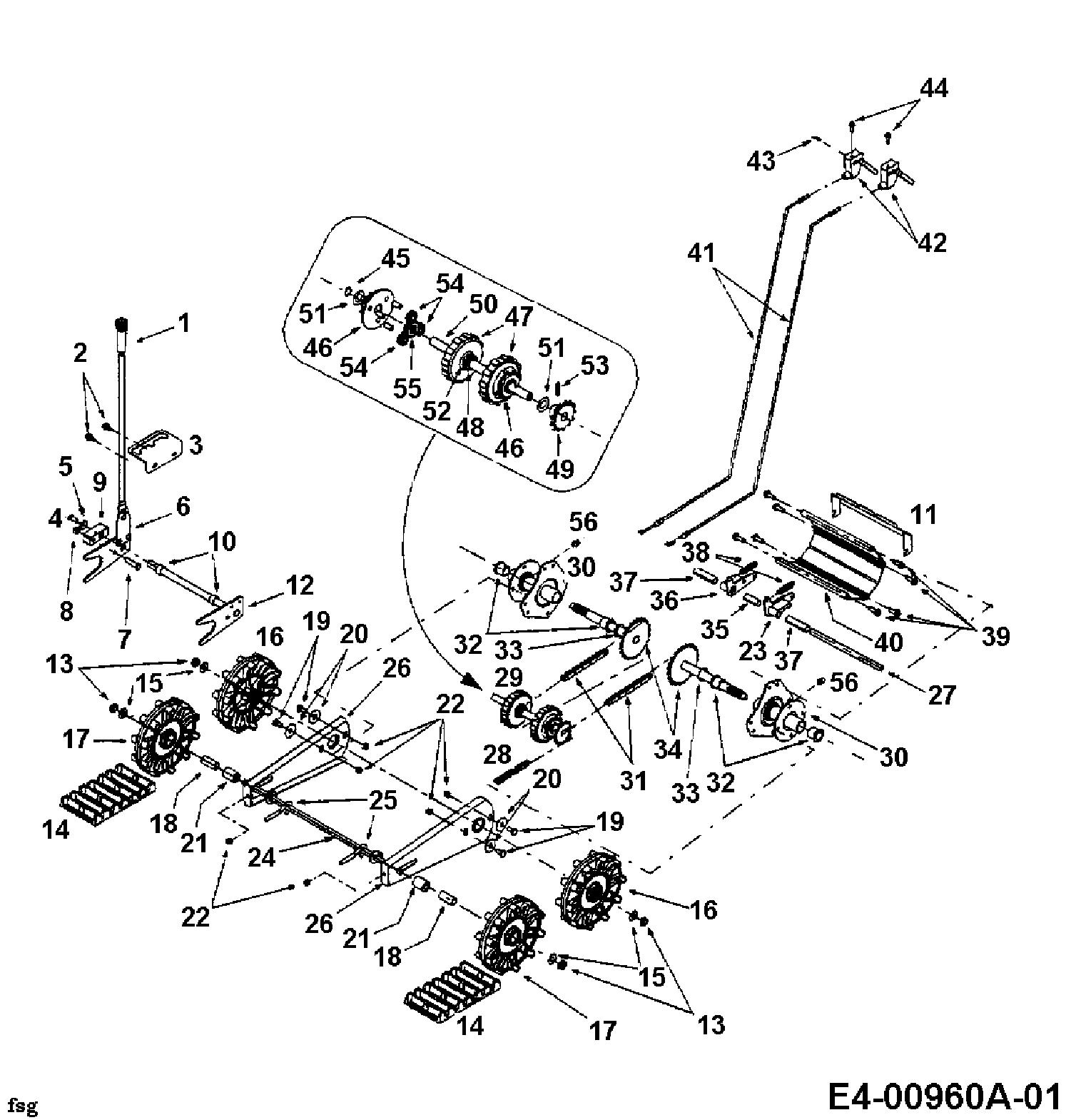

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016804

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 720-0223 GRIP £8.84 Add
002 710-0604A SCREW £3.50 Add
003 784-5642 PLATE-TRACK LOCKOUT £8.15 Add
004 710-0157 HHCS:5/16-24:.75:GR5:STD £3.38 Add
005 736-0242 BELL WASHER £3.14 Add
006 684-0038 HANDLE ASSY-LOCK £65.00 Add
007 710-0459A TIE ROD BOLT £3.07 Add
008 712-0214 HEX NUT £3.00 Add
009 748-0353A SHAFT-LIFT DRIVE £17.88 Add
010 750-0547 SPACER £6.77 Add
011 784-5609 BRACKET-STEERING £11.95 Add
012 684-0009 ROD ASSY-TRACK PIVOT £34.04 Add
013 712-0346 HEX LOCK JAM NUT, 1/2-20 THD. N/A POA
014 731-1292 TRACK-SNOW £208.02 Add
015 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.67 Add
016 731-1538A Wheel £56.84 Add
017 631-0032 DRIVE WHEEL £50.63 Add
018 750-0995 DISTANCE BUSH £12.47 Add
019 738-0140 SHLD SCREW £5.06 Add
020 736-0406 WASH:F:.442 IDX 1.38 ODX.060HT £3.89 Add
021 750-0909 SPACER £16.82 Add
022 712-0429 NUT HEX.INS L NUT £3.77 Add
023 618-0044 PLT:LATCH £44.14 Add
024 684-0024 AXLE ASSY-IDLER £46.77 Add
025 710-1231 BOLT EYE £21.37 Add
026 784-5639 PLATE £25.07 Add
027 711-0911 SHAFT-ACTUATOR £53.04 Add
028 713-0233 #41 CHAIN £43.21 Add
029 618-0169A SHAFT ASSEMBLY £231.51 Add
030 684-0154 HUB-TRACK ASSY. £76.32 Add
031 713-0437 #420 CHAIN 1/2 PITCH £36.24 Add
032 741-0339 BEARING, HEX FLANGE £11.39 Add
033 736-0287 FLAT WASHER .78" X 1.25" X .062" £6.63 Add
034 611-0053 AXLE ASM:TRACK:.750 SERR £80.52 Add
035 750-0904 SPACER £16.65 Add
036 618-0043 PLT:LATCH £44.14 Add
037 750-0903 SPACER £7.99 Add
038 732-0209 EXTENSION SPRING £7.19 Add
039 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
040 719-0295A COVER N/A POA
041 746-0948 STEERING CABLE £39.04 Add
042 746-0950A FORK,LIFT £33.97 Add
043 712-0127 NUT-FLAT WELD £7.85 Add
044 710-1233 SCR:MACH:#10-24:1.375:OVALCSK £7.37 Add
045 716-0114 RING:RET:.56 DIA SHAFT £2.82 Add
046 618-0576A CARRIER ASSY. 618-0046 £206.57 Add
047 717-1211B Governor gear 717-1211 £79.69 Add
048 716-0115 RING:RET:.56 DIA SHAFT £3.12 Add
049 713-0414 GEAR ASSY-PINION £42.64 Add
050 711-0912 DRIVE SHAFT £148.23 Add
051 736-0502 WASH:FL:.580x1.060x.020:HD £17.78 Add
052 736-0773 WASH:FLAT:16x22x1 DIN 988 £2.68 Add
053 715-0120 PIN:ROLL:3/16 DIA x 1.1 LG 715-0150 £8.51 Add
054 717-1209A GEAR-12T 717-1209 £18.63 Add
055 717-1210A WASHER THRUST 717-1210 £17.41 Add
056 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.00 Add
