MTD016393

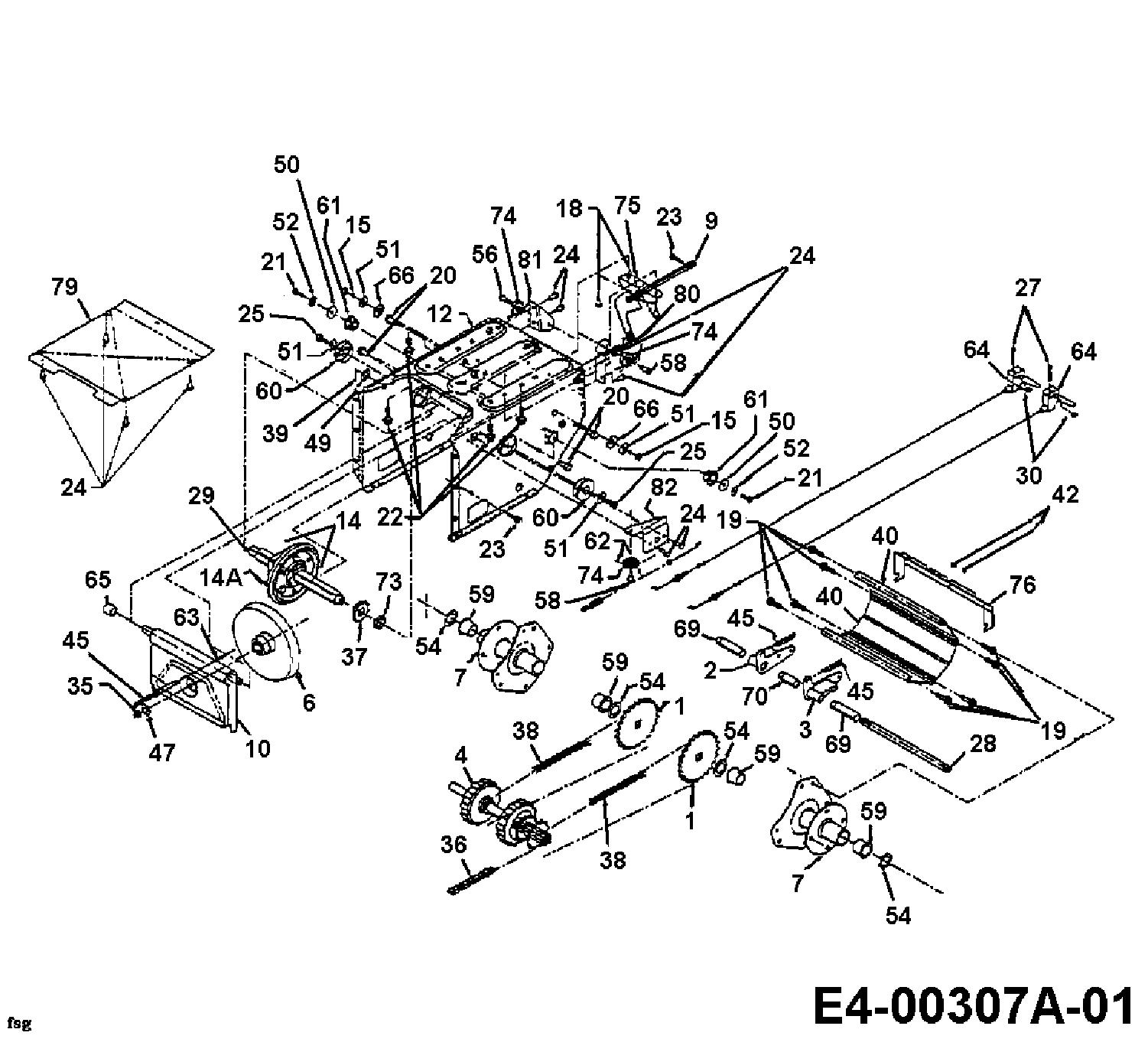

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016393

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 611-0053 AXLE ASM:TRACK:.750 SERR £80.52 Add
002 618-0043 PLT:LATCH £44.14 Add
003 618-0044 PLT:LATCH £44.14 Add
004 618-0169A SHAFT ASSEMBLY £231.51 Add
006 656-0012A DISC ASSY-WHEEL 656-0009 £161.54 Add
007 683-0024 HUB ASSY-TRACK £36.92 Add
009 684-0014B ROD SHIFT ASSY. N/A POA
010 684-0021 BRACKET ASSY-SUPPORT £69.11 Add
012 684-0031 FRAME ASSY. £174.28 Add
014 684-0042A WHEEL-ASSY FRICTION £111.34 Add
015 710-3008 HEX BOLT £2.57 Add
018 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
019 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.54 Add
020 710-0604A SCREW £3.50 Add
021 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
022 710-0654A SCR:TTSEMS:3/8-16:1.000:HXLWSH £4.80 Add
023 710-0788 SCREW:TT:1/4-20:1.000:HXINDWSH N/A POA
024 710-0896 SCREW WITH WASHER ST £3.55 Add
025 710-1087 SCREW-HEX £2.35 Add
027 710-1233 SCR:MACH:#10-24:1.375:OVALCSK £7.37 Add
028 711-0911 SHAFT-ACTUATOR £53.04 Add
029 711-1042 DRIVE SHAFT £109.37 Add
030 712-0127 NUT-FLAT WELD £7.85 Add
035 712-0711 NUT £2.59 Add
036 713-0233 #41 CHAIN £43.21 Add
037 713-0413 SPROCKET, 10T £16.10 Add
038 713-0437 #420 CHAIN 1/2 PITCH £36.24 Add
039 714-0474 PIN (RED) £2.71 Add
040 719-0295A COVER N/A POA
042 725-0157 Nylon Tie 726-0178 £1.54 Add
045 732-0209 EXTENSION SPRING £7.19 Add
046 732-0264 EXTENSION SPRING £8.76 Add
047 736-0105 BELL WASHER £2.82 Add
049 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
050 736-0176 WASHER:FLAT:.265 x .938 x .120 £4.51 Add
051 736-0242 BELL WASHER £3.14 Add
052 736-0270 BELL WASHER £3.30 Add
054 736-0287 Washer, Flat .78" x 1.25" x .062" 1540-31 £6.24 Add
056 737-0170 SPEZ.-SCHM.'MITTEL F.GETR N/A POA
058 738-0924 HEX SCREW £3.11 Add
059 741-0339 BEARING, HEX FLANGE £11.39 Add
060 741-0563 BRG:BALL:17x40x12:6203:DS £42.47 Add
061 741-0597 BEARING-HEX FLANGE £9.60 Add
062 746-0897 CBL:CLU:X 44.75 AUGER £29.52 Add
063 746-0898 DRIVE CABLE £20.98 Add
064 753-0707 BOWDEN CABLE 746-0900 N/A POA
065 748-0190 SPCR:.508 ID x.750 OD x.68 £3.36 Add
066 748-0234 SHOULDER SPACER £4.57 Add
069 750-0903 SPACER £7.99 Add
070 750-0904 SPACER £16.65 Add
073 750-0997 SPACER 0.675X1X0.23 £22.90 Add
074 756-0625 cable idler wheel £18.76 Add
075 784-5590 BRACKET £41.16 Add
076 784-5609 BRACKET-STEERING £11.95 Add
079 784-5648 COVER-FRAME £16.49 Add
080 784-5687 BRACKET N/A POA
081 784-5688 BRACKET DRIVE CABLE ROLLER:RH £7.66 Add
082 784-5689 BRACKET £5.03 Add
14A 735-0243B WHEEL, RUBBER FRICTION 735-0243 £34.55 Add
