MTD016378

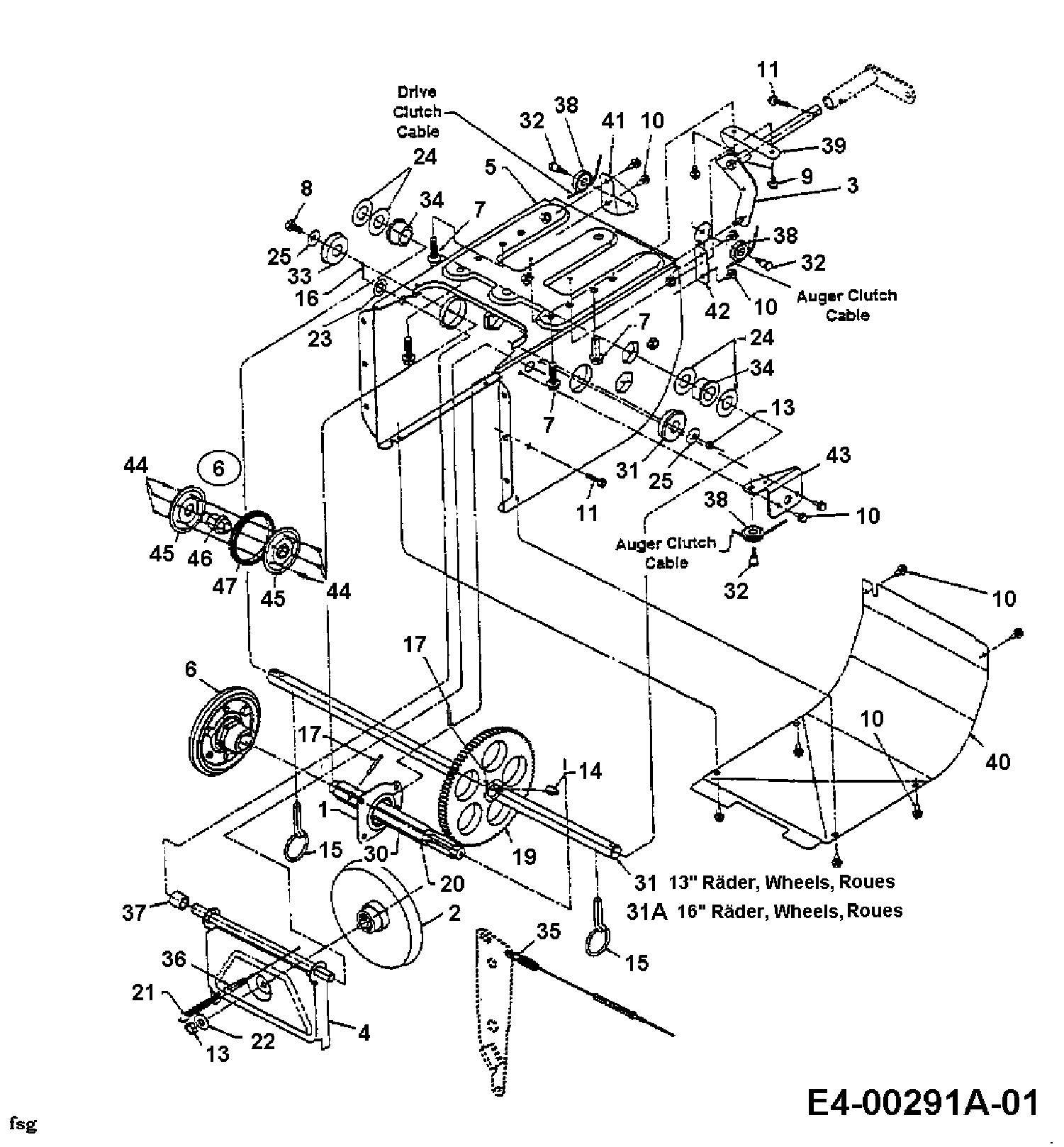

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016378

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-0063 BEARING ASSY-WHEEL £70.96 Add
002 656-0012A DISC ASSY-WHEEL 656-0009 £161.54 Add
003 684-0013 USE 984-0013A-0637 N/A POA
004 684-0021 BRACKET ASSY-SUPPORT £69.11 Add
005 684-0030 PLATE-BATTERY £74.22 Add
006 684-0042A WHEEL-ASSY FRICTION £111.34 Add
007 710-0654A SCR:TTSEMS:3/8-16:1.000:HXLWSH £4.80 Add
009 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
010 710-0896 SCREW WITH WASHER ST £3.55 Add
011 710-0788 SCREW:TT:1/4-20:1.000:HXINDWSH N/A POA
013 712-0711 NUT £2.59 Add
014 714-0126 KEY-HI-PRO:3/16 x 3/4 DIA £7.37 Add
015 714-0143 PIN-CLICK:.245 DIA x 1.406 £12.66 Add
016 714-0474 PIN (RED) £2.71 Add
017 715-0249 PIN-SPRING ROLL 5/32X1.12" £8.84 Add
019 717-1445 GEAR £99.79 Add
020 717-04094 7-TOOTH SHAFT 717-1444 £91.15 Add
021 732-0264 EXTENSION SPRING £8.76 Add
022 736-0105 BELL WASHER £2.82 Add
023 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
024 736-0188 FI-WASHER £5.17 Add
025 736-0242 BELL WASHER £3.14 Add
031 738-0869 AXLE .750X22.2 £72.49 Add
032 738-0924 HEX SCREW £3.11 Add
033 741-0563 BRG:BALL:17x40x12:6203:DS £42.47 Add
034 741-0598 FLANGE BEARING £8.93 Add
035 746-0897 CBL:CLU:X 44.75 AUGER £29.52 Add
036 746-0898 DRIVE CABLE £20.98 Add
037 748-0190 SPCR:.508 ID x.750 OD x.68 £3.36 Add
038 756-0625 cable idler wheel £18.76 Add
039 784-5590 BRACKET £41.16 Add
040 784-5638 COVER-FRAME N/A POA
041 784-5688 BRACKET DRIVE CABLE ROLLER:RH £7.66 Add
042 784-5687 BRACKET N/A POA
043 784-5689 BRACKET £5.03 Add
044 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
045 684-0042C WHEEL-FRICTION COMP 684-0042 £80.41 Add
046 684-0042C WHEEL-FRICTION COMP 684-0042 £80.41 Add
047 735-0243B WHEEL, RUBBER FRICTION 735-0243 £34.55 Add
31A 738-0830 shaft £92.85 Add
