MTD016377

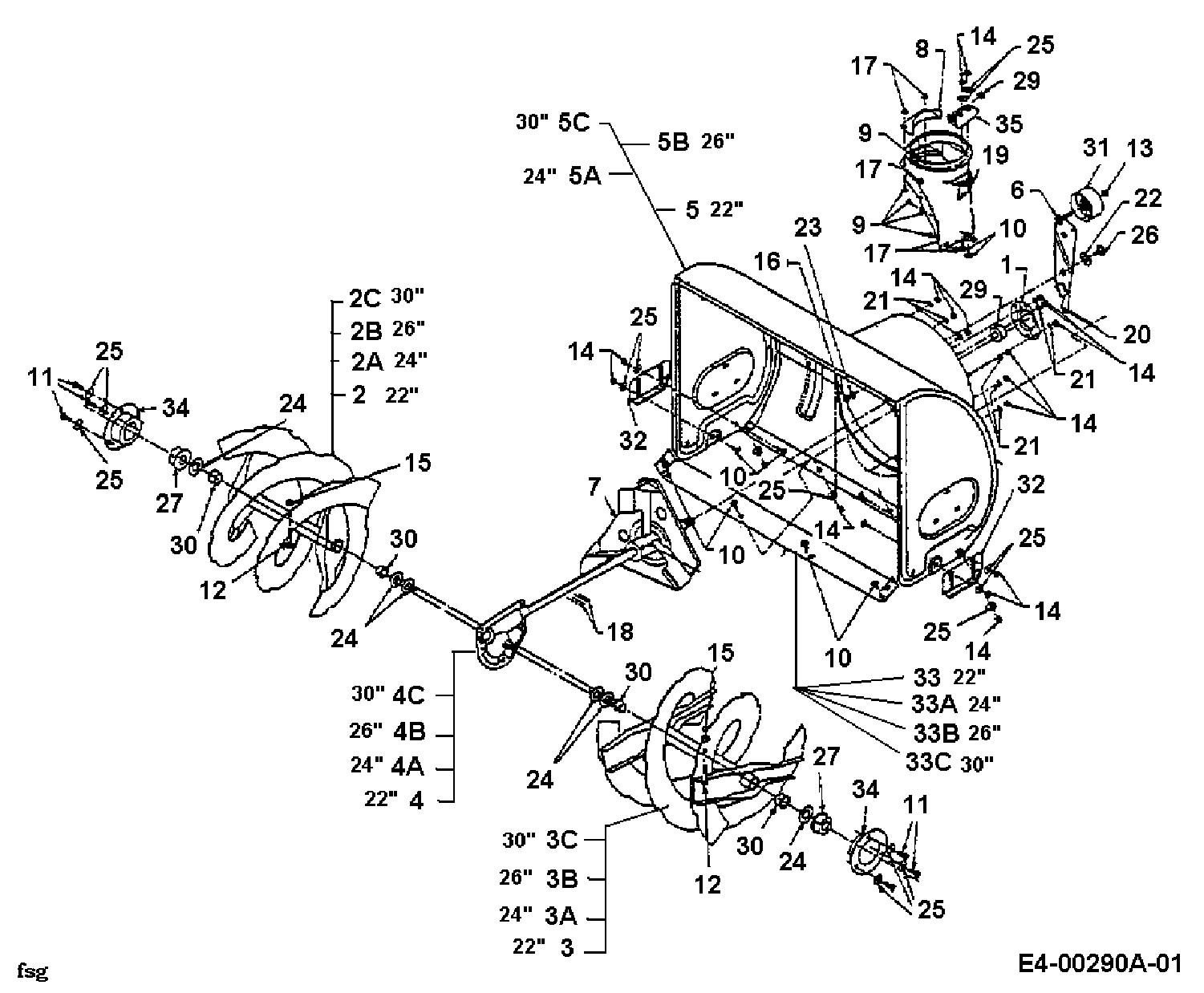

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016377

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 5931 HOUSING BEARING £11.23 Add
002 605-5253 SPIRAL 22" LEFT £153.35 Add
003 605-5252 SPIRAL 22" RIGHT £153.35 Add
004 618-0152A GEAR-ASSY-AUGER 618-0152 £231.47 Add
005 684-0052 HOUSING ASSY. 24" £227.07 Add
006 684-0064 ARM IDLER ASSY. £60.91 Add
007 684-0065 IMPELLOR £71.29 Add
008 705-5226 REINFORCEMENT-CHUTE 5.0 £58.91 Add
009 710-0167 SCR:CRG:1/4-20:.50: £2.68 Add
010 710-0451 BOLT:CRG:5/16-18:.750 GR1 £4.22 Add
011 710-0604A SCREW £3.50 Add
012 710-0890A BOLT:SHEAR:5/16-18:1.5:GR2 N/A POA
013 712-0116 HEX NUT £3.12 Add
014 712-3010 NUT £2.35 Add
015 712-0429 NUT HEX.INS L NUT £3.77 Add
016 712-0798 HEX. NUT £5.75 Add
017 712-3027 LOCK NUT £2.38 Add
018 715-0114A SPRING PIN 715-0114 £4.45 Add
019 731-1379 CHUTE ADAPTER £61.46 Add
020 732-0611 SPR:EXTN:.38 OD x 3.6 LG £5.21 Add
021 736-0119 LOCK WASHER 5/16 £2.81 Add
022 736-0167 FL-WASH. 5/8" I.D. X 1.25" £3.57 Add
023 736-0169 L. WASHER £2.45 Add
024 736-0188 FI-WASHER £5.17 Add
025 736-0242 BELL WASHER £3.14 Add
026 738-0281 SCR:SHLDR:.625 x.17:3/8-16 £8.16 Add
027 741-0245 BRG:HEX FLANGE x.75 ID £11.03 Add
028 741-0309 BALL BRG:.75 ID x 1.85 OD FLNG £39.20 Add
029 741-0475 PLASTIC BUSHING .38 INCH ID £3.67 Add
02A 605-5189 SCHNECKENHÄLFTE LINKS 24" N/A POA
02B 605-5193 USE 905-5193 N/A POA
02C 605-5249B SPIRAL ASSY. LH 30" 605-5249 N/A POA
030 741-0493A Split Bearing, 3/4" £3.57 Add
031 756-0178 TENSION PULLEY £40.41 Add
032 784-5580 SHOE:SLIDE:600 SNOW N/A POA
033 784-5576 PLATE-SHAVE-22 £35.47 Add
034 784-5618 HOUSING-BRG £10.60 Add
035 784-5647 BRACKET: CHUTE CRANK £20.32 Add
03A 605-5188 SCHNECKENHÄLFTE RECHTS 24" N/A POA
03B 605-5192 USE 905-5192 N/A POA
03C 605-5248 USE 905-5188 £114.28 Add
04A 618-0414B DRIVE ASSY-WORM 24" 618-0120 N/A POA
04B 618-0415B GEAR ASSY-26" AUGER 618-0121 N/A POA
04C 618-0160 GEAR ASSY-30" £238.91 Add
05A 684-0039D HOUSING ASSY-24IN 684-0039C N/A POA
05B 684-0040A638 USE 753-0616 684-0040A N/A POA
05C 684-0055 HOUSING ASSY. 30" £203.64 Add
33A 784-5581A SHAVE PLATE 24" £37.15 Add
33B 784-5579A 26" SHAVE PLATE £37.77 Add
33C 784-5575 SHAVE PLATE 30" £30.83 Add
