MTD016854

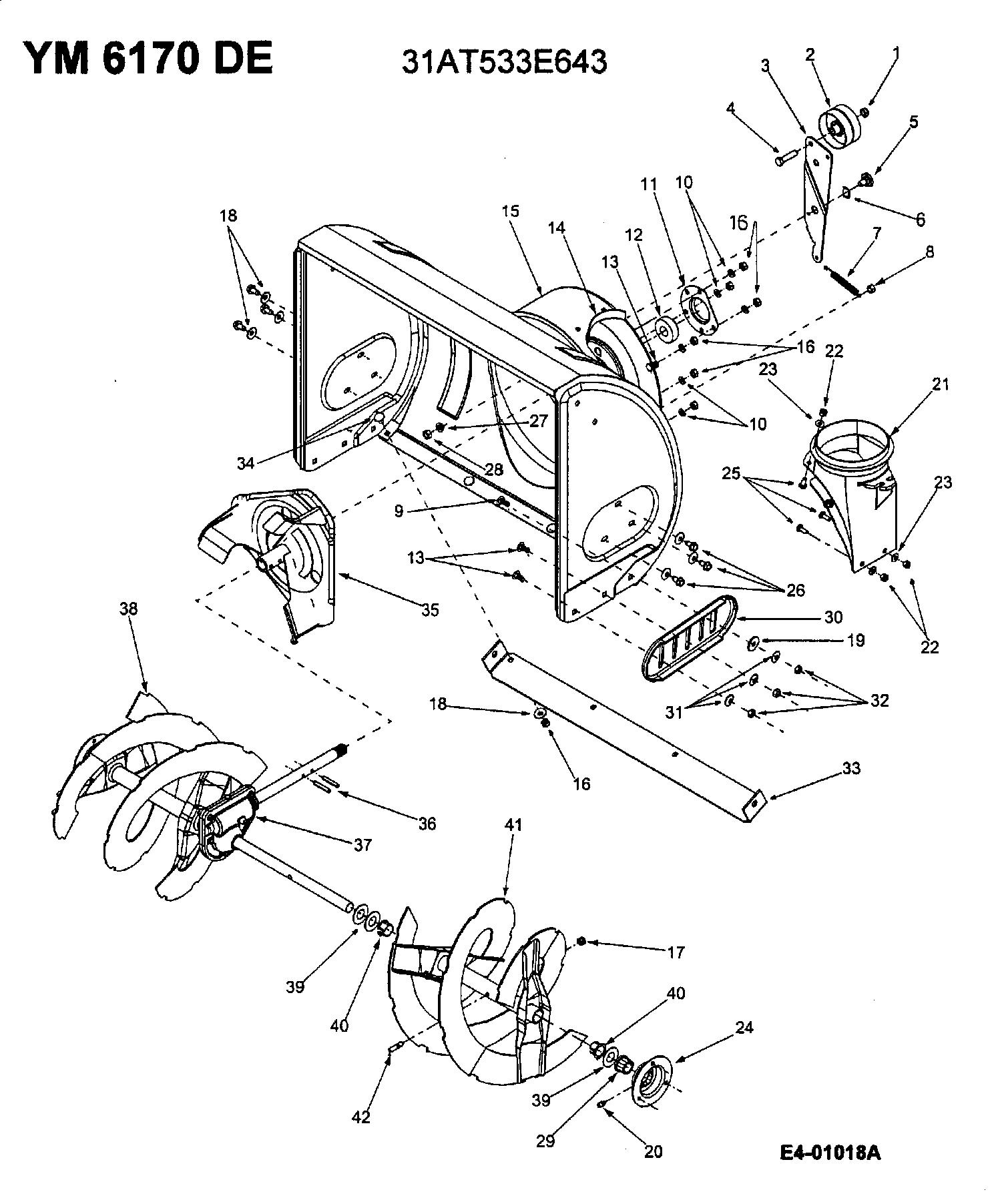

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016854

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 712-0116 HEX NUT £3.12 Add
002 756-0178 TENSION PULLEY £40.41 Add
003 784-5632A AUGER IDLER ARM £19.89 Add
004 710-0459A TIE ROD BOLT £3.07 Add
005 738-0281 SCR:SHLDR:.625 x.17:3/8-16 £8.16 Add
006 736-0167 FL-WASH. 5/8" I.D. X 1.25" £3.57 Add
007 732-0611 SPR:EXTN:.38 OD x 3.6 LG £5.21 Add
008 712-3009 NUT:HEXLK:5/16-18:GRB:CTRLK £3.41 Add
009 710-0276 SCREW:CRG:SPL:5/16-18:1.00 £3.21 Add
010 736-0119 LOCK WASHER 5/16 £2.81 Add
011 05931A HSG:BRG:1.85 ID £24.25 Add
012 741-0309 BALL BRG:.75 ID x 1.85 OD FLNG £39.20 Add
013 710-0451 BOLT:CRG:5/16-18:.750 GR1 £4.22 Add
014 705-5226 REINFORCEMENT-CHUTE 5.0 £58.91 Add
015 684-0039D HOUSING ASSY-24IN 684-0039C N/A POA
016 712-3010 NUT £2.35 Add
017 712-0429 NUT HEX.INS L NUT £3.77 Add
018 736-0242 BELL WASHER £3.14 Add
019 736-0231 WASHER FLAT £2.82 Add
020 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.00 Add
021 731-1379C CHUTE ADAPTER £62.44 Add
022 712-0324 HEX. INS L NUT £1.36 Add
023 736-0463 WASH:FLAT: .250 x .630 x .052 N/A POA
024 784-0399 HOUSING-BEARING £10.18 Add
025 710-0703 SCR:CRG:1/4-20:.75:GR5 £2.66 Add
026 710-0604A SCREW £3.50 Add
027 736-0169 L. WASHER £2.45 Add
028 712-0798 HEX. NUT £5.75 Add
029 741-0245 BRG:HEX FLANGE x.75 ID £11.03 Add
030 784-5038B SKID, SHOE N/A POA
031 736-0242 BELL WASHER £3.14 Add
032 712-3010 NUT £2.35 Add
033 784-5581A SHAVE PLATE 24" £37.15 Add
034 710-0260A BOLT:CRG: 5/16-18:.62 GR5 £2.74 Add
035 684-0065 IMPELLOR £71.29 Add
036 715-0114A SPRING PIN 715-0114 £4.45 Add
037 618-0414B DRIVE ASSY-WORM 24" 618-0120 N/A POA
038 605-5188A SPIRAL 24" RH £158.93 Add
039 736-0188 FI-WASHER £5.17 Add
040 741-0493A Split Bearing, 3/4" £3.57 Add
041 605-5189A SPIRAL 24" LH £158.93 Add
042 710-0890A BOLT:SHEAR:5/16-18:1.5:GR2 N/A POA
