MTD017443

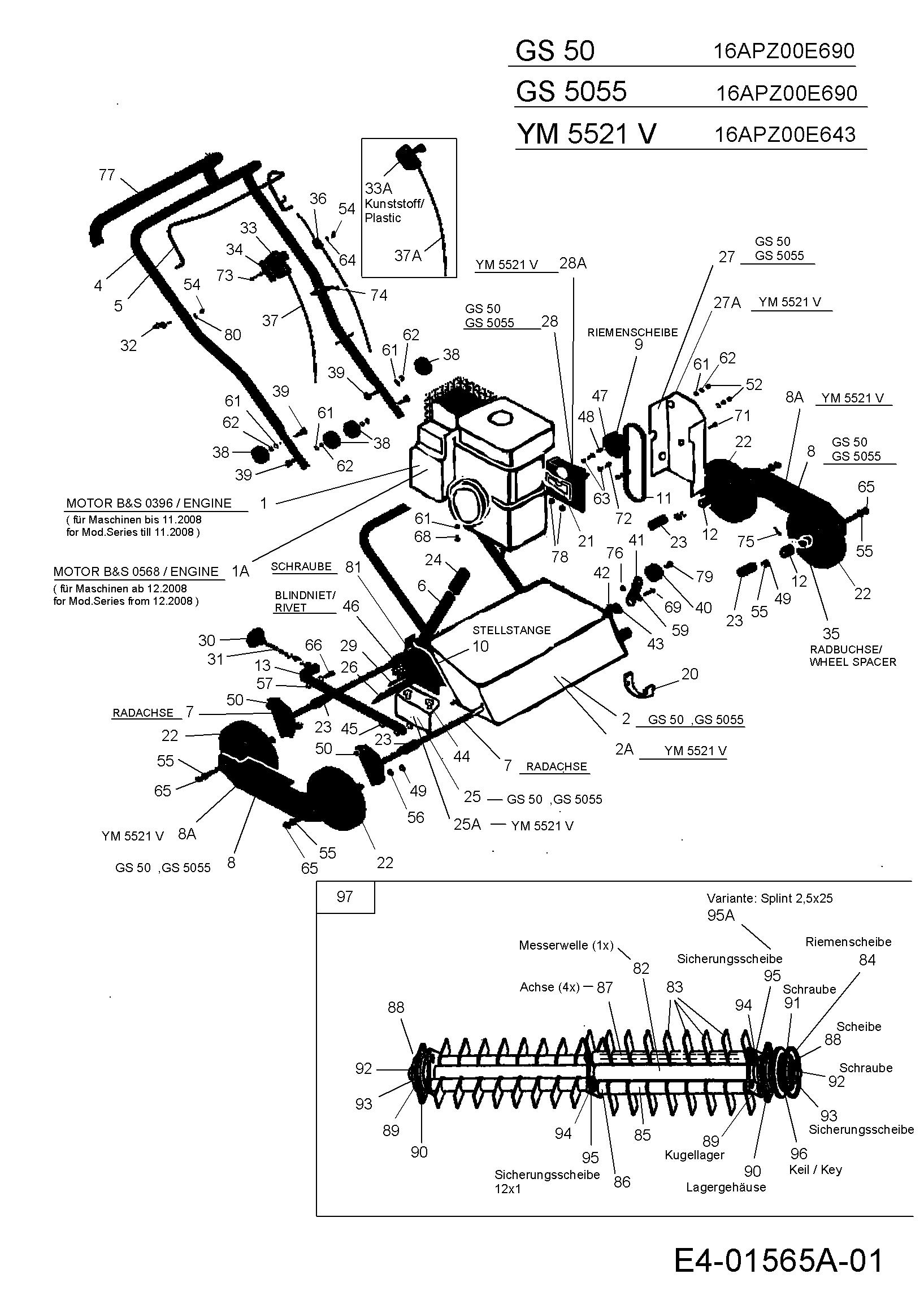

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017443

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 752B0396B1 ENGINE B&S £623.98 Add
002 TJ-2050021 CHASSIS £254.22 Add
004 TJ-2030020 HANDLE-UPPER £164.78 Add
005 TJ-2010406 HANDLE ASSY. CONTROL £49.20 Add
006 TJ-2016060 BLADE PIVOT BRACKET £43.00 Add
007 TJ-2050040 AXLE £84.25 Add
008 TJ-2016971 COVER £40.41 Add
009 TJ-2084116 ENGINE PULLEY £80.42 Add
010 TJ-2016040 ROD-SHIFT £43.44 Add
011 TJ-2030040 V-Belt £45.60 Add
012 TJ-2016020 LEFT WHEEL STRUT £49.05 Add
013 TJ-2016031 ROD-CRUISE CONTROL £38.43 Add
01A 752B0563B8 126302-0563-B8 N/A POA
020 TJ-2030050 GUIDE ASSY-BELT £22.74 Add
021 TJ-2084170 SUPPORT FOR BELT COVER £37.28 Add
022 TJ-2010272 USE WD-C37855 £145.94 Add
023 TJ-2011310 NYLON INSERT £20.22 Add
024 TJ-2010420 HANDLE GRIP £16.65 Add
025 TJ-2030101 BUMPER COVER £37.61 Add
026 TJ-2050050 REAR FLAP £38.43 Add
027 TJ-2030091 BELT STEEL COVER £76.55 Add
028 TJ-2030141 BRACKET-TRANS TORQUE £40.03 Add
029 TJ-2030110 RUBBER STRIP £35.68 Add
02A TJ-2050022 CHASSIS £254.22 Add
030 TJ-2030070 ROD-CLUTCH ADJ £36.45 Add
031 TJ-2016080 Spring £9.20 Add
032 TJ-2011296 HANDLEBAR CLAMP £23.37 Add
033 TJ-3011292 THROTTLE CONTROL £63.07 Add
034 TJ-3011289 ACCELERATOR COVER £20.78 Add
035 TJ-9060730 WHEEL SPACER £8.58 Add
036 TJ-2030030 CABLE £60.80 Add
037 TJ-3011287 ACCELERATOR CABLE £35.22 Add
038 TJ-2011185 WING NUT £16.96 Add
039 TJ-2020175 BOLT £12.54 Add
040 TJ-2019350 CLUTCH PLASTIC SPACER £35.35 Add
041 TJ-2084030 TENSIONER £38.75 Add
042 TJ-2026070 SPRING £6.77 Add
043 TJ-2084040 BUSHING £17.88 Add
044 TJ-9000960 SELF DRILLING SCREW £4.03 Add
045 TJ-9070010 PIN-ROLL £3.41 Add
046 TJ-9070980 Rivet £3.41 Add
047 TJ-9000010 BTR BOLT £5.40 Add
048 TJ-2011920 KEY-WOODRUFF £18.76 Add
049 712-0630 NUT: HEX:M12-1.75:DIN 934-8 £3.41 Add
050 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
052 24.1424.20 NUT TJ-9020911 N/A POA
054 712-0691 HEX NUT M6 DIN 985 £1.28 Add
055 TJ-9060030 GRIFARC WASHER £3.41 Add
056 24.8191.25 L-washer £3.17 Add
057 TJ-9060020 GRIFARC WASHER £3.41 Add
059 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.76 Add
061 TJ-9060010 STEEL WASHER DIN125 M8 N/A POA
062 24.8195.56 SPRING LOCK WASHER/DIA 8 £3.57 Add
063 736-0689 L-WASHER £2.66 Add
064 24.6484.14 GRIFARC WASHER TJ-9060000 N/A POA
065 TJ-9040030 BOLT £7.85 Add
066 21.1441.89 Screw £5.77 Add
068 710-1733 HEX. SCREW M8x35 DIN 933-8.8 £4.95 Add
069 710-1392 SCREW M8-1:45.00LG:DIN 933 8.8 £2.82 Add
071 TJ-9020110 Screw 21.1441.84 £6.31 Add
072 TJ-9000795 BOLT £9.89 Add
073 TJ-9010085 Screw 21.1441.57 £2.81 Add
074 TJ-2010410 LOCKING CABLE TIES £3.57 Add
075 TJ-9070240 USE 715-0101 £10.41 Add
076 TJ-9084000 NUT £9.20 Add
077 TJ-2050070 PROTECTION HANDLEBAR £56.69 Add
078 TJ-2084117 ENGINE PULLEY SPACER £25.79 Add
079 710-1785 Screw 21.1441.87 £3.11 Add
080 TJ-9060200 CURVED WASHER £4.78 Add
081 710-1683 SCR:M8-1:30.00 LG:DIN 933 £2.64 Add
082 TJ-2016256 2016256 £166.95 Add
083 TJ-2016251 KNIFE £8.64 Add
084 TJ-2016252 belt pulley £68.62 Add
085 TJ-2016254 2016254 £5.26 Add
086 TJ-2016249 2016249 £6.47 Add
087 TJ-2016258 AXLE-EDGER £65.81 Add
088 TJ-2016220 TREE WASHER £7.07 Add
089 TJ-7018310 BALL BEARING £56.79 Add
08A TJ-2016972 SIDE PROTECTION FOR WHEELS £40.41 Add
090 TJ-7018320 CUP ASSEMBLY £23.20 Add
091 TJ-9000010 BTR BOLT £5.40 Add
092 TJ-9030020 9030020 £4.48 Add
093 24.8191.22 L-washer £3.41 Add
094 TJ-9060030 GRIFARC WASHER £3.41 Add
095 SG-144590 CIRCLIPS D=12 UNI 7435 £3.23 Add
096 TJ-2014892 KEY,TIMING GEAR £11.03 Add
097 TJ-2009016 2009016 £393.48 Add
25A TJ-2030102 COVER-HARD TOP £37.61 Add
27A TJ-2030092 BELT STEEL COVER £81.37 Add
28A TJ-2030142 BELT INSIDE STEEL COVER £40.03 Add
33A TJ-3011340 TROTTLE CONTROL PLASTIC £77.16 Add
37A TJ-3011286 THROTTLE CABLE ASSEMBLY £39.50 Add
95A 24.6488.34 Roll pin 092.34.045 £3.18 Add
