MTD008761

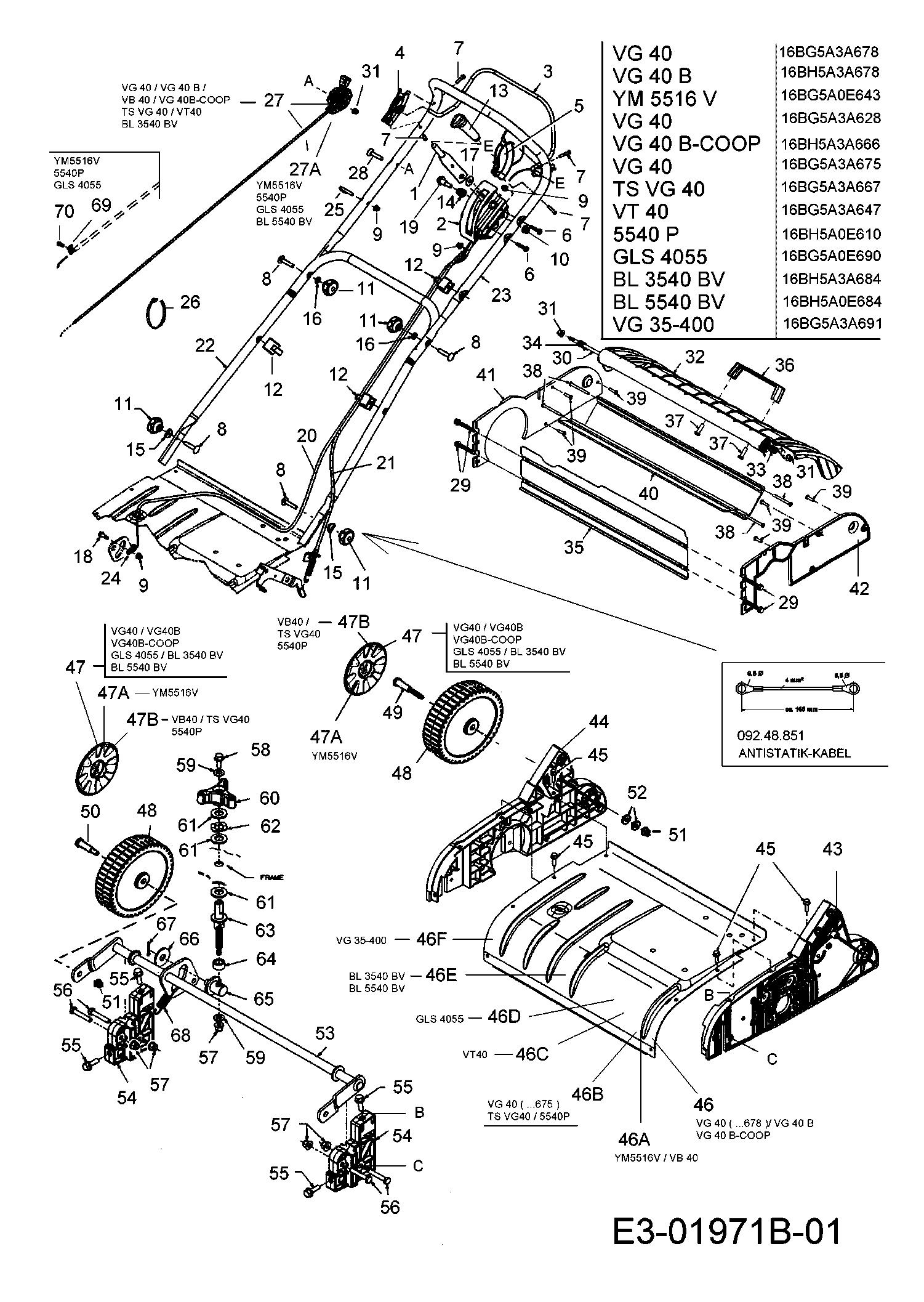

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008761

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 681-04025 681-04025 £17.05 Add
002 681-04026B HOUSING HEIGHT ADJUSTER £32.77 Add
003 681-04032 BRAKE BAIL £28.21 Add
004 681-04033 BAIL BRACKET R.H. £19.24 Add
005 681-04034 BAIL BRACKET L.H. £19.24 Add
006 710-04283 SCR:M6-1:30.00 LG:DIN 7985 £3.14 Add
007 710-04381 SCR:M5 x.80:30 mm LG DIN 966 £2.68 Add
008 710-1700 CARRIAGE BOLT M8x40 DIN 603-8. £3.21 Add
009 712-0713 Nut £3.60 Add
010 712-0714 NUT:FLGLK:M8-1.25 DIN 6926 £3.57 Add
011 720-04041 GRIP £5.03 Add
012 731-2422 CABLE GUIDE £3.08 Add
013 731-2509 GRIP £13.04 Add
014 732-04190 COMPRESSION SPRING £2.81 Add
015 736-0451 WASHER SADDLE £2.90 Add
016 736-0700 FLAT WASHER £1.90 Add
017 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.76 Add
018 738-04079 SCR:SHLDR:7.13x11.50:M6x1:8.8 £4.00 Add
019 738-04092 SCR:SHLDR:11.87x15.5:M8x1.25 £5.54 Add
020 746-04129 CBL:ADJ:HT:GAS £44.88 Add
021 746-04179 DRIVE CLUTCH CABLE:ERGO £20.72 Add
022 749-04117A HANDLE LOWER £26.96 Add
023 749-04137A HNDL:UPR:ERGO:GAS £41.40 Add
024 781-04064 GDE:CBL:CHUTE TILT £7.13 Add
025 782-7627A EYE BOLT £5.24 Add
026 725-0157 Nylon Tie 726-0178 £1.54 Add
027 746-04147 THROTTLE CONTROL + CABLE £44.02 Add
028 710-04278 SCR:M6x45mm:DIN 7985 £4.48 Add
029 710-1026 SCREW £3.30 Add
030 111.11.114 SRAP:CHUTE 723-0617 £9.20 Add
031 712-0713 Nut £3.60 Add
032 731-05124 DEFLECTOR:40cm £39.34 Add
033 732-04179 TORSION SPRING L.H. REAR FLAP £4.48 Add
034 732-04180 TORSION SPRING R.H. REAR FLAP £4.48 Add
035 781-04051A BFL: 40 CM £18.30 Add
036 720-04048 HNDL:PLASTIC £17.05 Add
037 710-1704 SCR:TORX:M6x20 WN 1452 £3.95 Add
038 710-04384 SCR:TAP:CH4.2x50.00:DIN 7981 £3.57 Add
039 710-04385 SCR:TAP:CH4.2x50.00:DIN 7981 £3.57 Add
040 731-05049 REAR BAFFLE £31.72 Add
041 731-05105 COVER:PANEL:RH £33.70 Add
042 731-05106 COVER:PANEL:LH £33.70 Add
043 681-04019A FRM ASM:SIDE LH £62.83 Add
044 681-04020A FRM ASM:SIDE:LH £65.51 Add
045 710-04189 SCR:M6-1:20.00 LG DIN 6921-8.8 £2.92 Add
046 781-04048A-R FRAME:40cm:MTD RED £72.16 Add
047 731-05244 HUBCAP RAM 180-94 PREMIUM GREY 720-0381 £13.09 Add
048 734-1916 WHL:180 MM:BLK PP £16.21 Add
049 738-04076 SCR:SHLDR:11.95x35.9:M8x1.25 £4.62 Add
050 738-1057 SCR SHLDR £10.24 Add
051 712-0714 NUT:FLGLK:M8-1.25 DIN 6926 £3.57 Add
052 736-04176 WASHER £3.57 Add
053 681-04017A BRKT ASM:ADJ:HT:40cm N/A POA
054 681-04014A BRACKET ASSY. £37.40 Add
055 710-04189 SCR:M6-1:20.00 LG DIN 6921-8.8 £2.92 Add
056 710-04197 SCR:M6-1:35.00 LG DIN 931 £3.89 Add
057 712-0713 Nut £3.60 Add
058 710-04190 SCR:M6-1:16.00 LG DIN 6921-8.8 £3.89 Add
059 736-0700 FLAT WASHER £1.90 Add
060 720-04035 KNOB:ADJ:HT £9.03 Add
061 736-0704 WASH:FLAT:13ID X 24OD:DIN 125 £3.18 Add
062 736-04105 WASHER;SPR:131Dx240D:DIN 137B £4.48 Add
063 738-04078 SCR:ADJ:HT £24.42 Add
064 750-04367 SPACER HEIGHT ADJUSTER £4.48 Add
065 711-04193 FRL:ADJ:HT £3.57 Add
066 736-0702 WASH:FLAT:10.5IDX30OD:DIN 9021 £2.42 Add
067 714-0507 COTTER PIN 3/32 DIA £2.65 Add
068 732-04249 SPR:EXT:12.2mm OD x 42.5mm LG £5.86 Add
069 751B221535 CLAMP-CASING £2.38 Add
070 710-0899A SCR:#10-32:.62:HXSEMS:GR5.1 £3.57 Add
27A 746-04157 THROTTLE CONTROL W/CABLE £26.08 Add
46A 781-04048AYG FRAME £72.16 Add
46B 781-04048AMG FRAME £72.16 Add
46C 781-04048AMY FRAME £72.16 Add
46D 781-04048ARM FRM:40cm:GAS £72.16 Add
46E 781-04048AMA FRM:40cm:GAS:MC GREEN £72.16 Add
46F 781-04048AGG FRM:40cm:GAS £72.16 Add
47A 720-04040 HUB CAP £9.36 Add
47B 720-0365668 HUBCAP 180-94 MTD-RED £16.86 Add
