MTD008582

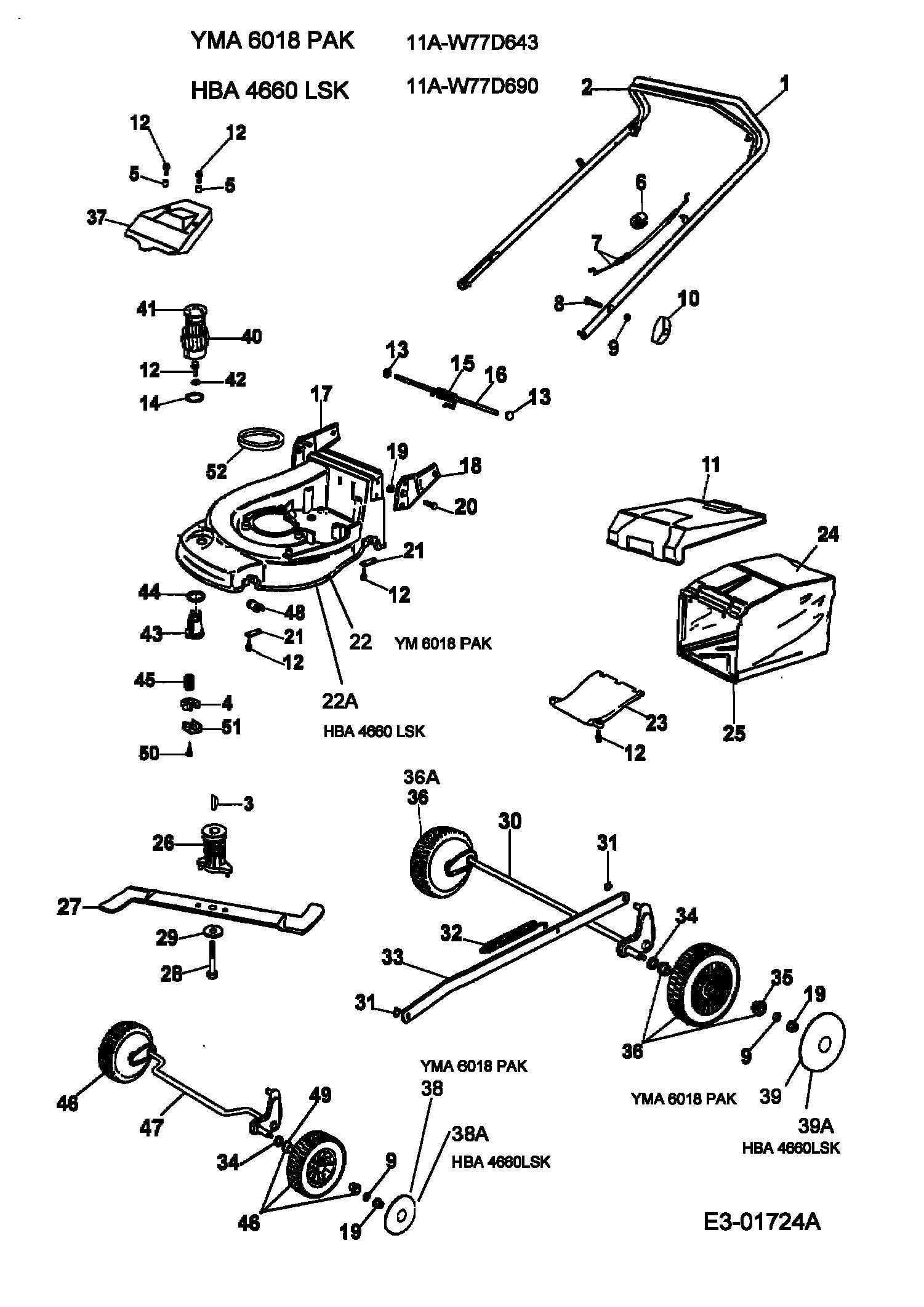

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EM-66060163	HANDLE	£144.01	Add
002	EM-66060106	BRAKE LEVER	£46.97	Add
003	EM-8202126R	KEY	£5.00	Add
004	EM-66060035	HUB	£35.06	Add
005	EM-66060110	BUSHING	£3.20	Add
006	EM-66030016	FAIRLEAD	£5.81	Add
007	EM-66060181	BRAKE CABLE	£33.67	Add
008	710-1375	SCREW	£3.69	Add
009	736-0700	FLAT WASHER	£2.63	Add
010	EM-4119013A	KNOB	£11.74	Add
011	EM-66060059	COVER (RED)	£65.29	Add
012	EM-3960031	SCREW	£3.39	Add
013	EM-3045027	CLIP	£2.98	Add
014	EM-66060118	SPACER	£5.81	Add
015	EM-66060060	SPRING	£8.32	Add
016	EM-66060055	PIN	£11.15	Add
017	EM-66060026	ATTACHMENT	£56.97	Add
018	EM-66060025	ATTACHMENT	£56.97	Add
019	712-0692	HEX NUT	£3.10	Add
020	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
021	EM-66060008	PLATE	£5.91	Add
022	EM-66090060	DECK	£363.56	Add
023	EM-66062096	COVER	£29.73	Add
024	EM-66060188	GRASS BAG	£72.07	Add
025	EM-66060078	FRAME	£108.81	Add
026	EM-66060131	HUB	£64.79	Add
027	EM-66090006B	BLADE (RED)	£81.18	Add
028	EM-3906162	NO LONGER AVAILABLE	N/A	POA
029	EM-66060130	NO LONGER AVAILABLE	N/A	POA
030	EM-66060052B	HINTERACHSE	£137.97	Add
031	EM-3026007	SNAP RING	£2.40	Add
032	EM-66060043	SPRING	£24.60	Add
033	EM-66090005	LEVER	£38.88	Add
034	EM-8202311	WASHER	£3.20	Add
035	EM-66030057	BEARING	£11.84	Add
036	EM-66060005	WHEEL (REAR) (RED)	£83.70	Add
037	EM-66090004	COVER	£35.00	Add
038	EM-66060190	COVER	£8.32	Add
039	EM-66060192	HUB CAP (RED)	£10.83	Add
040	EM-66060041R	KNOB	£21.33	Add
041	EM-66060040A	CAP	£7.37	Add
042	736-0685	WASHER	£3.26	Add
043	EM-66060037A	FEMALE THREAD	£13.64	Add
044	EM-66060038	WASHER	£7.30	Add
045	EM-66060039A	ADJUSTER SCREEN	£10.13	Add
046	EM-66110283	WHEEL FRONT CASTER EM-66030077	N/A	POA
047	EM-66060020	FRONT AXLE	N/A	POA
048	EM-66060007	COLLAR	£6.32	Add
049	EM-66030081	BEARING	£11.84	Add
050	EM-3960040	NO LONGER AVAILABLE	N/A	POA
051	EM-66060034	COLLAR	£35.06	Add
052	EM-66060179	SPACER	£55.45	Add
22A	EM-66090059	DECK	£363.56	Add
36A	EM-66060005S	HINTERRAD SCHWARZ	£83.70	Add
38A	EM-66060189	COVER	£8.82	Add
39A	EM-66060191	COVER	£10.32	Add
