MTD011847

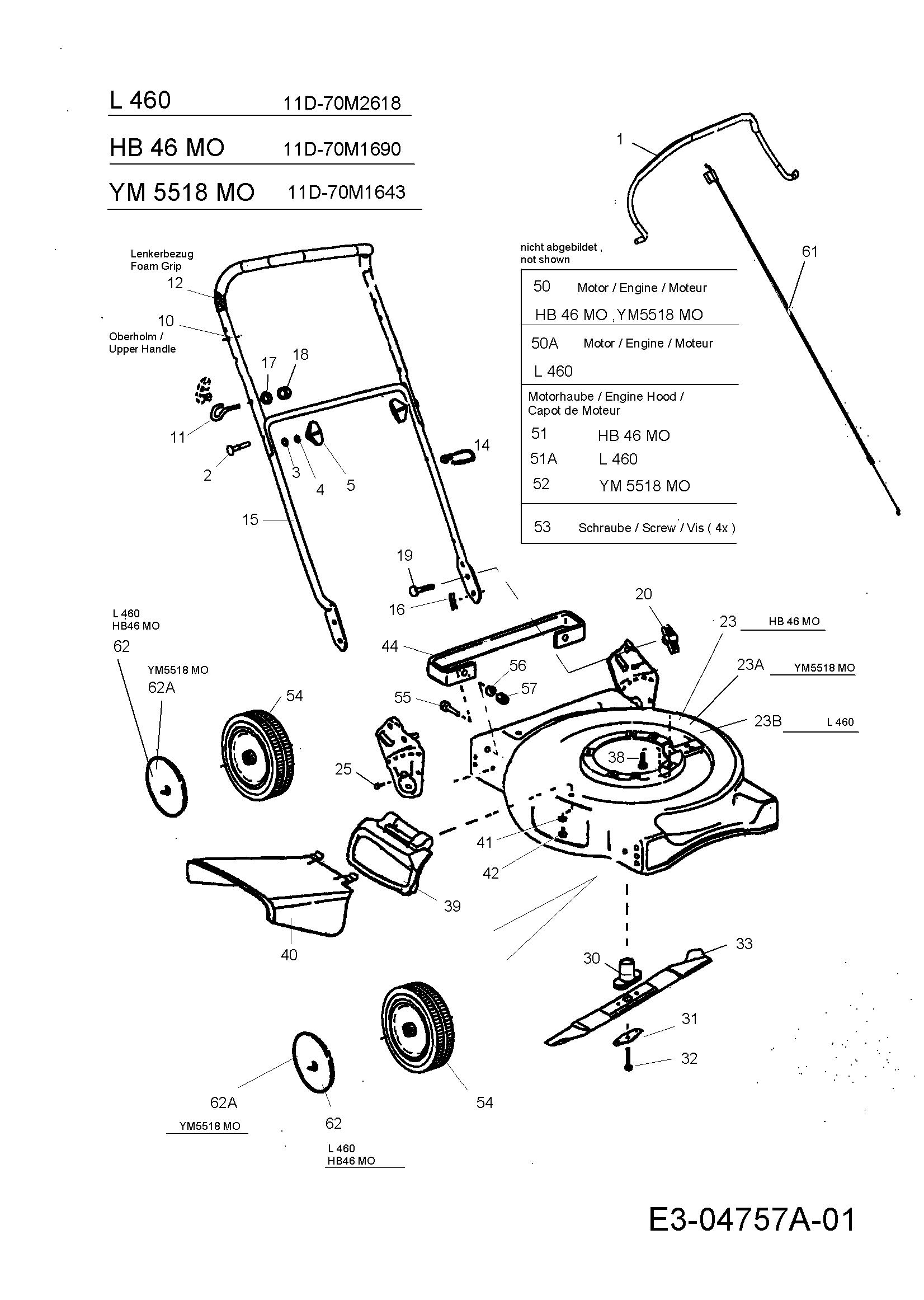

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	747-05083637	BAIL ERGO	£26.11	Add
002	710-1719	BOLT	£4.89	Add
003	736-0700	FLAT WASHER	£2.63	Add
004	736-0689	L-WASHER	£3.26	Add
005	720-0368	WING NUT	£5.19	Add
010	749-04462637	HNDL:UPR:ERG1:800/19IN	£40.98	Add
011	782-7627A	EYE BOLT	£6.28	Add
012	720-04101	GRIP-HANDLE, FOAM BLACK	£12.55	Add
014	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add
015	749-0907C637	NO LONGER AVAILABLE	N/A	POA
016	714-0104	PIN INTERNAL COTTER	£2.78	Add
017	736-0668	WASHER	£2.23	Add
018	712-0691	HEX NUT M6 DIN 985	£2.66	Add
019	710-0703	SCR:CRG:1/4-20:.75:GR5	£3.07	Add
020	712-0397A	WING NUT	£5.52	Add
023	682-0263-RG	MOWER DECK CPL.	£136.48	Add
025	710-1017	TAP SCREW	£2.97	Add
030	748-0376E	BLADE ADAPTOR	£26.64	Add
031	736-0524B	SPR BLADE BELL	£8.61	Add
032	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
033	742-0738-637	MULCH BLADE 18" BLACK	£29.15	Add
038	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
039	682-7002	PLUG-HINGED MULCHING	£36.26	Add
040	731-1409B	DEFLECTOR	£23.01	Add
041	736-0270	BELL WASHER	£3.91	Add
042	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
044	782-3086637	SCHWARZ 788-0637 GEPULVERT	£19.28	Add
050	752Z5P70MH	ENGINE 173 CC OHV VERTIC SHAFT	£413.01	Add
051	731-05888	SHRD:ENG:M2 BLACK EU	N/A	POA
052	631-04301	ENGINE SHROUD	£40.89	Add
053	710-04744	SCREW:HL:#12-16:1.000:HXWSHHD	£2.79	Add
054	634-04572	WHL:COMP:200MM:IDLE:PREM BB	£28.82	Add
055	710-1376	CAP SCREW	£4.50	Add
056	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add
057	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
061	746-04211	BRAKE CABLE 1330mm EXPORT ERS	£33.04	Add
062	731-06128	HUBCP:WHL:200mm:A:GRAY	£9.12	Add
23A	682-0263665	DECK	£133.63	Add
23B	682-0263638	MOWER HOUSING 18"	£132.87	Add
50A	752Z5P65MHA	ENGINE MTD	£419.46	Add
51A	731-05400	SHRD:ENG:M1 BLACK	N/A	POA
62A	731-06300	FINISH:YM GELB MIT MTD LOGO	£9.92	Add
