MTD008705

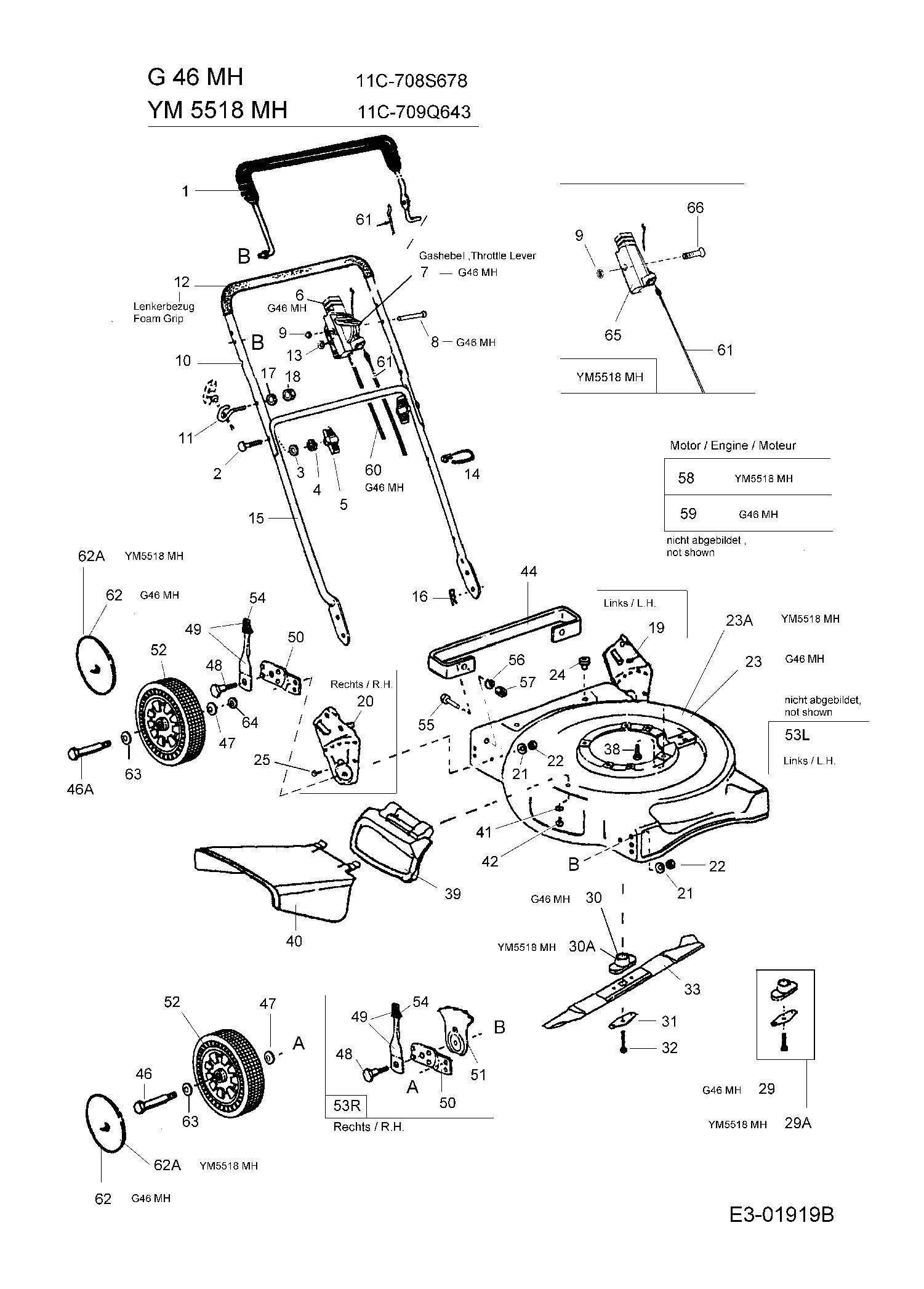

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0004	LVR:CONT:DELUXE	£47.81	Add
002	710-1719	BOLT	£4.89	Add
003	736-0700	FLAT WASHER	£2.63	Add
004	736-0689	L-WASHER	£3.26	Add
005	720-0368	WING NUT	£5.19	Add
006	746-0875	THROTTLE BOX BODY	£17.98	Add
007	746-0876	LEVER-THROTTLE	£12.97	Add
008	710-0605	SCR:MACH:1/4-20:1.825:OVALCSK	£3.44	Add
009	712-0324	HEX. INS L NUT	£3.69	Add
010	749-0705637	UPPER HANDLE	£30.63	Add
011	782-7627A	EYE BOLT	£6.28	Add
012	720-0347637	FOAM GRIP	£12.60	Add
013	736-0501	SPRING WASHER (RED)	£4.00	Add
014	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add
015	749-0928637	LOWER HANDLE	£35.84	Add
016	714-0104	PIN INTERNAL COTTER	£2.78	Add
017	736-0668	WASHER	£2.23	Add
018	712-0691	HEX NUT M6 DIN 985	£2.66	Add
019	682-3001A	BRKT ASM:HNDL:LH 9-POS HGT ADJ	£37.29	Add
020	682-3000A	BRKT ASM:HNDL:RH 9-POS HGT ADJ	£37.29	Add
021	736-0356	BELL WASHER	£3.95	Add
022	712-0431	NUT	£3.20	Add
023	682-0263638	MOWER HOUSING 18"	£132.87	Add
024	100.000.472	CAP	£2.79	Add
025	710-1017	TAP SCREW	£2.97	Add
029	811-00248	BLADE LOCK ADAPTER-KIT	£40.38	Add
030	748-0376E	BLADE ADAPTOR	£26.64	Add
031	736-0524B	SPR BLADE BELL	£8.61	Add
032	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
033	742-0738-637	MULCH BLADE 18" BLACK	£29.15	Add
038	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
039	682-7002	PLUG-HINGED MULCHING	£36.26	Add
040	731-1409B	DEFLECTOR	£23.01	Add
041	736-0270	BELL WASHER	£3.91	Add
042	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
044	782-3086637	SCHWARZ 788-0637 GEPULVERT	£19.28	Add
046	738-0102	SHOULDER BOLT	£7.13	Add
047	736-0105	BELL WASHER	£3.33	Add
048	738-0507B	SHOULDER BOLT	£6.89	Add
049	14832	LEVER ASSY	£10.65	Add
050	15262B-0637	BAR:WHL PIVOT: SMALL 15262B	N/A	POA
051	15261A	INDEX PLATE 24-660	£11.15	Add
052	734-2008A	WHEEL COMP.8x2:COG IDLE BB ZRK	£46.21	Add
054	720-0426	KNOB:ADJ:HEIGHT	£5.46	Add
055	710-1376	CAP SCREW	£4.50	Add
056	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add
057	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
058	752H880661	ENGINE HONDA GCV160 AS3H2 5,5H	N/A	POA
059	752H636760	MOTOR HONDA GCV 160 5.5 HP	£535.00	Add
060	746-04130	746-04130	£24.20	Add
061	746-0554	CBL:CONT:40.5 LG	£27.63	Add
062	731-0981C	HUBCP:WHL:RADIAL SPOKE GREY 731-0981A	£9.70	Add
063	736-0504	WAVE WASHER	£2.84	Add
064	750-0535	SPACER	£10.09	Add
065	746-0883	BODY CABLE	£10.73	Add
066	710-1270	SCR:MACH:1/4x20:1.310:OVALCSK	£3.44	Add
23A	682-0263665	DECK	£133.63	Add
29A	811-000444	ADAP:BLADE:25mm SHORT	£24.20	Add
30A	748-04096	ADAP:BLADE:25MMX1.19	£21.04	Add
46A	738-0213	SCREW-SHLD	£7.41	Add
53L	14579	KP LH HEIGHT ADJ ASSY KP	£36.54	Add
53R	14578	ADJ ASM:HGT:SMALL 9 POS RH	£31.86	Add
62A	731-1426A	HUBCP:WHL:RADIAL SPOKE YELLOW 731-1426	N/A	POA
