MTD008025

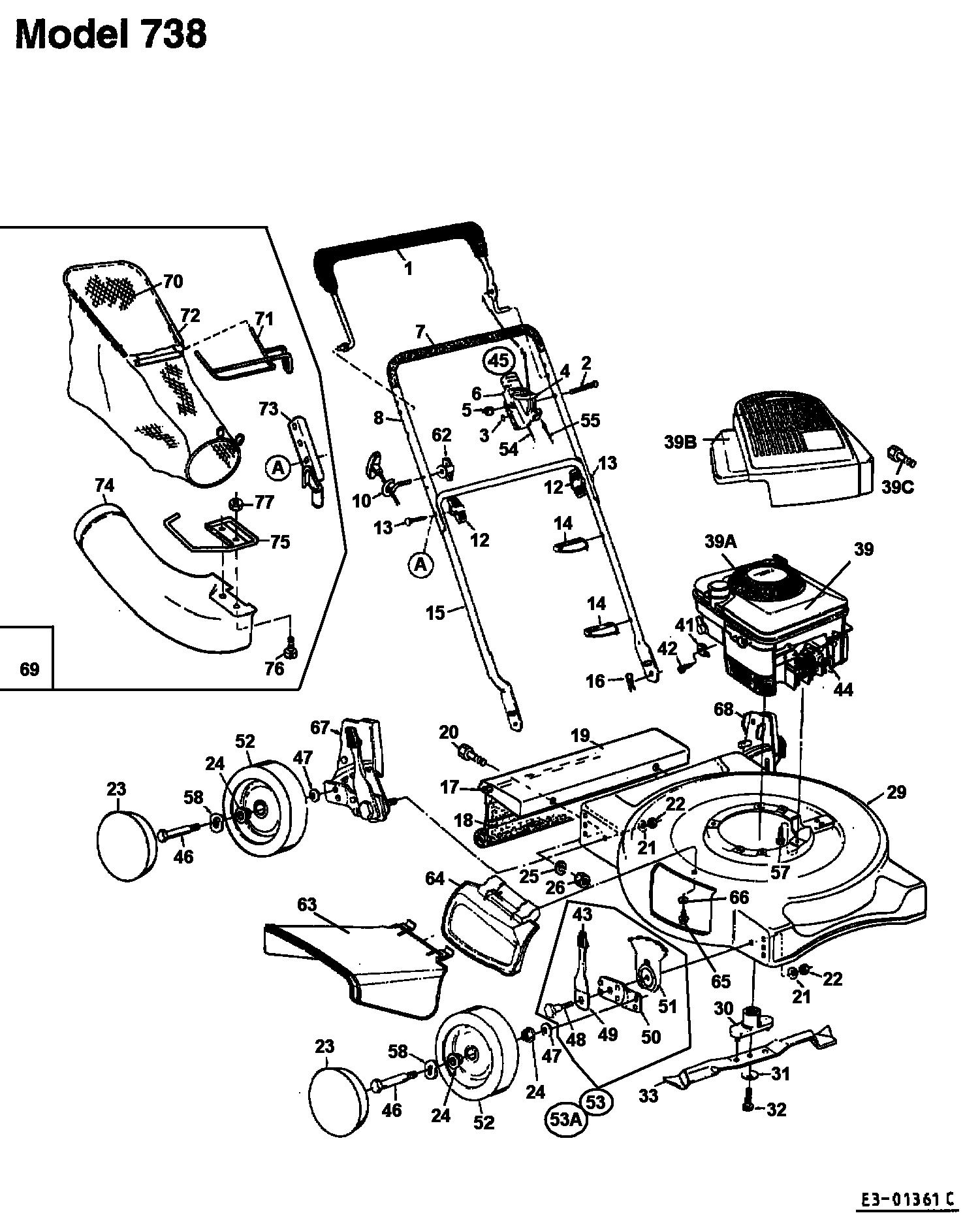

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008025

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 647-0004 LVR:CONT:DELUXE £25.96 Add
002 710-0605 SCR:MACH:1/4-20:1.825:OVALCSK £3.41 Add
003 736-0501 SPRING WASHER (RED) £3.37 Add
004 746-0876 LEVER-THROTTLE £9.16 Add
005 712-0324 HEX. INS L NUT £1.36 Add
006 746-0875 THROTTLE BOX BODY £13.73 Add
007 720-0347637 FOAM GRIP £9.76 Add
008 749-0538C HANDLE-UPPER £22.58 Add
010 710-1205 ROPE GUIDE £1.62 Add
012 720-0276 KNOB £4.62 Add
013 710-1174 BOLT CURVED HEAD £3.25 Add
014 726-0240 TIE:CBL:3/16:7.0 LG £3.57 Add
015 749-0928637 LOWER HANDLE £29.88 Add
016 714-0104 PIN INTERNAL COTTER £2.36 Add
017 732-0700 LINK, PARALLEL £2.92 Add
018 731-1504 REAR FLAP N/A POA
019 782-7014 COVER £25.63 Add
01A 747-0824637 BRAKE BAIL 747-0824 £9.96 Add
020 710-3008 HEX BOLT £2.57 Add
021 736-0356 BELL WASHER £3.34 Add
022 712-0798 HEX. NUT £5.75 Add
023 731-1426A HUBCP:WHL:RADIAL SPOKE YELLOW 731-1426 N/A POA
024 741-04317 BEARING-BALL £5.69 Add
025 736-0119 LOCK WASHER 5/16 £2.81 Add
026 712-3010 NUT £2.35 Add
029 682-0052665 DECK ASSY.-20" 682-0052 N/A POA
030 748-0376E BLADE ADAPTOR £21.26 Add
031 736-0452 BELL-WASH 39 INCH £3.12 Add
032 710-1044 HEX BLOT 3/8-24 X 1.5 INCHS LONG £3.65 Add
033 742-0740 BLADE-20IN-MULCHING £18.40 Add
039 752B1776E1 ENG:QUAN 5.0HP YM YELLOW £453.50 Add
041 751B213146 CASING CLAMP £3.32 Add
042 710-1237 SCREW SELF TAP £2.38 Add
043 720-0426 KNOB:ADJ:HEIGHT £5.40 Add
044 735-0639 INSULATOR-SPARK PLUG (OBSOLETE) N/A POA
045 811-0185 CONTROL-THROTTLE £24.86 Add
046 738-0102 SHOULDER BOLT £5.54 Add
047 736-0105 BELL WASHER £2.82 Add
048 738-0507B SHOULDER BOLT £5.78 Add
049 14832 LEVER & KNOB ASSY £12.70 Add
050 15262B-0637 BAR:WHL PIVOT: SMALL 15262B N/A POA
051 15261A PLATE-HGT ADJ £16.29 Add
052 734-1978 WHEEL 8 X 2" £27.26 Add
053 14578 ADJ ASM:HGT:SMALL 9 POS RH £27.58 Add
054 746-0842 THROTTLE WIRE X 51.0" RED N/A POA
055 746-0553 BRAKE CABLE 36" LG,RED £16.65 Add
057 710-0654A SCR:TTSEMS:3/8-16:1.000:HXLWSH £4.80 Add
058 736-0504 WAVE WASHER £1.26 Add
062 720-0279 WING NUT £1.43 Add
063 731-1409B DEFLECTOR £20.48 Add
064 682-7002 PLUG-HINGED MULCHING £33.41 Add
065 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
066 736-0270 BELL WASHER £3.30 Add
067 687-02106 BRKT ASM:HNDL:RH HGT ADJ 682-3024 N/A POA
068 687-02107A BRKT ASM:HNDL:LH HGT ADJ 682-3025 N/A POA
069 OEM-190-106 GRASS BAG SOFT TOP N/A POA
070 764-0456 BAG:CTHR GRASS "A" DECK £109.90 Add
071 747-0892 FRAME-BAG £84.28 Add
072 749-0931 TUBE SUPPORT-UPPER £78.21 Add
073 782-7007 STRIP-RETAINING £33.22 Add
074 731-1424 CHUTE-PLASTIC £55.48 Add
075 747-0891 BRACKET-CHUTE MTG £78.21 Add
076 710-0286 SCREW £3.57 Add
077 712-0271 NUT:SEMS:1/4-20 £2.68 Add
39A 751B224511 GUARD-FLYWHEEL £7.53 Add
39B 731-1396A ENGINE HOOD £56.94 Add
39C 710-1256 SCR:HL:#8-18:1.250:PANPHI £2.23 Add
53A 14579 ADJ ASM:HGT:SMALL 9 POS LH £35.50 Add
