MTD009608

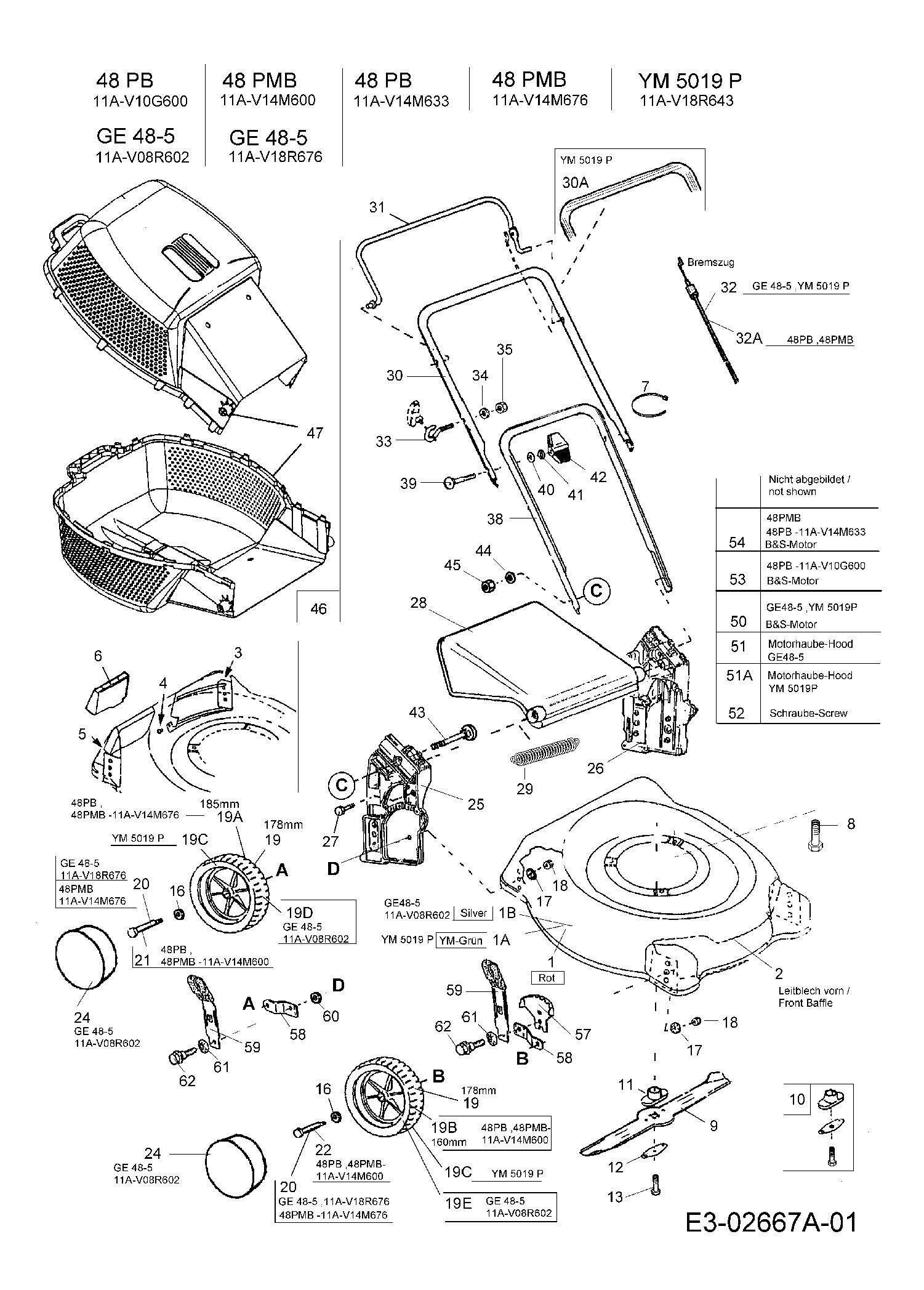

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	782-0054B638	MOWER HOUSING 19"	£104.41	Add
002	782-5025637	FRONT BAFFLE	£36.58	Add
003	782-5026637	NO LONGER AVAILABLE	N/A	POA
004	710-1017	TAP SCREW	£2.97	Add
005	782-5004	REAR MULCH BAFFLE 782-5004637	£14.85	Add
006	731-2386	REAR MULCHING PLUG	£21.20	Add
007	726-04055	CABLE TIE 000.70.563	£3.91	Add
008	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
009	742-04018A	BLADE:48cm:V-DECK GAS	£42.12	Add
010	811-00248	BLADE LOCK ADAPTER-KIT	£40.38	Add
011	748-0376E	BLADE ADAPTOR	£26.64	Add
012	736-0524B	SPR BLADE BELL	£8.61	Add
013	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
016	736-0369	WASH:THRST:.508x1.000x.020	£2.97	Add
017	736-0242	BELL WASHER	£3.72	Add
018	712-0692	HEX NUT	£3.10	Add
019	734-1988	WHEEL COMP. 7X1.8	£36.15	Add
01A	782-0054B665	MOWER HOUSING 19"	£111.04	Add
01B	782-0054B629	MOWER HOUSING 19"	£104.41	Add
020	738-1045	BOLT	£10.03	Add
021	738-1031	SCR:SHLDR:11.95x43.00:M8	£16.65	Add
022	738-1052	BOLT:WHL	£6.72	Add
024	720-0376662	WHEEL CAP	£8.10	Add
025	731-2382A	HANDLE BRKT. R.H.	£20.99	Add
026	731-2381A	HANDLE BRAKET L.H.	£26.70	Add
027	710-1017	TAP SCREW	£2.97	Add
028	731-2380637	REAR FLAP/DEFLECTOR	£38.26	Add
029	732-0910	SPRING	£4.50	Add
030	749-04083C	HNDL:UPR:EXPORT	N/A	POA
031	747-1161A637	BRAKE BAIL	£19.25	Add
032	746-04076	BRAKE CABLE 42.60"	£24.95	Add
033	782-7627A	EYE BOLT	£6.28	Add
034	736-0668	WASHER	£2.23	Add
035	712-0691	HEX NUT M6 DIN 985	£2.66	Add
038	749-04086637	HNDL:LWR:EXPORT 749-04086	£38.97	Add
039	710-1719	BOLT	£4.89	Add
040	736-0451	WASHER SADDLE	£3.44	Add
041	736-0689	L-WASHER	£3.26	Add
042	720-0368	WING NUT	£5.19	Add
043	710-1718	NO LONGER AVAILABLE	N/A	POA
044	736-0700	FLAT WASHER	£2.63	Add
045	712-0692	HEX NUT	£3.10	Add
046	731-2379637	GRASS CATCHERCPL. 818-61137	£66.82	Add
047	731-2379637	GRASS CATCHERCPL. 818-61137	£66.82	Add
050	752B1904B1	ENGINE B&S QUANTUM	£393.96	Add
051	731-1694B	SHROUD:ENG:QUAN BLACK STYLE 3	£22.77	Add
052	710-1256	SCR:HL:#8-18:1.250:PANPHI	£8.53	Add
053	752B2037B1	ENGINE:B&S:35 CLASSIC	£375.41	Add
054	752B2010B1	B&S ENGINE	N/A	POA
057	782-0659	ADJUSTING PLATE 079.30.313	£18.97	Add
058	782-0617A	PIVOT ARM	£15.40	Add
059	682-0271A	LVR ASM:HGT:L0-WHL 079.29.735	£10.83	Add
060	736-0343	WASHER-5/16 x 1.25	£4.57	Add
061	736-0651	NO LONGER AVAILABLE	N/A	POA
062	738-1030A	Screw 079.29.178	£9.23	Add
19A	734-04203	WHEEL Dia 185 mm BLACK BAR 734-1894637	£17.87	Add
19B	734-04202	WHL:COMPL:160mm	£21.68	Add
19C	734-04211	WHEEL YELLOW, 7X1.8	£36.15	Add
19D	734-1821	WHL:COMPL:8x2 SWAV GRAY BB	£48.52	Add
19E	734-1980	WHEEL	£38.31	Add
30A	720-0347637	FOAM GRIP	£12.60	Add
32A	746-0957	BOWDEN CABLE	£34.08	Add
51A	731-1402B	NO LONGER AVAILABLE	N/A	POA
