MTD009517

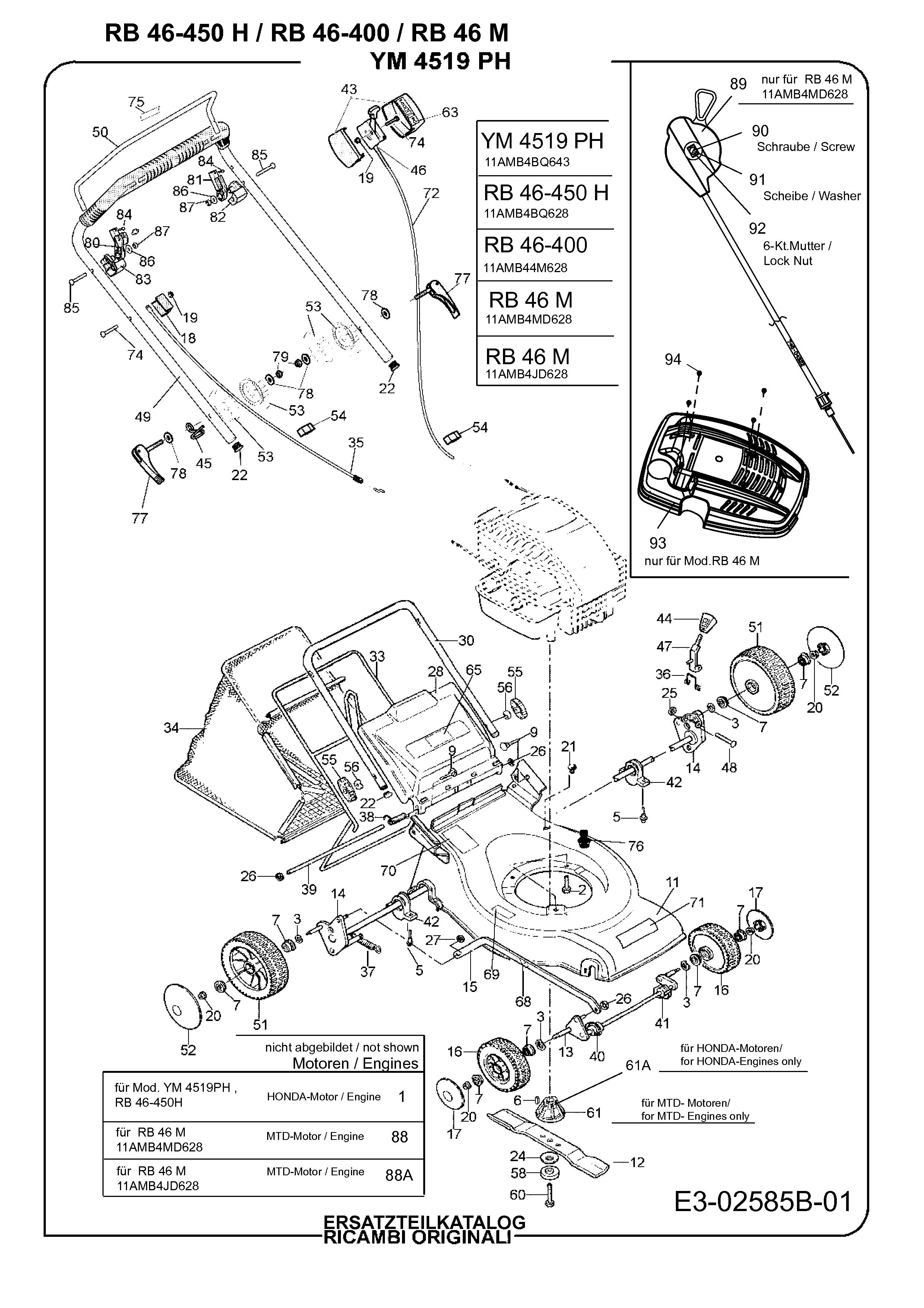

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	752H13A2G4SD	ENGINE HONDA	N/A	POA
002	CP029525	SCREW	£4.65	Add
003	CP032813	WASHER	£2.98	Add
005	CP034615	RIVET AL 5	£2.79	Add
006	CP037406	WOODRUFF KEY	£3.59	Add
007	CP038227	BALL BEARING	£8.32	Add
009	CP040850	SCREW	N/A	POA
011	CP047001.31	HOUSING	£174.37	Add
012	CP047013	BLADE	£34.56	Add
013	CP047048	FRONT AXLE	£73.75	Add
014	CP047053	AXLE	£108.52	Add
015	CP047063	ROD-DISENGAGEMENT	N/A	POA
016	CP050106	WHEEL	£32.45	Add
017	CP050127.31	HUB CAP	£9.09	Add
018	CP042216	CLIP	£5.70	Add
019	CP042806	NUT HEXAGONAL M6	£2.90	Add
020	CP042808	NUT	£2.79	Add
021	CP045713	CAP	£3.20	Add
022	CP045722	CAP	£2.79	Add
024	CP045911	WASHER (OBSOLETE) (OBSOLETE)	N/A
025	CP046606	RETAINER	£2.70	Add
026	CP046607	PUSH CAP	£2.57	Add
027	CP046608	DISK	N/A	POA
028	CP047018	DEFLECTOR	£73.59	Add
030	CP047034	STIEL	£96.55	Add
033	CP047078	USE 781-0459A	£65.81	Add
034	CP047083.0531		N/A	POA
035	CP052149	CABLE	£43.59	Add
036	CP047191	SPRING	£9.33	Add
037	CP047192	EXTENSION SPRING	£10.83	Add
038	CP050192	SPRING	£6.01	Add
039	CP047203	STANGE HECKLAPPE	£9.63	Add
040	CP047212	BUSHING AXLE	£7.92	Add
041	CP047213	BUSHING AXLE	£7.92	Add
042	CP047214	AXLE BEARING	£9.23	Add
043	CP047220	COVER	£21.27	Add
044	CP047236	HOOD	£8.82	Add
045	CP047242	CABLE SUPPORT (RED)	£12.11	Add
046	CP047250	LEVER	£31.54	Add
047	CP047255	CONTROL LEVER SHVS	£35.88	Add
048	CP047267	PIN	£3.31	Add
049	CP051043	HANDLE UPPER PART	£100.39	Add
050	CP052073	BAR	£48.72	Add
051	CP050110	WHEEL	£50.65	Add
052	CP050132.31	WHEELCOVER GELB	N/A	POA
053	CP050212	HANDLE REGULATOR	£9.83	Add
054	CP050222	CLIP	£3.59	Add
055	CP050228	KNOB HANDLE	£9.63	Add
056	CP050230	WASHER	£2.79	Add
058	CP053250	WASHER	£10.65	Add
060	CP050965	SCREW	£8.93	Add
061	CP053273A	BLADE ADAPTOR	£56.91	Add
063	CP053710	DECAL	£2.98	Add
065	CP053715	DECAL	£5.21	Add
068	CP053802	LABEL	N/A	POA
069	CP053806	LABLE	£3.59	Add
070	CP053813	DECAL	£12.55	Add
071	CP053859.05	LABEL	£15.94	Add
072	CP047142	CONTROL-THROTTLE	£27.30	Add
074	CP060640	SCREW	£3.31	Add
075	CP053842	LABEL	N/A	POA
076	CP052225	BLAST PIPE	£19.38	Add
077	CP047224	BAR	£16.77	Add
078	CP032924	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.31	Add
079	712-0692	HEX NUT	£3.10	Add
080	CP512575	SUPPORT	£10.44	Add
081	CP512724	SUPPORT	£4.76	Add
082	CP512577	LEVER	£7.22	Add
083	CP512578	LEVER	£7.51	Add
084	CP023595	Screw	£3.85	Add
085	CP060646	SCHWARZ VERZINKT	£3.70	Add
086	CP032926	WASHER A6.4 UNI 6593	£2.98	Add
087	CP044726	KNOB M6 DIN 985-8	£2.79	Add
088	752Z1P61MH	ENG.123 CC OHV VERTIC SHAFT 752Z1P61FI	£333.63	Add
089	746-04322	CBL:CHOKE:ZS:MARINA	£30.30	Add
090	710-04278	SCR:M6x45mm:DIN 7985	£4.00	Add
091	736-0685	WASHER	£3.26	Add
092	712-0691	HEX NUT M6 DIN 985	£2.66	Add
093	731-05575	SHRD:ENG:M3 BLACK	£40.89	Add
094	710-04577	SCR:MACH:M4-.7:10.00 PANPHI	£2.90	Add
17A	CP050127.23	HUB CAP	£10.78	Add
52A	CP050132.23	HUB CAP	£11.70	Add
61A	CP053274B.25	BLADE ADAPTER	£40.27	Add
88A	752Z1P61RH	ENGINE 123 CC OHV VERT, SHAFT	£333.63	Add
