MTD009516

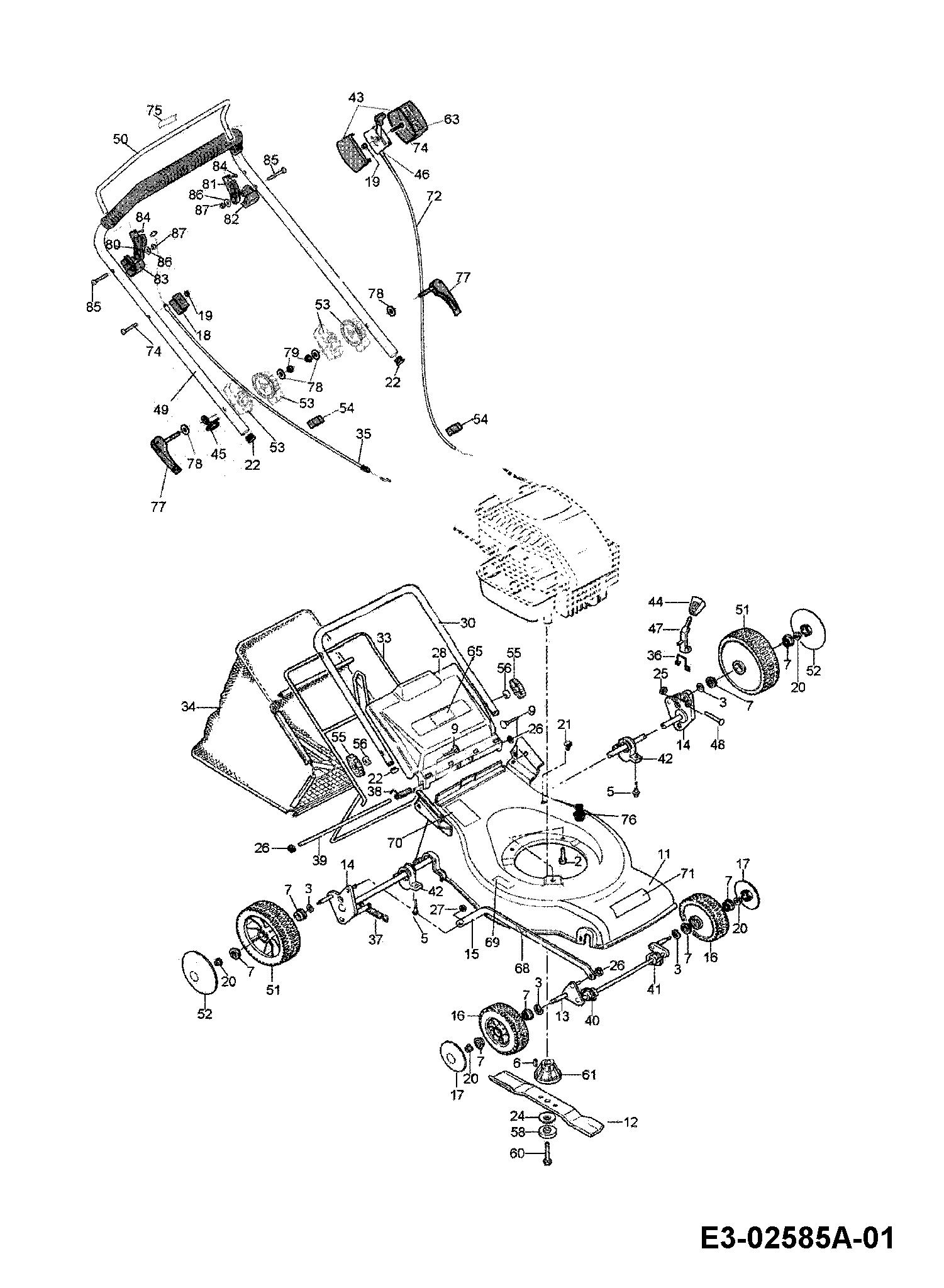

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009516

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 CP029525 SCREW £5.54 Add
003 CP032813 LOCK WASHER £2.29 Add
005 CP034615 RIVET AL 5,9X15 £2.97 Add
006 CP037406 KEY-WOODRUFF £3.89 Add
007 CP038227 BALL BEARING £8.16 Add
009 CP040850 SCREW N/A POA
011 CP047001.31 HOUSING £157.31 Add
012 CP047013 BLADE 47 460X55X4 £26.71 Add
013 CP047048 AXLE-FRONT PIVOT £65.66 Add
014 CP047053 AXLE £81.89 Add
015 CP047063 ROD-DISENGAGEMENT N/A POA
016 CP050106 WHEEL £29.58 Add
017 CP050127.31 COVER £8.38 Add
018 CP042216 CABLE HOLDERS £4.61 Add
019 CP042806 NUT HEXAGONAL M6 £3.11 Add
020 CP042808 SPECIAL NUT M8 £3.14 Add
021 CP045713 PLUG £3.38 Add
022 CP045722 CAP PLASTICS £3.11 Add
024 CP045911 WASHER £4.73 Add
025 CP046606 CLAMP RING £2.97 Add
026 CP046607 CP046607 £2.36 Add
027 CP046608 DISK N/A POA
028 CP047018 REAR FLAP £61.70 Add
030 CP047034 LOWER HANDLE £81.73 Add
033 CP047078 FRAME £62.16 Add
034 CP047083.0531 N/A POA
035 CP052149 CABLE ASSY-BRAKE £31.20 Add
036 CP047191 BRACKET SPRING £11.17 Add
037 CP047192 SPRING EXTENSION £16.29 Add
038 CP050192 LEG SPRING £11.20 Add
039 CP047203 HINGE PIN £11.62 Add
040 CP047212 AXLE BEARING £9.65 Add
041 CP047213 AXLE BEARING £9.65 Add
042 CP047214 AXLE BEARING £11.62 Add
043 CP047220 COVER £26.41 Add
044 CP047236 GRIP £10.41 Add
045 CP047242 CABLE BRACKET £7.82 Add
046 CP047250 LEVER-THROTTLE £30.66 Add
047 CP047255 CONTROL LEVER SHVS £33.85 Add
048 CP047267 PIN-FRIC DISC BRG £3.57 Add
049 CP051043 UPPER HANDLE £80.25 Add
050 CP052073 BRAKE BAIL £46.08 Add
051 CP050110 WHEEL £47.55 Add
052 CP050132.31 WHEELCOVER GELB N/A POA
053 CP050212 HANDLE REGULATOR £11.95 Add
054 CP050222 CLAMP,CABLE £3.44 Add
055 CP050228 WING NUT £11.62 Add
056 CP050230 WASHER £3.11 Add
058 CP053250 WASHER 10X50X5 £8.60 Add
060 CP050965 SCREW £10.89 Add
061 CP053273A BLADE ADAPTOR £46.14 Add
063 CP053710 LABEL £3.41 Add
065 CP053715 LABEL:WARNING:EXPLOSION RISK £6.00 Add
068 CP053802 LABEL N/A POA
069 CP053806 LABEL £4.33 Add
070 CP053813 LBL:IDENTIFICATION £11.49 Add
071 CP053859.05 LABEL £17.84 Add
072 CP047142 THROTTLE CABLE £34.76 Add
074 CP060640 SCREW M6 X 40 UNI 7687 £3.73 Add
075 CP053842 LABEL N/A POA
076 CP052225 BLAST PIPE £23.82 Add
077 CP047224 BAR £21.21 Add
078 CP032924 washer £3.73 Add
079 712-0692 HEX NUT £2.57 Add
080 CP512575 SUPPORT £9.04 Add
081 CP512724 SUPPORT £11.33 Add
082 CP512577 CABLE HOLDER L.H. £8.76 Add
083 CP512578 CABLE HOLDER R.H. £8.76 Add
084 CP023595 Screw £3.96 Add
085 CP060646 SCHWARZ VERZINKT £4.41 Add
086 CP032926 WASHER A6.4 UNI 6593 £2.59 Add
087 CP044726 KNOB M6 DIN 985-8 £3.46 Add
