MTD017024

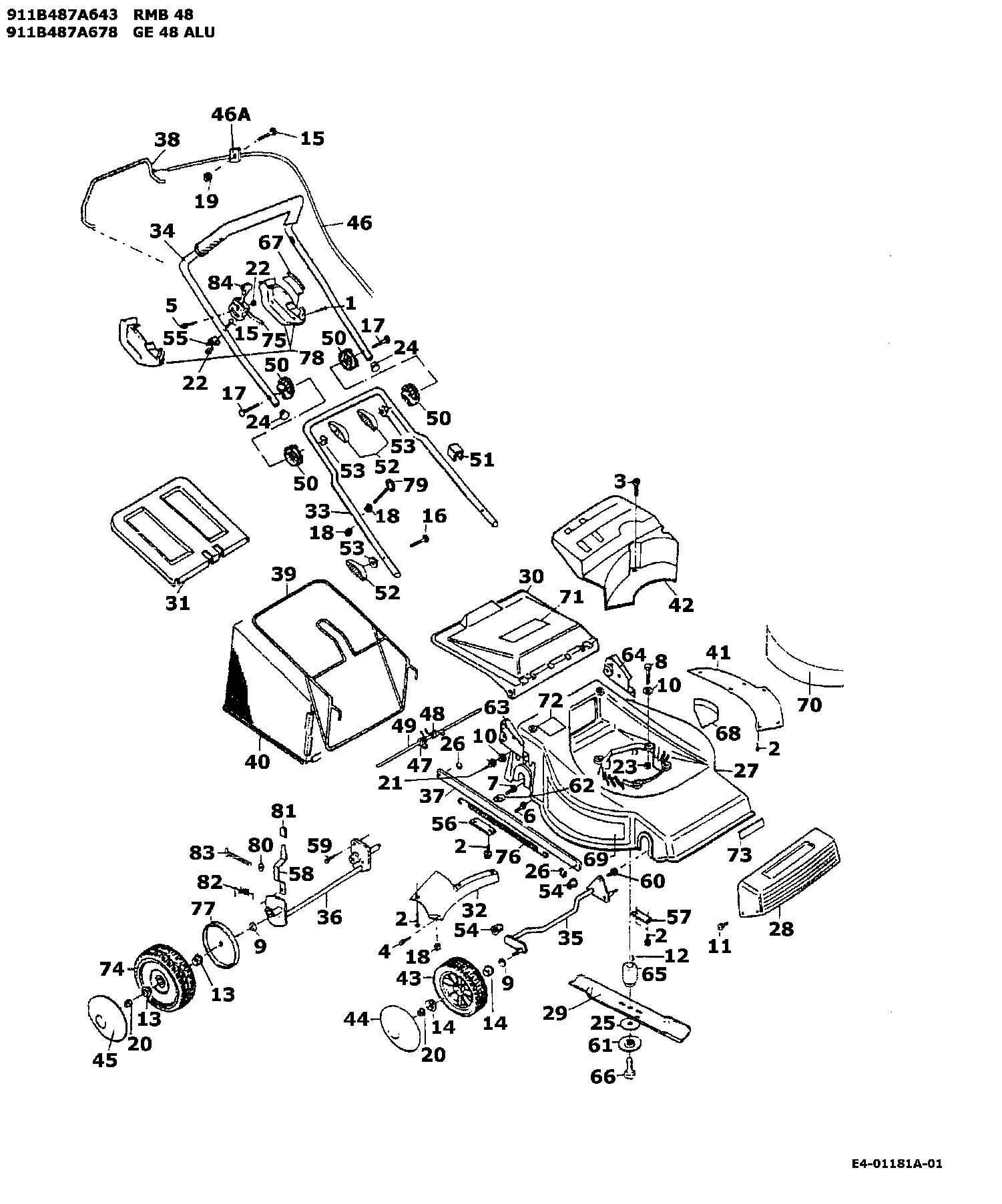

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017024

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 CP025040 SCREW M5X45 £3.57 Add
002 710-1690 HHCS:M6-1:16.00 £3.89 Add
003 CP026332 BOLT ASSY-HEX N/A POA
004 CP030516 SCREW N/A POA
005 CP030640 SCREW N/A POA
006 CP030816 BOLT ASSY-HEX £3.27 Add
007 CP030845 HEXAGON HEAD SCREW M8 X 45 £5.46 Add
008 CP030855 HEXAGON HEAD SCREW M8 X 55 N/A POA
009 CP032813 LOCK WASHER £2.29 Add
010 CP032908 WASHER £2.29 Add
011 CP034411 RIVET N/A POA
012 CP037406 KEY-WOODRUFF £3.89 Add
013 CP038226 SELF-ALIGNING BEARING £11.62 Add
014 CP038227 BALL BEARING £8.16 Add
015 CP040635 SCREW £3.27 Add
016 CP040850 SCREW N/A POA
017 CP040875 SCREW £3.89 Add
018 CP042805 NUT £2.81 Add
019 CP042806 NUT HEXAGONAL M6 £3.11 Add
020 CP042808 SPECIAL NUT M8 £3.14 Add
021 712-0692 HEX NUT £2.57 Add
022 CP044906 STOP NUT HEXAGONAL £3.15 Add
023 CP044908 NUT £3.12 Add
024 CP045722 CAP PLASTICS £3.11 Add
025 CP045918 WASHER BELL,.406x.75x.063 N/A POA
026 CP046904 Circlip £2.51 Add
027 CP050001 COVER N/A POA
028 CP050008 COVER N/A POA
029 CP050013 BLADE 47CM £21.80 Add
030 CP050018 Rear flap £72.96 Add
031 CP050023 COVER:GRASSBAG £60.91 Add
032 CP050028 LOWER DEFLECTOR £35.47 Add
033 CP050033 HANDLE £75.21 Add
034 CP050043 HANDLE £70.86 Add
035 CP050048 FRONT AXLE ASSY. £66.77 Add
036 CP050053 AXLE £69.49 Add
037 CP050063 ARM ASSY-LINKAGE N/A POA
038 CP050071 LEVER-SHIFT £21.89 Add
039 CP050078 FRAME £72.66 Add
040 CP050083 GRASS BAG TISSUE £99.79 Add
041 CP050093 SHIELD N/A POA
042 CP050096 GUARD BELT £68.96 Add
043 CP050108 WHEEL £41.62 Add
044 CP050128 HUB CAP £4.49 Add
045 CP050133 HUB CAP £11.64 Add
046 CP050146 CABLE £34.88 Add
047 CP050192 LEG SPRING £11.20 Add
048 CP050193 LEG SPRING £7.37 Add
049 CP050203 HATCHBACK ROD: 57cm DECK £11.30 Add
050 CP050212 HANDLE REGULATOR £11.95 Add
051 CP050222 CLAMP,CABLE £3.44 Add
052 CP050228 WING NUT £11.62 Add
053 CP050230 WASHER £3.11 Add
054 CP050232 bush £3.38 Add
055 CP050243 BRACKET-CABLE £5.98 Add
056 CP050246 BRKT:NEUT: RTN N/A POA
057 CP050250 BRACKET-DECK UP STOP ELECT £3.53 Add
058 CP047254 FORK,LIFT £35.06 Add
059 CP050256 ADJUSTING SCREW £7.34 Add
060 CP050258 PIN-FRIC DISC BRG £5.13 Add
061 CP050260 WASHER £16.29 Add
062 CP050266 WASHER £2.82 Add
063 CP050268 PLATE £35.90 Add
064 CP050269 BRACKET - HANDLE LH £41.85 Add
065 CP050272 BLADE SPINDLE £61.70 Add
066 CP050975 BLADE BOLT £9.96 Add
067 CP053710 LABEL £3.41 Add
068 CP053715 LABEL:WARNING:EXPLOSION RISK £6.00 Add
069 CP053740 LABEL N/A POA
070 CP053741 LABEL N/A POA
071 CP053760 LABEL N/A POA
072 CP053810 LABEL N/A POA
073 CP053910 LABEL N/A POA
074 CP056118 WHEEL ASSY £82.83 Add
075 CP056143 THROTTLE CABLE ASSEMBLY £34.76 Add
076 CP056192 SPRING EXTENSION £35.52 Add
077 CP056214 FLANGE N/A POA
078 CP056225 CONTROL-THROTTLE £36.89 Add
079 CP056242 GUIDE-ROPE £6.93 Add
080 CP046606 CLAMP RING £2.97 Add
081 CP047236 GRIP £10.41 Add
082 CP047191 BRACKET SPRING £11.17 Add
083 CP047267 PIN-FRIC DISC BRG £3.57 Add
084 CP047250 LEVER-THROTTLE £30.66 Add
46A CP042216 CABLE HOLDERS £4.61 Add
