MTD010665

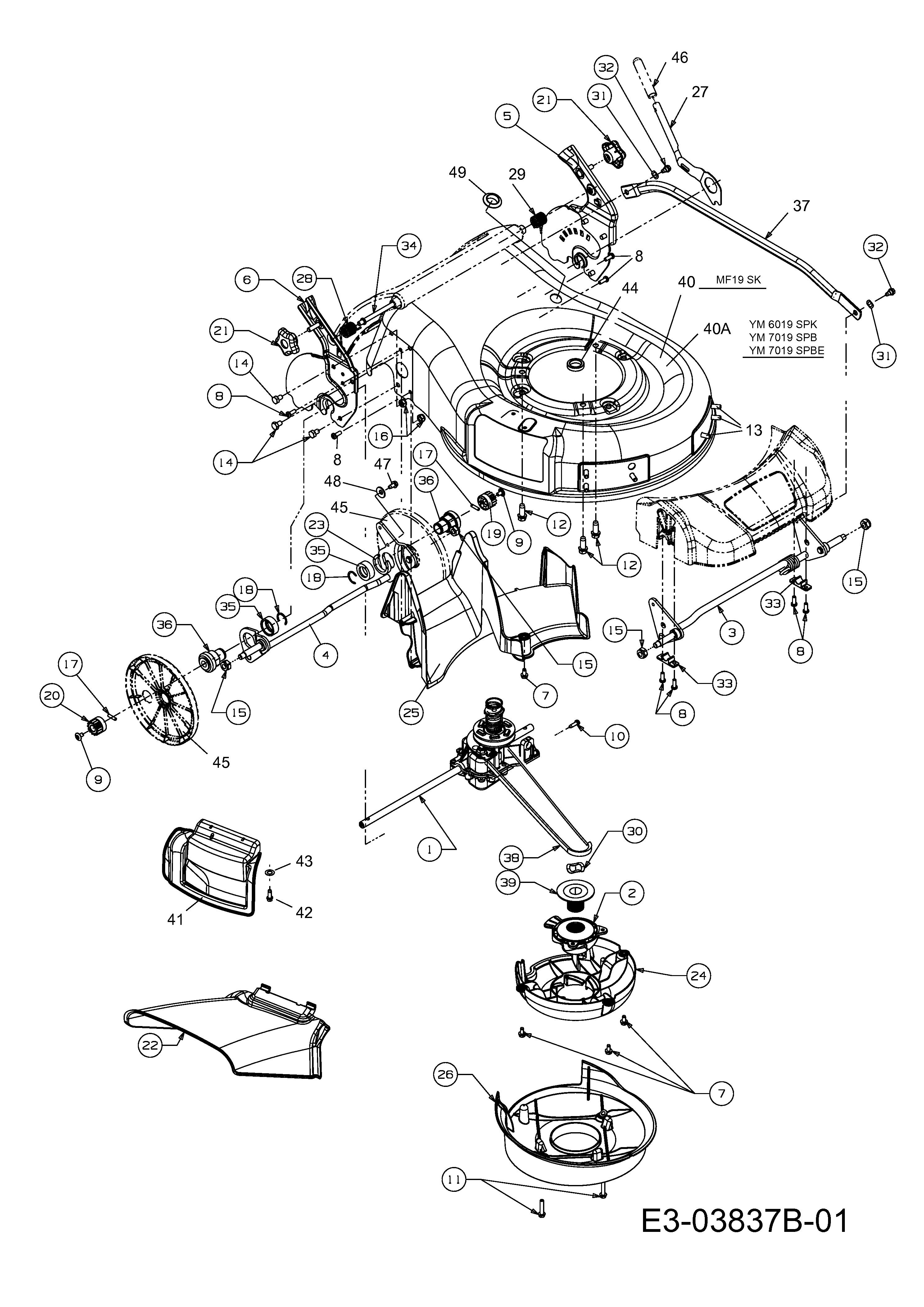

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04827A	TRANS ASM:19" XP	£173.09	Add
002	656-04046	PUL ASM:LOWER:TVS	£35.55	Add
003	687-02242637	BRACKET ASM:FRONT:19"	£29.03	Add
004	687-02249637	BRKT ASM:SP:CHA:19"	£28.42	Add
005	687-02328637	BRKT ASM:HNDL SP EXP	£31.04	Add
006	687-02329637	BRKT ASM:HNDL RH SP EXP	£29.44	Add
007	710-04203A	SCR:M6x1:12 MM:DIN 7500	£5.19	Add
008	710-04380	SCR:HI:M6-.37:16:PANTRXI	£4.22	Add
009	710-04531	SCR:1/4-20 x.390:PANTRXI	£4.29	Add
010	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
011	710-04774	BOLT ASSY-HEX	£4.80	Add
012	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
013	710-1242	SCREW	£9.01	Add
014	710-1714	Screw 21.1441.67	£2.93	Add
015	712-04074	NUT:HEX:M10x1.25 DIN 985	£2.79	Add
016	712-0692	HEX NUT	£3.10	Add
017	715-0221	DOWEL PIN:H.G.PROD. 3/16 x 3/4	£5.33	Add
018	716-0198	RING-RETAINING:.875	£3.24	Add
019	717-04540B	GEAR:SPUR:14T:LH	£25.20	Add
020	717-04539B	GEAR:SPUR:14T:RH	£25.20	Add
021	720-04072A	HAND RELEASE	£4.27	Add
022	731-04177	EJECTION FLAP	£26.81	Add
023	731-05872	SPCR:CLIP: 1.181 ID X .307 LG	£3.90	Add
024	731-06112A	VAR. BAFFLE	£30.63	Add
025	731-06190	BFL:REAR:SP:19"	£22.19	Add
026	731-06284	BAFFLE RING:800 & 19"	£25.20	Add
027	732-04338C	LEVER	£19.73	Add
028	732-04474A	TORSION SPRING R.H. REAR FLAP	£9.92	Add
029	732-04475A	TORSION SPRING L.H. REAR FLAP	£9.92	Add
030	736-0526	WASH:WAVE:.88 x 1.31 x .029	£8.68	Add
031	736-04413	WASH:WAVE:.385IDX.598 OD	£9.89	Add
032	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
033	741-0492A	BUSH:BLOCK:.505 DIA x.62	£3.95	Add
034	747-04589	ROD-DECK DOOR PIVOT	£9.12	Add
035	748-0390	SPCR:BRG SUPT:SP	£3.59	Add
036	748-04159	SUPT:BRG:TRANS:19"	£18.69	Add
037	749-04307637	ROD:T-DECK	£16.96	Add
038	754-04179A	BELT:V TYP:0.430 x 32.45"	£43.70	Add
039	756-04315A	PUL:HALF:UPPER:7/8	£19.98	Add
040	787-01629-FR	DECK:SD:19":HIGH WHL	£111.96	Add
041	687-02055	PLUG ASM:MULCH:HINGED	N/A	POA
042	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
043	736-0270	BELL WASHER	£3.91	Add
044	750-05009	SPACER:7/8 x 1.125 x .305	£9.65	Add
045	731-06157	CVR:DUST:8":SP:EXP	£5.00	Add
046	720-0230	GRIP:FOAM: .50 ID X 3.54" LG	£3.77	Add
047	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
048	736-0242	BELL WASHER	£3.72	Add
049	735-04059	GROM:RUBR:.77 ID x.91 OD x.35	£4.80	Add
40A	787-01629665	DECK:SD:19":HIGH WHL	£111.96	Add
