MTD009469

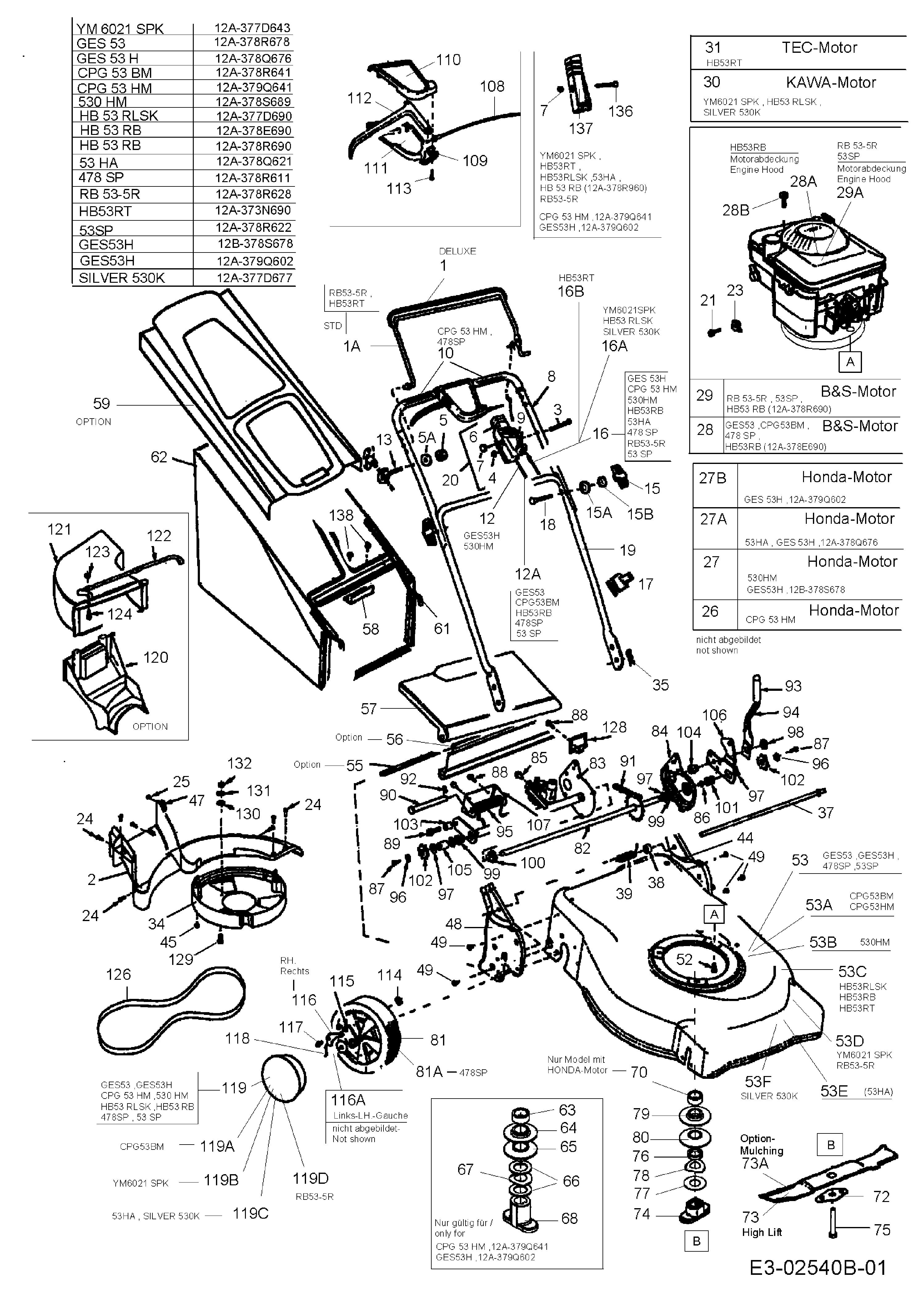

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0004	LVR:CONT:DELUXE	£47.81	Add
002	731-1639	BAFFLE:RR:21" RD	£64.20	Add
003	710-0605	SCR:MACH:1/4-20:1.825:OVALCSK	£3.44	Add
004	736-0501	SPRING WASHER (RED)	£4.00	Add
005	712-0691	HEX NUT M6 DIN 985	£2.66	Add
006	746-0875	THROTTLE BOX BODY	£17.98	Add
007	712-0324	HEX. INS L NUT	£3.69	Add
008	749-1405637	UPPER HANDLE	£40.61	Add
009	746-0876	LEVER-THROTTLE	£12.97	Add
010	720-0387	SHRINKABLE TUBE PHTALAT FREE	£12.60	Add
012	746-04131	CHOKE CABLE BLACK	£24.60	Add
013	782-7627A	EYE BOLT	£6.28	Add
015	720-0368	WING NUT	£5.19	Add
016	746-0556	CONTROL CABLE	£20.36	Add
017	731-2422	CABLE GUIDE	£3.59	Add
018	710-1719	BOLT	£4.89	Add
019	749-0907C637	NO LONGER AVAILABLE	N/A	POA
01A	747-0824637	BRAKE BAIL	£19.77	Add
020	811-0185	CONTROL-THROTTLE	£29.81	Add
021	710-1237	SCREW SELF TAP	£3.00	Add
023	751B213146	CASING CLAMP (OBSOLETE) (OBSOLETE)	N/A
024	710-1220	SCREW	£2.81	Add
025	710-1388	SCREW	£3.23	Add
026	752H880661	ENGINE HONDA GCV160 AS3H2 5,5H	N/A	POA
027	752H636760	MOTOR HONDA GCV 160 5.5 HP	£535.00	Add
028	752B1724B1	ENGINE B&S QUANTUM	N/A	POA
029	752B1904B1	ENGINE B&S QUANTUM	£393.96	Add
030	752S180S50	FH180V-AS50	£361.60	Add
031	752T45003	ENGINE	£392.35	Add
034	731-1714A	CVR:BELT:21" RD	£57.96	Add
035	714-0104	PIN INTERNAL COTTER	£2.78	Add
037	747-0922	LINK, PARALLEL	£18.71	Add
038	750-1068	SPACER-PULLEY	£3.39	Add
039	732-04074	TORSION SPRING	£3.90	Add
044	782-3029637	BRACKET-HANDLE LH	£66.52	Add
045	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
047	712-0400	U NUT	£5.75	Add
048	782-3030637	BRACKET - HANDLE RH	£60.08	Add
049	710-1017	TAP SCREW	£2.97	Add
052	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
053	682-0075638	NO LONGER AVAILABLE	N/A	POA
055	732-0700	LINK, PARALLEL	£3.59	Add
056	731-1236	TRSHD:4.30 X 17.66 LG	£43.32	Add
057	782-7599B637	REAR FLAP	£68.46	Add
058	782-9050	BRKT:MTG:GRSBG 21" RD	£52.99	Add
059	731-0068	HARDTOP COVER	£94.11	Add
05A	736-0668	WASHER	£2.23	Add
061	747-0919637	NO LONGER AVAILABLE	N/A	POA
062	664-0080	BAG-GRASS	£143.09	Add
063	750-04438A	SPACER-PULLEY	£22.60	Add
064	756-04161	PUL:HALF:UPR:25MM ID X 2.62 OD	£19.38	Add
065	756-04160	PUL:HALF:KEY:25MM ID X 2.62 OD	£20.18	Add
066	736-0250	WASH:FLAT:1.00x1.75x.107	£10.32	Add
067	736-04173	WASHER:SPR:1.005X1.825X.048	£9.83	Add
068	748-04082	ADAP:BLADE:25mm x 2.15 W/STAR	£39.84	Add
070	750-1260	BUSHING	£24.24	Add
072	736-0524B	SPR BLADE BELL	£8.61	Add
073	742-04364	BLADE	£35.13	Add
074	748-0377E	ADAPTER BLADE #6X2.15	£47.21	Add
075	710-1257	HEX BOLT	£6.85	Add
076	748-0358	SPACER:.880 ID x1.280 x.240	£3.69	Add
077	736-0514	WASH:FLAT:.885 x 1.850 x.060	£3.07	Add
078	736-0513	WASHER:SPR:.890 x 1.70 x .048	£11.29	Add
079	756-0962	PULLEY-HALF-UPPER	£9.50	Add
080	756-0979	PULLEY-HALF-LOWER	£22.89	Add
081	734-1979	WHEEL	£37.26	Add
082	638-0005	NO LONGER AVAILABLE	N/A	POA
083	682-7518637	TRANSMISSION AXLE	£101.97	Add
084	682-7524637	COVER ASS`Y - CHAIN	£44.19	Add
085	710-0604A	SCREW	£3.62	Add
086	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
087	710-0751	BOLT 069	£3.39	Add
088	710-0896	SCREW WITH WASHER ST	£4.97	Add
089	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
090	711-0835	CLEVIS PIN	£9.50	Add
091	713-0421	CHAIN ENDLESS	£14.21	Add
092	714-0474	PIN (RED)	£3.20	Add
093	720-0230	GRIP:FOAM: .50 ID X 3.54" LG	£3.77	Add
094	732-0803A	SPRING LEVER	£21.84	Add
095	732-0818	SPRING,EXT.1"	£27.80	Add
096	736-0270	BELL WASHER	£3.91	Add
097	736-0369	WASH:THRST:.508x1.000x.020	£2.97	Add
098	738-0529	NO LONGER AVAILABLE	N/A	POA
099	741-0324A	BEARING	£5.54	Add
100	741-0522	HEX FLANGE BEARING	£4.65	Add
101	741-0978	BEARING SLEEVE	£6.50	Add
102	748-0318	RATCHET WHEEL	£12.29	Add
103	750-0807	SPCR: .385 X.625 X.700	£3.07	Add
104	750-1056	SPACER-PULLEY	£15.90	Add
105	750-1075	NO LONGER AVAILABLE	N/A	POA
106	782-0566B637	ARM-MOUNTING	£23.30	Add
107	782-0568637	PLATE SPRING SHIFT	£16.26	Add
108	746-0713A	CABEL ADJ SP 52.5 inch	£23.84	Add
109	731-1059	CABLE MOUNTING CAP	£8.97	Add
110	731-1057	NO LONGER AVAILABLE	N/A	POA
111	731-1058	NO LONGER AVAILABLE	N/A	POA
112	731-0620A	LEVER	£13.21	Add
113	710-0841	SCREW	£4.89	Add
114	712-0414	WELD NUT 1/4-20 THREAD	£3.77	Add
115	16855	PAWL PLATE	£8.97	Add
116	748-0381	PAWL RH	£10.30	Add
116A	748-0188B	PAWL LH	£11.45	Add
117	738-0137A	BOLT	£8.58	Add
118	10622B	NYLON SPRING	£5.07	Add
119	720-0376662	WHEEL CAP	£8.10	Add
119A	720-0249	HUB CAP	£4.89	Add
119B	720-0376674	YARDMAN GELB	£8.93	Add
119C	720-0376637	SCHWARZ	£8.32	Add
119D	731-0982A	HUBCAP:WHL:RADIAL SPOKE BEIGE	£12.84	Add
120	731-1685	NO LONGER AVAILABLE	N/A	POA
121	731-1461	DEFLECTOR-CHUTE	£81.44	Add
122	747-0958	ROD:MT:21" SD CHUTE	£21.49	Add
123	712-0324	HEX. INS L NUT	£3.69	Add
124	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
126	754-0271	BELT-V	£18.38	Add
128	782-7018	PULLEY COVER	£20.81	Add
129	710-1026	SCREW	£3.91	Add
12A	746-0674A	CABLE-THROTTLE	£27.18	Add
130	736-0329	L. WASHER	£3.26	Add
131	736-3020	WASH:FLAT:.271 X.630 X.065	£2.98	Add
132	712-0287	NUT HEX	£3.31	Add
136	710-1270	SCR:MACH:1/4x20:1.310:OVALCSK	£3.44	Add
137	746-0883	BODY CABLE	£10.73	Add
138	710-0896	SCREW WITH WASHER ST	£4.97	Add
15A	736-0700	FLAT WASHER	£2.63	Add
15B	736-0689	L-WASHER	£3.26	Add
16A	746-1067	CABLE	£19.28	Add
16B	746-1066	CONTROL CABLE	£23.17	Add
27A	752H638591	ENGINE HONDA	N/A	POA
27B	752H639051	OHC - BLACK SHROUD/25MM KWELLE	N/A	POA
28A	731-1397A	SHROUD GRAY	£36.08	Add
28B	710-1256	SCR:HL:#8-18:1.250:PANPHI	£8.53	Add
29A	731-1694B	SHROUD:ENG:QUAN BLACK STYLE 3	£22.77	Add
53A	682-0075668	21" DECK ASS?? W/O MTD ICON	£109.16	Add
53B	682-0075720	21" DECK ASS?? W/O MTD ICON	£109.16	Add
53C	682-0075650	21" DECK ASS?? W/O MTD ICON	£109.16	Add
53D	682-0037665	NO LONGER AVAILABLE	N/A	POA
53E	682-0075674	DECK 21" YM YELLOW	£202.59	Add
53F	682-0075629	21" DECK ASS?? W/O MTD ICON	£202.59	Add
73A	742-04100	BLADE:20.75:MULCH W/STAR	£58.70	Add
81A	734-1821	WHL:COMPL:8x2 SWAV GRAY BB	£48.52	Add
