MTD016494

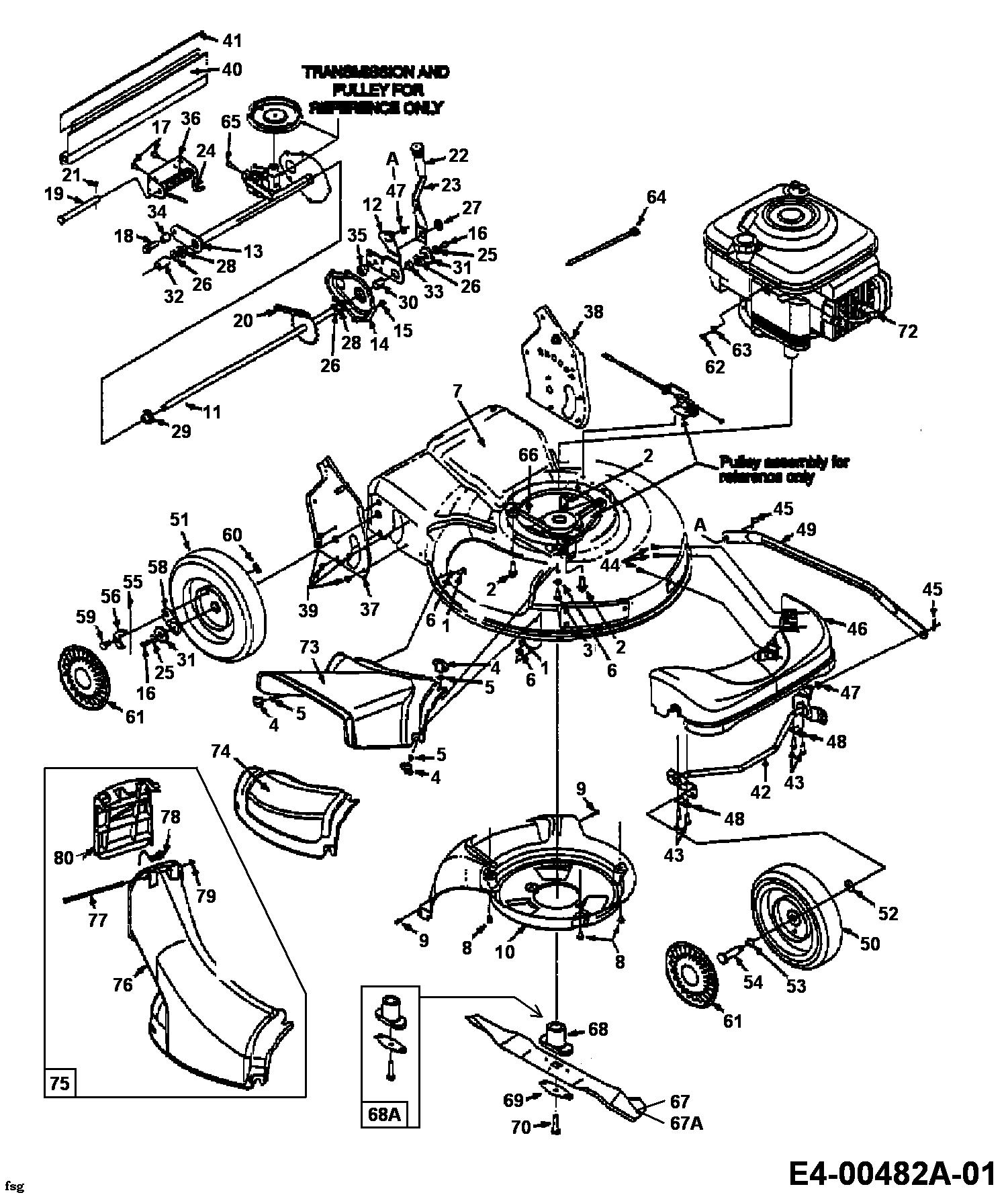

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016494

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 710-0134 BOLT £2.57 Add
002 710-0654A SCR:TTSEMS:3/8-16:1.000:HXLWSH £4.80 Add
003 710-0703 SCR:CRG:1/4-20:.75:GR5 £2.66 Add
004 712-0397A WING NUT £3.79 Add
005 HH-11-03172 BUSHING 723-0233 N/A POA
006 736-0204 F.I. WASHER £3.04 Add
007 782-0046 DECK 21" N/A POA
008 710-0653 HEX SCREW, 1/4-20 X 3/8" £3.61 Add
009 710-1220 SCREW £2.39 Add
010 731-08190A BAFFLE-REAR 21" BELT COVER £40.00 Add
011 638-0012 REAR AXLE ASSY. £72.29 Add
012 682-0531 ADJUSTING ARM £21.11 Add
013 682-7526 TRANS AXLE ASSY £224.78 Add
014 682-7528 CVR ASM:CHAIN:20/6 RATIO £81.56 Add
015 710-0653 HEX SCREW, 1/4-20 X 3/8" £3.61 Add
016 710-0751 BOLT 069 £2.68 Add
017 710-0896 SCREW WITH WASHER ST £3.55 Add
018 710-1315 SCR TT 3/8-16 1.250 HXINDWSH S £5.60 Add
019 711-0835 CLEVIS PIN £7.96 Add
020 713-0453 CHAIN ENDLESS £17.97 Add
021 714-0474 PIN (RED) £2.71 Add
022 720-0223 GRIP £8.84 Add
023 732-0803A SPRING LEVER £12.14 Add
024 732-0832 SPRING,EXT.1" £22.97 Add
025 736-0270 BELL WASHER £4.50 Add
026 736-0369 WASH:THRST:.508x1.000x.020 £2.49 Add
027 738-0529 NUT-SHLD N/A POA
028 741-0324A BEARING £4.66 Add
029 741-0522 HEX FLANGE BEARING £3.92 Add
030 741-0978 BEARING SLEEVE £5.46 Add
031 748-0318 RATCHET WHEEL £9.29 Add
032 750-0151 SPCR:.550IDx.750ODx1.125 £10.40 Add
033 750-0515 SPACER £17.73 Add
034 750-0807 SPCR: .385 X.625 X.700 £2.59 Add
035 750-1056 SPACER-PULLEY £5.86 Add
036 782-0568637 PLATE SPRING SHIFT £19.56 Add
037 682-3052 HANDLE BRKT ASSY RH £44.47 Add
038 682-3053 HANDLE BRACKET ASSY. LEFT £40.87 Add
039 710-1348 SCR:AB:1/4-14:0.500:TRUSTRXI £2.68 Add
040 731-1901A TRSHD:MWR:4.30 X 17.25 LG 731-1901 £39.44 Add
041 732-0842 TRAIL SHIELD WIRE £19.43 Add
042 611-0064 FRONT AXLE ASSY. £63.98 Add
043 710-1241 SCR:HL:1/4-15:1.000:HXINDWSH £3.41 Add
044 710-1242 SCREW £7.55 Add
045 714-0104 PIN INTERNAL COTTER £2.36 Add
046 731-1829 FRONT AXLE COVER YELLOW £88.31 Add
047 736-0286 WASHER - SPECIAL 1552-008 £3.89 Add
048 741-0492A BUSH:BLOCK:.505 DIA x.62 £3.93 Add
049 782-0565 CONTROL ARM £36.33 Add
050 734-1978 WHEEL 8 X 2" £27.26 Add
051 734-1981A WHEEL COMPLETE £23.53 Add
052 736-0105 BELL WASHER £2.82 Add
053 736-0504 WAVE WASHER £1.26 Add
054 738-0102 SHOULDER BOLT £5.54 Add
055 10622B NYLON SPRING £4.27 Add
056 748-0381 PAWL RH £8.62 Add
057 748-0188B PAWL LH £9.58 Add
058 16855 PAWL PLATE £7.51 Add
059 738-0137A BOLT £7.19 Add
060 712-0414 WELD NUT 1/4-20 THREAD £3.18 Add
061 731-1426A HUBCP:WHL:RADIAL SPOKE YELLOW 731-1426 N/A POA
062 710-1237 SCREW SELF TAP £2.38 Add
063 751B213146 CASING CLAMP £3.32 Add
064 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
065 710-0604A SCREW £3.50 Add
066 754-0460 V-BELT £29.08 Add
067 742-0741A637 BLADE 21 INCH MULCH W/STAR BLACK £26.08 Add
068 748-0377E ADAPTER BLADE #6X2.15 £39.35 Add
069 736-0524B SPR BLADE BELL £6.46 Add
070 710-1257 HEX BOLT £5.75 Add
072 735-0639 INSULATOR-SPARK PLUG (OBSOLETE) N/A POA
073 731-1832 SIDE DISCHARGE CHUTE £30.07 Add
074 731-1833A EJECTION FLAP £35.55 Add
075 631-0066 CHUTE £82.79 Add
076 631-0066 CHUTE £82.79 Add
077 747-0965 ROD:PVT:CHUTE DOOR £5.40 Add
078 732-0819 SPRING-TORSION £5.40 Add
079 726-0111 CAP £3.89 Add
080 731-1874 EJECTION FLAP £36.01 Add
67A 742-04364 BLADE £29.29 Add
68A 753-0609 BLADE ADAPTER SERVICE KIT £48.30 Add
