MTD007796

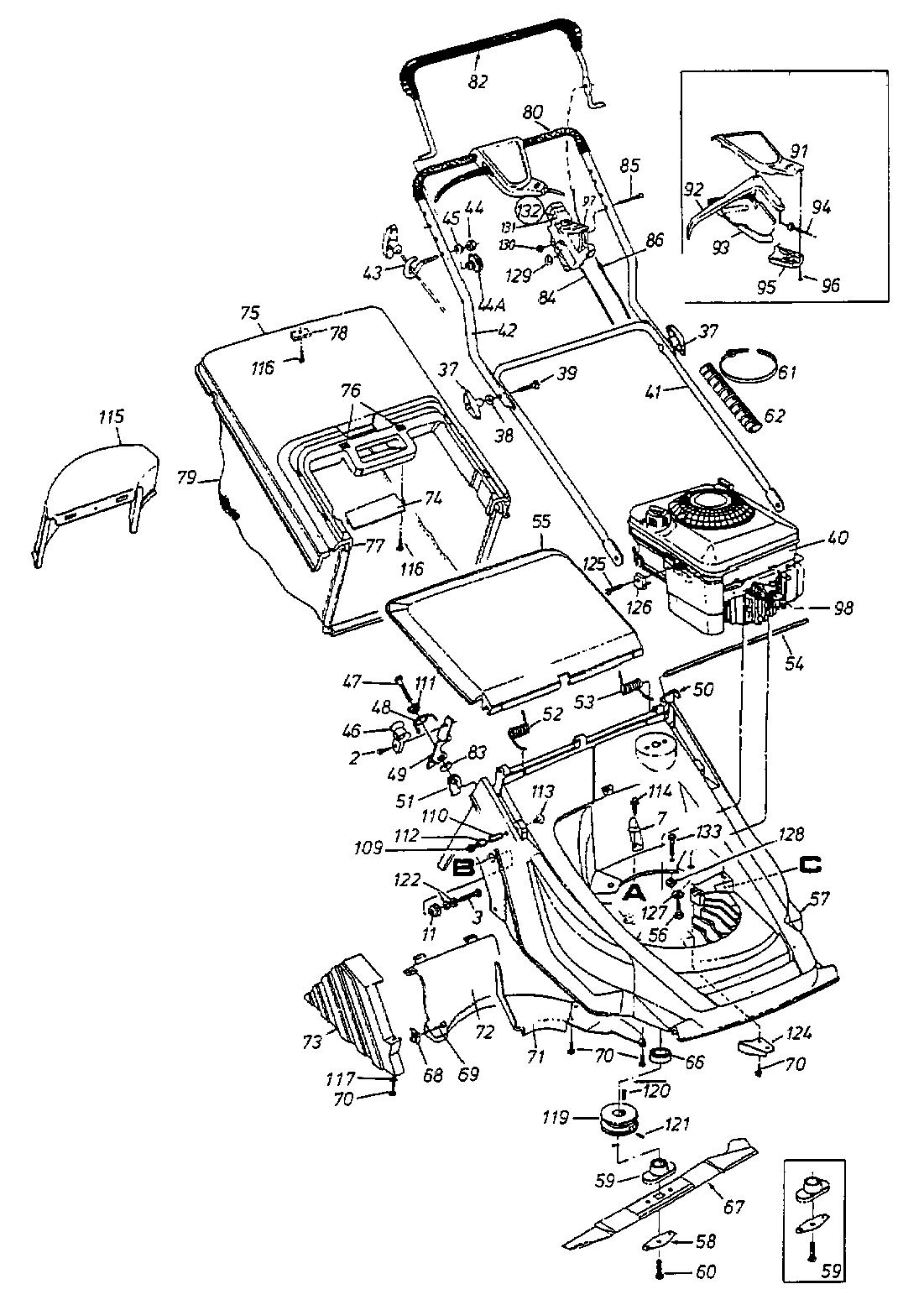

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
003	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
007	736-0270	BELL WASHER	£3.91	Add
011	750-0812	NO LONGER AVAILABLE	N/A	POA
037	720-0368	WING NUT	£5.19	Add
038	736-0689	L-WASHER	£3.26	Add
039	710-1375	SCREW	£3.69	Add
040	752B2269E1	ENG:B&S 4.0HP QUATRO	N/A	POA
041	749-0817637	NO LONGER AVAILABLE	N/A	POA
042	749-0816	NO LONGER AVAILABLE	N/A	POA
043	710-1205	ROPE GUIDE	£3.26	Add
044	712-0324	HEX. INS L NUT	£3.69	Add
045	736-0119	LOCK WASHER 5/16	£3.33	Add
046	719-0279	GUIDE STARTER ROPE	£9.50	Add
047	710-0874	HHCS:5/16-18:1.25:GR5:SPEC	£3.20	Add
048	732-0646	SPRING-HDLE LATCH RH	£8.32	Add
049	17748A637	NO LONGER AVAILABLE	N/A	POA
050	17749637	LOCK-HANDLE-LH 17749	£20.99	Add
051	726-0211	U NUT	£3.96	Add
052	732-0654	SPRING RH	£7.75	Add
053	732-0653	NO LONGER AVAILABLE	N/A	POA
054	747-0773	NO LONGER AVAILABLE	N/A	POA
055	731-1105	DOOR-CHUTE EURO	£62.38	Add
056	710-1008	NO LONGER AVAILABLE	N/A	POA
057	731-1103*	NO LONGER AVAILABLE	N/A	POA
058	736-0524B	SPR BLADE BELL	£8.61	Add
059	811-00248	BLADE LOCK ADAPTER-KIT	£40.38	Add
060	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
061	726-0240	TIE:CBL:3/16:7.0 LG	£4.13	Add
062	731-0759	CDT:CNVLT:.625 I.D.	£3.82	Add
066	750-0968	NO LONGER AVAILABLE	N/A	POA
067	742-0638	18 INCH BLADE	£26.40	Add
068	712-0400	U NUT	£5.75	Add
069	710-1388	SCREW	£3.23	Add
070	710-1220	SCREW	£2.81	Add
071	17740637	SPIRAL BAFFLE	£53.34	Add
072	731-1109	PANEL HANDLE	£29.01	Add
073	731-1110	NO LONGER AVAILABLE	N/A	POA
074	731-1113	DRAWBAR	£8.32	Add
075	731-1107	COVER-HARDTOP EURO	£78.26	Add
076	720-0272	CATCH-MAGNETIC	£13.24	Add
077	747-0538637	chassis 747-0538	£34.74	Add
078	17801-Z	NO LONGER AVAILABLE	N/A	POA
079	764-0273	BAG GRASS	£115.29	Add
080	720-0387	SHRINKABLE TUBE PHTALAT FREE	£12.60	Add
082	647-0004	LVR:CONT:DELUXE	£47.81	Add
083	736-0242	BELL WASHER	£3.72	Add
084	746-1009	THROTTLE CONTROL WIRE	£14.70	Add
085	710-0605	SCR:MACH:1/4-20:1.825:OVALCSK	£3.44	Add
086	746-1007	NO LONGER AVAILABLE	N/A	POA
091	731-1057	NO LONGER AVAILABLE	N/A	POA
092	731-0620A	LEVER	£13.21	Add
093	731-1058	NO LONGER AVAILABLE	N/A	POA
094	746-1006	6SPD ADJUSTING CABLE	£23.87	Add
095	731-1059	CABLE MOUNTING CAP	£8.97	Add
096	710-0841	SCREW	£4.89	Add
097	746-0876	LEVER-THROTTLE	£12.97	Add
098	735-0639	NO LONGER AVAILABLE	N/A	POA
109	710-1131	SCREW	£5.70	Add
110	750-0816	NO LONGER AVAILABLE	N/A	POA
110A	750-0817	spacer	£9.01	Add
111	738-0839	bush oilite	£6.01	Add
112	750-0503	SPACER	£3.33	Add
113	712-0399	NUT-PROPEL	£6.73	Add
114	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
115	731-1112	NO LONGER AVAILABLE	N/A	POA
116	710-1220	SCREW	£2.81	Add
117	736-3034	NO LONGER AVAILABLE	N/A	POA
119	756-0554A	2.62 DIA PULLEY	£70.01	Add
120	714-3009	SQUARE KEY	£3.33	Add
121	710-0497	THREADED PIN	£3.70	Add
122	736-0169	L. WASHER	£2.89	Add
124	17513637	BRACKET-BELT KEEPER 17513	£11.55	Add
125	710-1237	SCREW SELF TAP	£3.00	Add
126	731-2219	Clamp 079.11.346	£12.02	Add
127	736-0105	BELL WASHER	£3.33	Add
128	712-3027	LOCK NUT	£2.79	Add
129	736-0501	SPRING WASHER (RED)	£4.00	Add
130	712-0324	HEX. INS L NUT	£3.69	Add
131	746-0875	THROTTLE BOX BODY	£17.98	Add
132	811-0185	CONTROL-THROTTLE	£29.81	Add
133	710-0578	NO LONGER AVAILABLE	N/A	POA
134	752B1752E1	ENG:QUANTUM 5.0HP	N/A	POA
134A	751B281451	SHRD-ENG-XTL-OYSTERGRAY	£130.65	Add
134B	731-1396A	ENGINE HOOD	£62.98	Add
134C	751B224511	GUARD-FLYWHEEL	£8.17	Add
134D	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
134E	751B224437	EXHAUST PROTECTION	£39.98	Add
134F	710-1268	SCREW HEX WASHER HD TAPP	£3.26	Add
135	752B1774E1	ENG:QUANTUM 5.5HP	N/A	POA
135A	751B224511	GUARD-FLYWHEEL	£8.17	Add
135B	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
136	752B1756E1	ENG:QUAN 5.5HP	N/A	POA
136A	751B281451	SHRD-ENG-XTL-OYSTERGRAY	£130.65	Add
136B	751B224437	EXHAUST PROTECTION	£39.98	Add
137	752B1775E1	ENG:QUAN 6.0HP I/C	N/A	POA
137A	751B493017	CAP FUEL TANK	N/A	POA
138	752B065601	ENG:QUANTUM 5.0HP (ELEC)	N/A	POA
40A	751B281476	SHROUD:ENG:QUATRO	£28.34	Add
44A	720-0279	WING NUT	£2.99	Add
48A	732-0647	SPRING-HDLE LATCH LH	£7.82	Add
55A	731-1548	NO LONGER AVAILABLE	N/A	POA
55B	731-1842	CHUTE DOOR	£85.54	Add
57A	731-1547*	NO LONGER AVAILABLE	N/A	POA
57B	111.11.114	NO LONGER AVAILABLE	N/A	POA
73A	731-1111	NO LONGER AVAILABLE	N/A	POA
75A	731-1549	COVER-HARDTOP 18"RD	£80.18	Add
75B	731-1843	HARDTOP COVER	£98.90	Add
79A	764-0467	NO LONGER AVAILABLE	N/A	POA
83A	736-0700	FLAT WASHER	£2.63	Add
