MTD008583

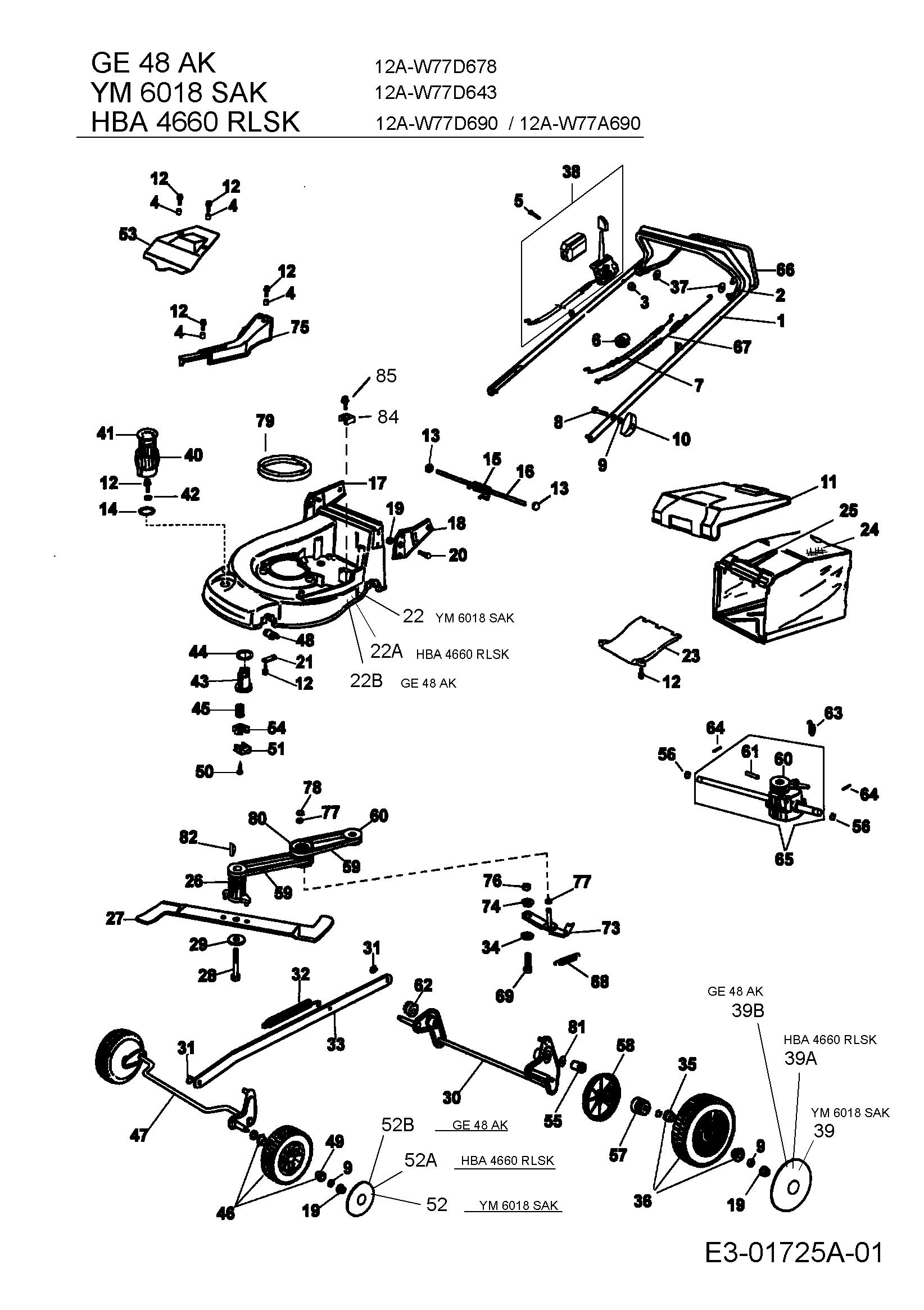

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	EM-66060163	HANDLE	£144.01	Add
002	EM-66060106	BRAKE LEVER	£46.97	Add
003	712-0691	HEX NUT M6 DIN 985	£2.66	Add
004	EM-66060110	BUSHING	£3.20	Add
005	EM-3801028	SCREW	£3.58	Add
006	EM-66030016	FAIRLEAD	£5.81	Add
007	EM-66060181	BRAKE CABLE	£33.67	Add
008	710-1375	SCREW	£3.69	Add
009	736-0700	FLAT WASHER	£2.63	Add
010	EM-4119013A	KNOB	£11.74	Add
011	EM-66060059	COVER (RED)	£65.29	Add
012	EM-3960031	SCREW	£3.39	Add
013	EM-3045027	CLIP	£2.98	Add
014	EM-66060118	SPACER	£5.81	Add
015	EM-66060060	SPRING	£8.32	Add
016	EM-66060055	PIN	£11.15	Add
017	EM-66060026	ATTACHMENT	£56.97	Add
018	EM-66060025	ATTACHMENT	£56.97	Add
019	712-0692	HEX NUT	£3.10	Add
020	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
021	EM-66060008	PLATE	£5.91	Add
022	EM-66090060	DECK	£363.56	Add
023	EM-66062096	COVER	£29.73	Add
024	EM-66060188	GRASS BAG	£72.07	Add
025	EM-66060078	FRAME	£108.81	Add
026	EM-66060131	HUB	£64.79	Add
027	EM-66090006B	BLADE (RED)	£81.18	Add
028	EM-3906162	NO LONGER AVAILABLE	N/A	POA
029	EM-66060130	NO LONGER AVAILABLE	N/A	POA
030	EM-66060024A	HINTERACHSE	£174.84	Add
031	EM-3026007	SNAP RING	£2.40	Add
032	EM-66060043	SPRING	£24.60	Add
033	EM-66090005	LEVER	£38.88	Add
034	EM-3918013	WASHER	£2.79	Add
035	EM-66030057	BEARING	£11.84	Add
036	EM-66060005	WHEEL (REAR) (RED)	£83.70	Add
037	EM-011500019	RETAINER	£9.98	Add
038	EM-66060178	LEVER COMPLETE	£96.11	Add
039	EM-66060192	HUB CAP (RED)	£10.83	Add
040	EM-66060041R	KNOB	£21.33	Add
041	EM-66060040A	CAP (OBSOLETE)	N/A
042	736-0685	WASHER	£3.26	Add
043	EM-66060037A	FEMALE THREAD (OBSOLETE)	N/A
044	EM-66060038	WASHER	£7.30	Add
045	EM-66060039A	ADJUSTER SCREEN (OBSOLETE)	N/A
046	EM-66110283	WHEEL FRONT CASTER EM-66030077	N/A	POA
047	EM-66060020	FRONT AXLE	N/A	POA
048	EM-66060007	COLLAR	£6.32	Add
049	EM-66030081	BEARING	£11.84	Add
050	EM-3960040	NO LONGER AVAILABLE	N/A	POA
051	EM-66060034	COLLAR	£35.06	Add
052	EM-66060190	COVER (OBSOLETE)	N/A
053	EM-66062027	COVER (OBSOLETE)	N/A
054	EM-66060035	HUB	£35.06	Add
055	EM-66060030	BUSHING	£11.05	Add
056	SG-144590	CIRCLIPS D=12 UNI 7435	£3.39	Add
057	EM-66060031	GEAR LEFT	£43.70	Add
058	EM-66060029A	RADABDECKUNG	£12.69	Add
059	EM-3047006	BELT	£38.50	Add
060	EM-66030042	PULLEY	£29.73	Add
061	25.3197.96	Clamping sleeve	£5.10	Add
062	EM-66060032	RIGHT GEAR	£37.98	Add
063	EM-66060044	SPRING	£19.17	Add
064	EM-66060010	PIN	£4.70	Add
065	EM-66060366B	GEAR CASE ASSY	£344.48	Add
066	EM-66060105	LEVER	£38.26	Add
067	EM-66060058C	CABLE	£60.56	Add
068	EM-66060056	SPRING	£8.87	Add
069	EM-3806067	SCREW	£3.20	Add
073	EM-66060083	BRACKET ASSY-TORQUE	£41.88	Add
074	EM-66060088	HUB	£9.43	Add
075	EM-66062026	COVER	£34.95	Add
076	712-0692	HEX NUT	£3.10	Add
077	24.6483.72	WASHER, FLAT EM-3916010	£2.70	Add
078	28.3591.10	Circlip	£2.04	Add
079	EM-66060179	SPACER	£55.45	Add
080	EM-8203095	VARIATOR	£196.77	Add
081	EM-8202311	WASHER	£3.20	Add
082	EM-8202126R	KEY	£5.00	Add
083	EM-66060178	LEVER COMPLETE	£96.11	Add
084	EM-66060091	KABELKLEMME	£14.57	Add
085	EM-3960031	SCREW	£3.39	Add
22A	EM-66090059	DECK	£363.56	Add
22B	EM-66090002	DECK	£402.38	Add
39A	EM-66060191	COVER	£10.32	Add
39B	EM-66060191	COVER	£10.32	Add
52A	EM-66060189	COVER	£8.82	Add
52B	EM-66060189	COVER	£8.82	Add
