MTD008159

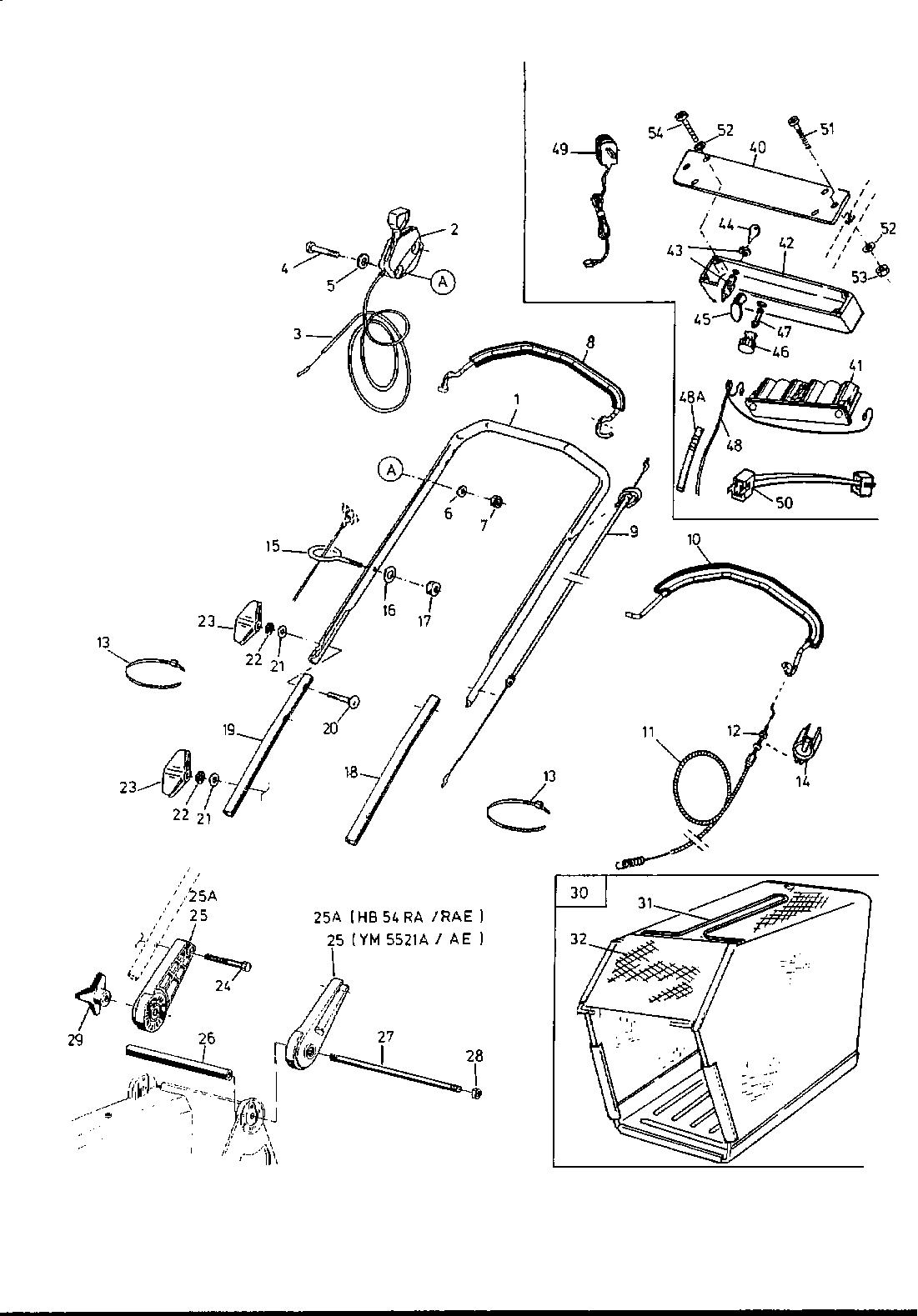

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008159

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 749-1217637 UPPER HANDLE (OBSOLETE) N/A POA
002 079.13.632 THROTTLE LEVER ASSY £30.01 Add
003 746-0992 THROTTLE CONTROL WIRE 746-0990 £16.50 Add
004 710-04603 SCR:M6x50mm:DIN 7985 £3.10 Add
005 736-0685 WASHER £2.76 Add
006 736-0668 WASHER £1.91 Add
007 712-0691 HEX NUT M6 DIN 985 £1.28 Add
008 747-1064 BRAKE BAIL £58.06 Add
009 746-1051 CABLE BRAKE £18.52 Add
010 747-1051637 CONTROL LEVER £18.27 Add
011 746-1061 DRIVE CABLE £30.95 Add
012 24.1423.14 Nut £3.41 Add
013 726-04055 CABLE TIE 000.70.563 £3.89 Add
014 731-1821 HOLDER, DRIVE CABLE £2.79 Add
015 782-7627A EYE BOLT £5.24 Add
016 736-0668 WASHER £1.91 Add
017 712-0691 HEX NUT M6 DIN 985 £1.28 Add
018 749-1218637 HANDLE TUBE £13.61 Add
019 749-1223637 HANDLE TUBE £13.61 Add
020 710-1719 BOLT £4.12 Add
021 736-0700 FLAT WASHER £1.90 Add
022 736-0689 L-WASHER £2.66 Add
023 720-0368 WING NUT £4.36 Add
024 710-1712 SCREW HEX M5x12 DIN 933-8.8 21.1441.80 N/A POA
025 782-3083665 HANDLE RETAINER £34.68 Add
026 750-1127 SPACER £27.73 Add
027 747-1067 ROD £11.45 Add
028 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.57 Add
029 631-0133 HANDLE GRIP £19.35 Add
030 812-00884 SACK CPL. £185.01 Add
031 747-1054637 GRASS BAG FRAME £66.67 Add
032 764-0528A GRASSBAG BLACK 764-0528 (OBSOLETE) (OBSOLETE) N/A POA
040 782-9089637 SUPPORT £17.76 Add
041 725-1276 BATTERY PACK 990SPE £97.49 Add
042 731-0891A (OBSOLETE) N/A POA
043 725-0873 KEY SWITCH £34.30 Add
044 725-0201 IGNITION KEY £5.44 Add
045 725-1206 PLUG £8.93 Add
046 725-1428 FUSE BOX £19.32 Add
047 725-0298 FUSE:7.5 AMP .250 X 1.250 £4.29 Add
048 725-1442 WIRE HARNESS £61.66 Add
049 EP93 CHARGER MTD ROTARY MOWER (RED) £23.94 Add
050 092.31.336 EXT. HARNESS £19.02 Add
051 710-1396 SCREW M6x35 DIN 7985-4.8 £2.87 Add
052 736-0668 WASHER £1.91 Add
053 712-0691 HEX NUT M6 DIN 985 £1.28 Add
054 000.02.494 Screw £4.25 Add
25A 782-3083650 HANDLE RETAINER £37.40 Add
48A 079.11.422 PROTECTION TUBE £18.03 Add
