MTD008158

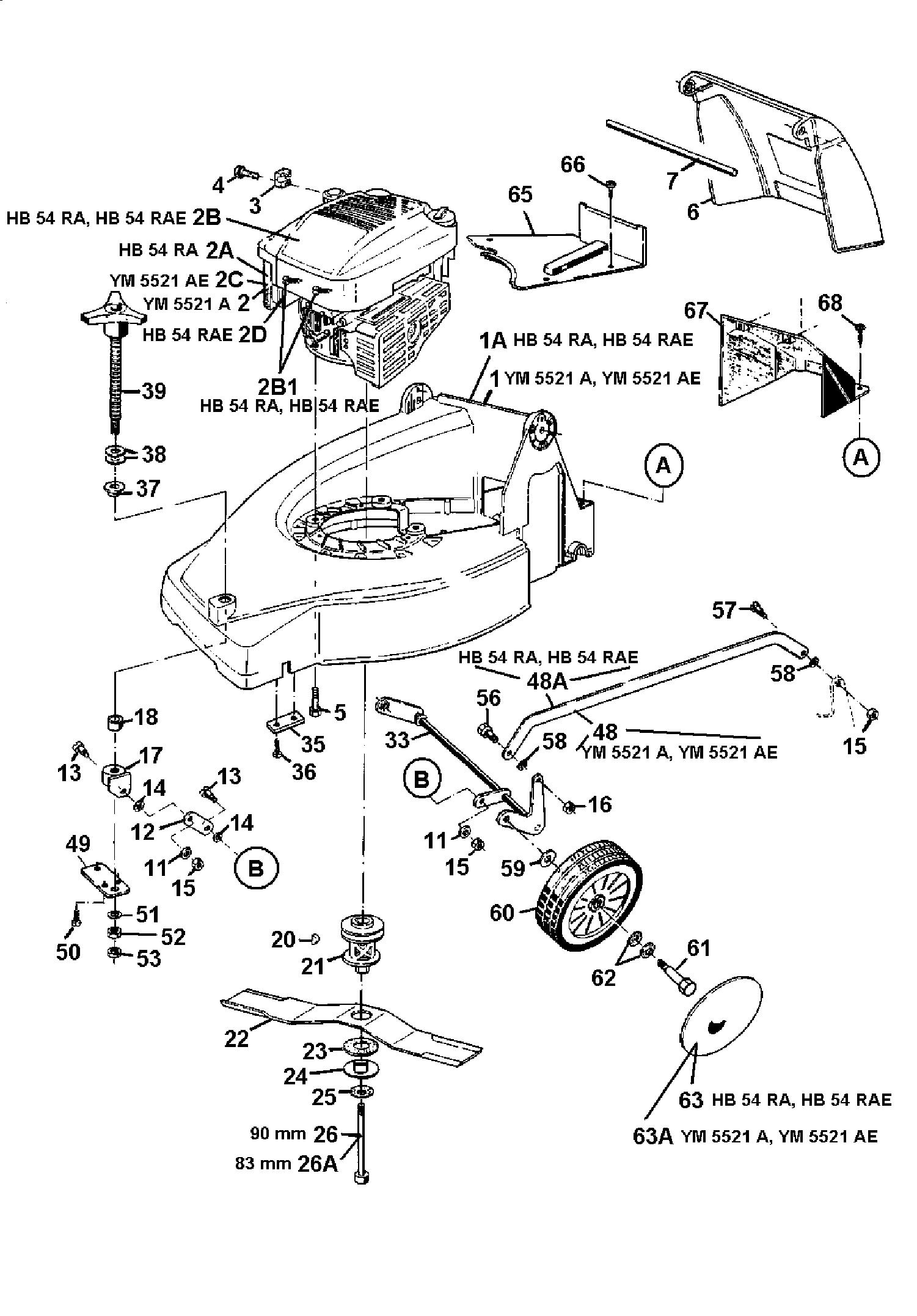

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD008158

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 782-0351665 DECK RED METALLIC £353.04 Add
002 752B1779B1 ENGINE £568.07 Add
003 731-2219 Clamp 079.11.346 £10.41 Add
004 710-1237 SCREW SELF TAP £2.38 Add
005 710-1008 SCR:TTSEMS:3/8-16:1.875:HXLWSH N/A POA
006 631-0127637 REAR FLAP ASM £61.03 Add
007 747-1053 ROD: REAR FLAP £10.09 Add
011 736-0661 WASHER A 5,3 DIN 9021 £3.18 Add
012 782-0635 LEVER £3.96 Add
013 710-1710 SCREW £5.40 Add
014 736-0694 WAVED SPRING WASHER B7 DIN 137 £4.41 Add
015 712-0675 NUT:HEX:M5 x.80:DIN 985 £7.46 Add
016 712-0691 HEX NUT M6 DIN 985 £1.28 Add
017 682-0256 ADJ:LVR:FRT: WHITE FINGER GRIP £52.34 Add
018 731-2376 BUSHING £4.33 Add
01A 782-0351650 DECK RED METALLIC £225.22 Add
020 25.5239.09 DISC SPRING £3.90 Add
021 748-0878 BLADE ADAPTER (OBSOLETE) N/A POA
022 742-0814 MOWER BLADE 21" £56.02 Add
023 736-0752 WASHER £7.37 Add
024 782-7051 LOCK PLATE £5.88 Add
025 CP045911 WASHER £4.73 Add
026 710-1751 BOLT £12.43 Add
02A 752B1771B1 ENGINE 12H802-1771-B1 £553.98 Add
02B 751B281451 SHRD-ENG-XTL-OYSTERGRAY £147.04 Add
02C 752B1780E1 ENGINE 6HP YM ELEC 5#2 N/A POA
02D 752B1770B1 ENG:B&S:6.0HP QUANX R5 #6 N/A POA
033 682-0249 FRONT AXLE ASM £110.61 Add
035 782-0628 AXLE HOLDER FRONT £2.82 Add
036 000.02.585 Screw 000.02.398 £3.47 Add
037 731-2217 BUSHING £2.92 Add
038 000.20.650 WASHER £4.48 Add
039 631-0134 HEIGHT ADJUSTER BOLT £24.34 Add
048 682-0250665 ROD YARDMAN GREEN £16.30 Add
049 782-0627 PLATE £4.36 Add
050 000.02.585 Screw 000.02.398 £3.47 Add
051 24.6273.22 Distance shim £3.23 Add
052 712-0692 HEX NUT £2.57 Add
053 24.1423.18 Nut N/A POA
056 710-1753 HEX. SCREW:DIN 933-8.8 M6x20mm £3.41 Add
057 710-1723 SCREW £3.89 Add
058 736-0694 WAVED SPRING WASHER B7 DIN 137 £4.41 Add
059 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.76 Add
060 734-1906637 WHEEL Ò 200mm: BB: WAVE: BLACK £33.80 Add
061 738-1033 AXLE BOLT £5.43 Add
062 24.8295.10 Lock washer £4.82 Add
063 720-0360674 HUBCAP Ò152 O-GREY GUTBROD-LOG N/A POA
065 731-2159637 BELT PROTECTION £19.09 Add
066 000.02.412 Screw £4.29 Add
067 731-2158 PROTECTION REAR £10.45 Add
068 000.02.604 SCREW 000.02.584 N/A POA
26A 710-1751 BOLT £12.43 Add
2B1 710-1256 SCR:HL:#8-18:1.250:PANPHI £2.23 Add
48A 682-0250650 ROD RED METALLIC £16.30 Add
63A 720-0357662 HUBCAP Ò152 O-GREY GUTBROD-LOG £17.61 Add
