MTD010582

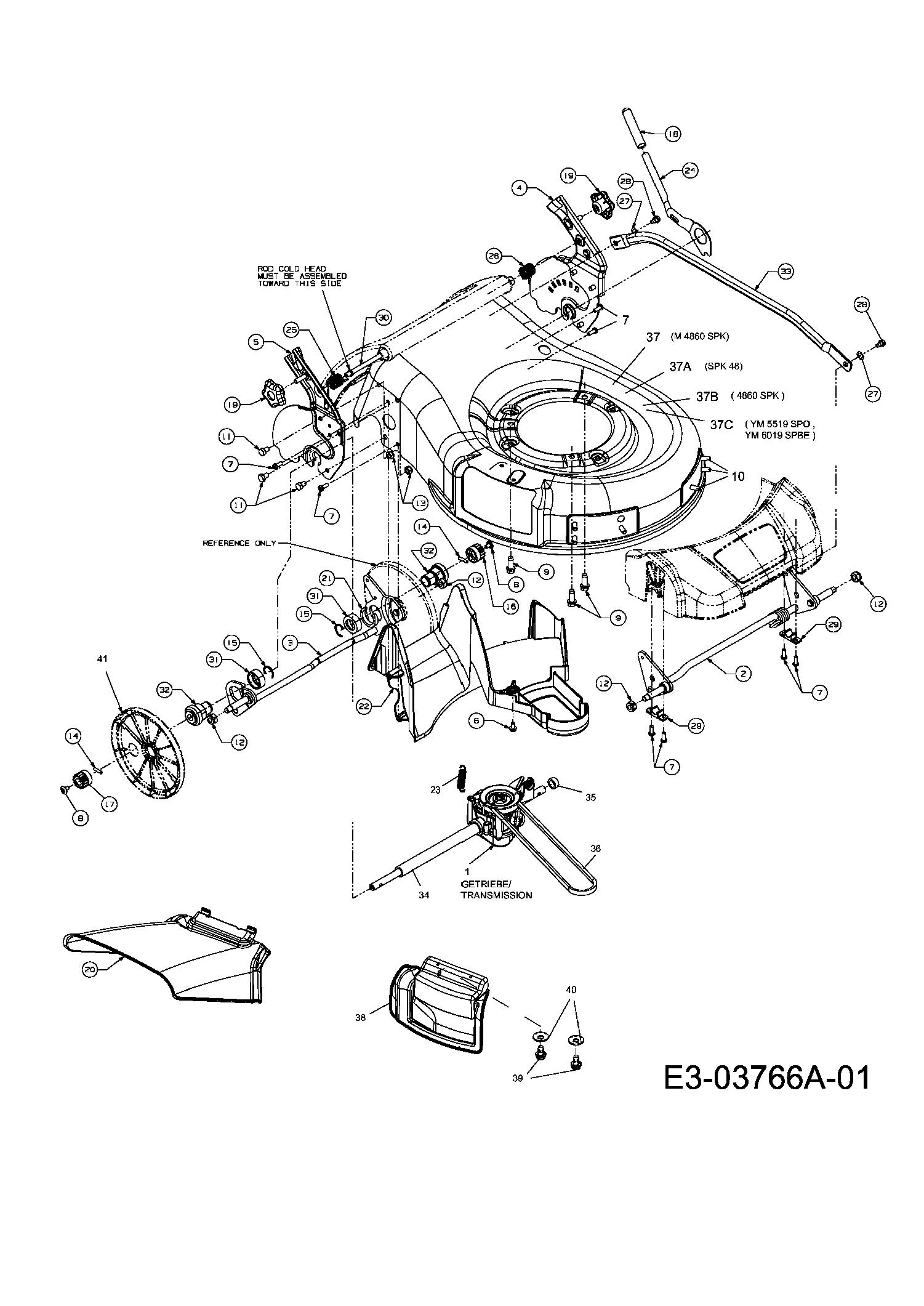

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04463A	TRANSMISSION ASSY. 19"	£128.46	Add
002	687-02242637	BRACKET ASM:FRONT:19"	£29.03	Add
003	687-02249637	BRKT ASM:SP:CHA:19"	£28.42	Add
004	687-02328637	BRKT ASM:HNDL SP EXP	£31.04	Add
005	687-02329637	BRKT ASM:HNDL RH SP EXP	£29.44	Add
006	710-04203A	SCR:M6x1:12 MM:DIN 7500	£5.19	Add
007	710-04380	SCR:HI:M6-.37:16:PANTRXI	£4.22	Add
008	710-04531	SCR:1/4-20 x.390:PANTRXI	£4.29	Add
009	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
010	710-1242	SCREW	£9.01	Add
011	710-1714	Screw 21.1441.67	£2.93	Add
012	712-04074	NUT:HEX:M10x1.25 DIN 985	£2.79	Add
013	712-0692	HEX NUT	£3.10	Add
014	715-0221	DOWEL PIN:H.G.PROD. 3/16 x 3/4	£5.33	Add
015	716-0198	RING-RETAINING:.875	£3.24	Add
016	717-04184C	DRIVE PINION L.H. 717-04184A	£31.66	Add
017	717-04192C	DRIVE PINION R.H. 717-04192A	£31.66	Add
018	720-0230	GRIP:FOAM: .50 ID X 3.54" LG	£3.77	Add
019	720-04072A	HAND RELEASE	£4.27	Add
020	731-04177	EJECTION FLAP	£26.81	Add
021	731-05872	SPCR:CLIP: 1.181 ID X .307 LG	£3.90	Add
022	731-06262	BFL:REAR:19" EURO	£39.07	Add
023	732-04262	SPRING:EXTN:.429 OD x 2.515	£12.34	Add
024	732-04338B	SPRING:LEVER:SP:800/19" 732-04338	£14.29	Add
025	732-04474A	TORSION SPRING R.H. REAR FLAP	£9.92	Add
026	732-04475A	TORSION SPRING L.H. REAR FLAP	£9.92	Add
027	736-3012A	WASH:WAVE:.390X.625X.016	£15.11	Add
028	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
029	741-0492A	BUSH:BLOCK:.505 DIA x.62	£3.95	Add
030	747-04589	ROD-DECK DOOR PIVOT	£9.12	Add
031	748-0390	SPCR:BRG SUPT:SP	£3.59	Add
032	748-04159	SUPT:BRG:TRANS:19"	£18.69	Add
033	749-04307637	ROD:T-DECK	£16.96	Add
034	750-04791	SPCR:SLEV:.550 IDX 7.97 LG	£7.82	Add
035	750-04870	SLEEVE SPACER .550ID X.340 LG	£8.01	Add
036	754-04158	BELT:V TYP:3L X 32.19	£29.05	Add
037	787-01629-SB	DECK:SD:19":HIGH WHL	£111.96	Add
038	687-02055	PLUG ASM:MULCH:HINGED	N/A	POA
039	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
040	736-0270	BELL WASHER	£3.91	Add
041	731-06157	CVR:DUST:8":SP:EXP	£5.00	Add
37A	787-01629638	NO LONGER AVAILABLE	N/A	POA
37B	787-01586629	DECK:19" RR W/O DIS SP	£166.05	Add
37C	787-01629665	DECK:SD:19":HIGH WHL	£111.96	Add
