MTD009461

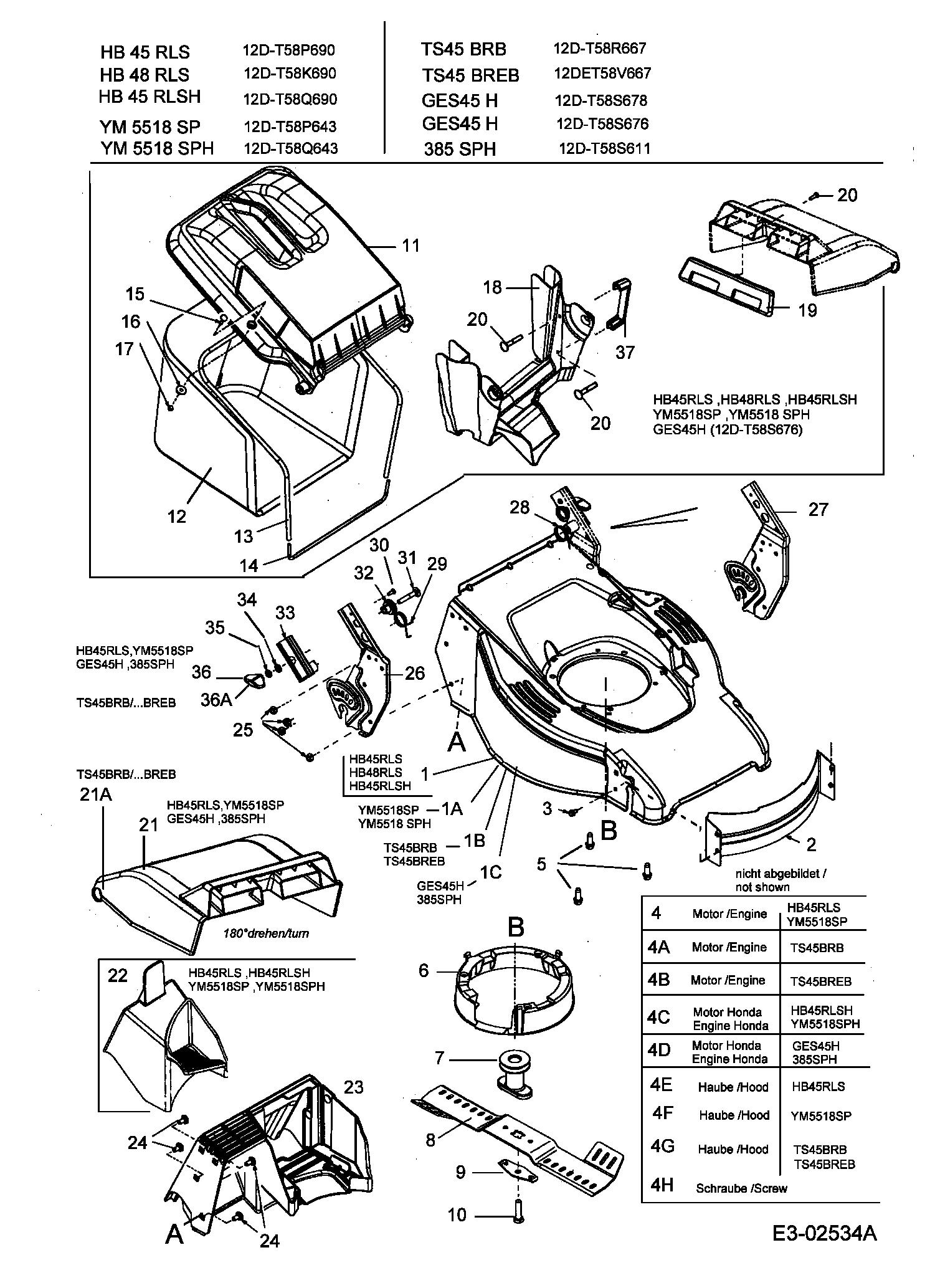

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	787-01146650	DECK 18" CENTRAL HA	£112.27	Add
002	787-01173A637		N/A	POA
003	710-04203A	SCR:M6x1:12 MM:DIN 7500	£5.19	Add
004	752B1905B1	B&S ENGINE	N/A	POA
005	710-0502A	SCR:TTSEMS:3/8-16:1.250:HXLWSH	£7.56	Add
006	731-05487	BFL DECK CNTR	£27.17	Add
007	748-04016A	ADAP:BLADE:22" ONE PIECE	£39.10	Add
008	742-04060	BLADE:45cm:T-DECK W/STAR	£36.92	Add
009	736-0524B	SPR BLADE BELL	£8.61	Add
010	710-1044	HEX BLOT 3/8-24 X 1.5 INCHS LONG	£4.74	Add
011	731-04632A	GRSBG:HRDTP:T-DECK 731-04632	N/A	POA
012	764-04044	GRSBG:CLOTH:T-DECK	£44.00	Add
013	749-04130	TUBE:FRM:GRSBG:T-DECK	£21.14	Add
014	747-04212	ROD:FRM:GRSBG:T-DECK	£13.36	Add
015	710-04220	BOLT:CRG:M6-1 x 25 mm LG	£3.31	Add
016	736-0176	WASHER:FLAT:.265 x .938 x .120	£5.70	Add
017	712-0691	HEX NUT M6 DIN 985	£2.66	Add
018	631-04162	GRSBG:FRT:T-DECK 731-04611	£28.72	Add
019	731-04661	COVER:DOOR:T-DECK BLACK	£36.37	Add
01A	787-01146665	DECK 18" CENTRAL HA	£106.98	Add
01B	787-01146668	DECK 18" CENTRAL HA	£106.98	Add
01C	787-01146638	DECK 18" CENTRAL HA	£106.98	Add
020	710-1704	SCR:TORX:M6x20 WN 1452	£4.62	Add
021	731-04650	DOOR BLACK	£73.87	Add
022	731-04635	PLUG:MULCH:T-DECK	£60.59	Add
023	731-04630	BFL:RR:T-DECK	£41.18	Add
024	710-04217	SCR:SHLDR:12mm SQ:M8 CUSTOM	£4.50	Add
025	712-0692	HEX NUT	£3.10	Add
026	787-01161637	BRKT ASM:HANDLE:SP:RH 687-02118	£30.38	Add
027	787-01162637	BRKT:HANDLE:SP:LH 687-02116	£31.14	Add
028	732-04193A	NO LONGER AVAILABLE	N/A	POA
029	732-04194A	TORSION SPRING	£9.42	Add
030	710-1777	SCR:TORX:50x14:WN 1451	£3.20	Add
031	710-1719	BOLT	£4.89	Add
032	748-04036	INSULATING WASHER 079.06.307	£4.50	Add
033	731-04587A	NO LONGER AVAILABLE	N/A	POA
034	736-0700	FLAT WASHER	£2.63	Add
035	736-0689	L-WASHER	£3.26	Add
036	720-0368	WING NUT	£5.19	Add
037	720-04048	HNDL:PLASTIC	£11.55	Add
04A	752B1904B1	ENGINE B&S QUANTUM	£393.96	Add
04B	752B1903B1	B-MOTOR B&S QUANTUM 5.0 HP ES	N/A	POA
04C	752H638591	ENGINE HONDA	N/A	POA
04D	752H636760	MOTOR HONDA GCV 160 5.5 HP	£535.00	Add
04E	731-1397A	SHROUD GRAY	£36.08	Add
04F	731-1402B	NO LONGER AVAILABLE	N/A	POA
04G	731-1694B	SHROUD:ENG:QUAN BLACK STYLE 3	£22.77	Add
04H	710-1256	SCR:HL:#8-18:1.250:PANPHI	£8.53	Add
21A	731-04653	REAR FLAP 731-1822668	£47.73	Add
36A	720-04047	WING NUT	£8.32	Add
