MTD009460

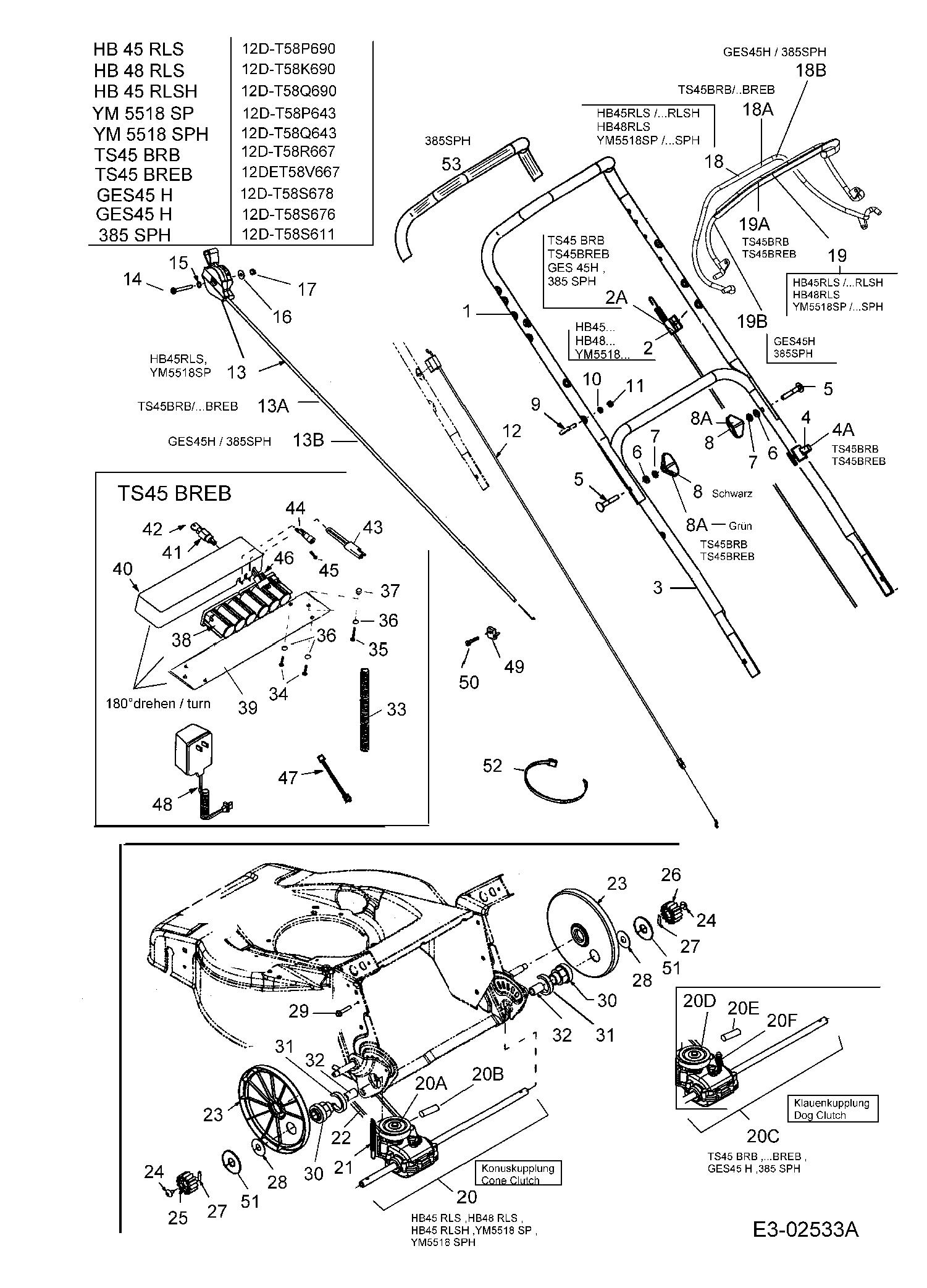

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	749-1217637	NO LONGER AVAILABLE	N/A	POA
002	746-04216	CBL:T-DECK:GAS:CONE CLU	£25.83	Add
003	749-1196A637	NO LONGER AVAILABLE	N/A	POA
004	731-1820	CBL:GDE	£3.20	Add
005	710-1719	BOLT	£4.89	Add
006	736-0700	FLAT WASHER	£2.63	Add
007	736-0689	L-WASHER	£3.26	Add
008	720-0368	WING NUT	£5.19	Add
009	782-7627A	EYE BOLT	£6.28	Add
010	736-0668	WASHER	£2.23	Add
011	712-0691	HEX NUT M6 DIN 985	£2.66	Add
012	746-1053	BRAKE CABLE	£26.10	Add
013	746-04152	CABLE	£28.71	Add
014	710-04603	SCR:M6x50mm:DIN 7985	£3.66	Add
015	736-0668	WASHER	£2.23	Add
016	736-0685	WASHER	£3.26	Add
017	712-0691	HEX NUT M6 DIN 985	£2.66	Add
018	747-1051637	CONTROL LEVER	£22.08	Add
019	747-1064	BRAKE BAIL	£58.08	Add
020	618-04136A	TRANS ASM:T-DECK	£132.87	Add
021	732-04192	SPR:EXTN:.38 ID x 3.6	£10.32	Add
022	754-04040	BELT	£41.99	Add
023	731-04756B	CVR:WHL:DUST:T-DECK 731-04756	£13.04	Add
024	710-04223	SCR:M6x1.0x10:PANTRXI	£4.80	Add
025	717-1610	GEAR:SPUR:14T LH 717-1761	£26.70	Add
026	717-1611	GEAR:SPUR:14T RH 717-1762	£26.70	Add
027	715-0221	DOWEL PIN:H.G.PROD. 3/16 x 3/4	£5.33	Add
028	736-3013	WASHER-FL	£2.98	Add
029	710-04280	SCR:M6x1:30mm:DIN 7500	£3.31	Add
02A	746-04128A	CBL:TRANS:T-DECK:GAS 746-04128	£25.56	Add
030	748-04051A	SUPT:BRG:SP T-DECK 748-04051	£22.19	Add
031	750-04317	SPCR:CLIP:30MM ID x 6 MM LG	£5.91	Add
032	741-0710	BEARING-SLEEVE:.502x.627x1.00	£5.41	Add
033	079.11.422	PROTECTION TUBE	£19.79	Add
034	710-0969	SCREW	£3.35	Add
035	710-1396	SCREW M6x35 DIN 7985-4.8	£3.34	Add
036	736-0668	WASHER	£2.23	Add
037	712-0691	HEX NUT M6 DIN 985	£2.66	Add
038	725-1276	BATTERY PACK 990SPE	£134.19	Add
039	782-9089668	SUPPORT	£16.26	Add
040	731-0891A	NO LONGER AVAILABLE	N/A	POA
041	725-0873	KEY SWITCH	£41.18	Add
042	725-0201	IGNITION KEY	£6.47	Add
043	725-1206	PLUG	£9.70	Add
044	725-1428	FUSE BOX	£22.79	Add
045	725-0298	FUSE:7.5 AMP .250 X 1.250	£11.98	Add
046	725-2052	HARN:MWR:ELEC START	£65.81	Add
047	725-1538	HARNESS EXTENSION	£32.48	Add
048	EP93	CHARGER. MTD ROTARY MOWER (RED)	£28.71	Add
049	751B221535	CLAMP-CASING	£3.00	Add
04A	731-1821	HOLDER, DRIVE CABLE	£3.59	Add
050	710-1237	SCREW SELF TAP	£3.00	Add
051	736-04159	WASH:FLAT:.510 x 1.373 x.48	£4.22	Add
052	726-04055	CABLE TIE 000.70.563	£3.91	Add
053	720-0347637	FOAM GRIP	£12.60	Add
08A	720-04047	WING NUT	£8.32	Add
13A	746-04151	THROTTLE CONTROL + CABLE B&S	£33.59	Add
13B	746-04144	NO LONGER AVAILABLE	N/A	POA
18A	747-1051668	CONTROL LEVER	£27.49	Add
18B	747-1051637	CONTROL LEVER	£22.08	Add
19A	747-04118668	BRAKE BAIL	£29.91	Add
19B	747-04118637	BRAKE BAIL 747-1050637	£21.89	Add
20A	618-04136A	TRANS ASM:T-DECK	£132.87	Add
20B	715-04011	PIN:ROLL:5mmx26mm	£16.07	Add
20C	618-04138	NO LONGER AVAILABLE	N/A	POA
20D	756-04017	PULLEY TRANS 756-04091	£20.58	Add
20E	715-04011	PIN:ROLL:5mmx26mm	£16.07	Add
20F	732-1039	SPRING 732-04199	£18.87	Add
