MTD016811

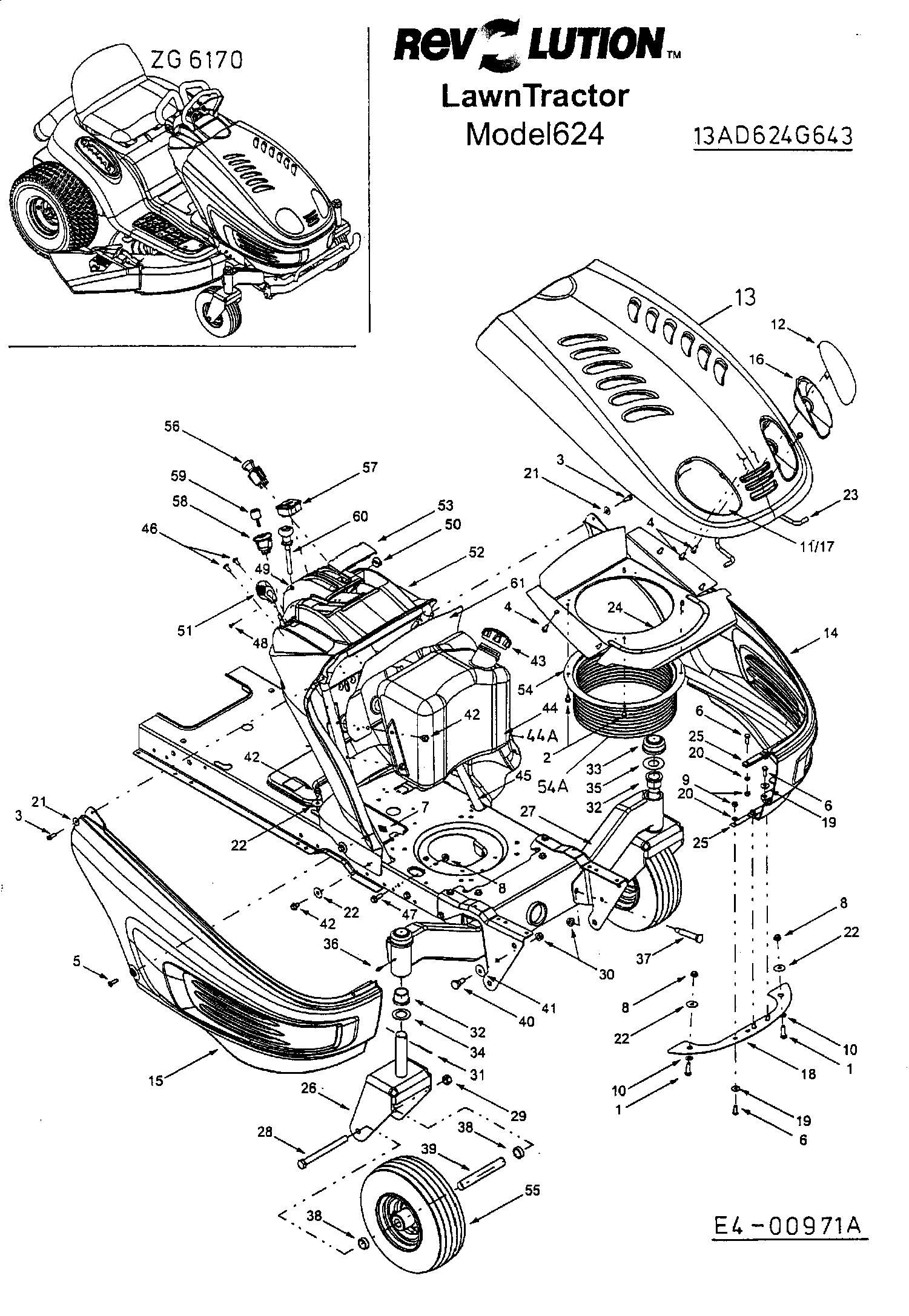

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016811

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 710-0376 SCREW HEX CAP 5/16 £7.56 Add
002 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
003 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
004 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.15 Add
005 710-0924 TRUSS SCREW £1.48 Add
006 710-3015 SCREW HEX CAP £2.82 Add
007 712-0292 SPEED NUT (DNR) £3.72 Add
008 712-3004A HEX FLANGE NUT £2.52 Add
009 712-3006 NUT £2.35 Add
010 726-0201 SPEED NUT £2.61 Add
011 731-1978 LENS:HDLT:RH £7.82 Add
012 731-1979 LENS:HDLT:LH £7.82 Add
013 731-1980B HOOD: 4 STYLE £160.04 Add
014 731-04958 PNL:SD:LH 4 STYLE 731-1981B £155.45 Add
015 731-1982A PNL:SD:RH 4 STYLE £165.87 Add
016 731-1995 REFL:HDLT:LH £18.95 Add
017 731-1996 REFL:HDLT:RH £18.95 Add
018 731-2272 HEAT SHIELD £32.33 Add
019 736-0173 WASH:FL:.28ID:.74OD:.063 £3.57 Add
020 736-0329 L. WASHER £1.28 Add
021 736-0342 FLAT WASHER £2.52 Add
022 736-3078 WASH:FLAT:.344 x 1.00 x 063:HD £4.18 Add
023 747-1132A ROD:HOOD:SUPT £16.06 Add
024 783-0808A637 HOOD HEAT SHIELD 783-0808A N/A POA
025 783-1000A-Z FASTENING PLATE 783-1000A N/A POA
026 111.11.114 SRAP:CHUTE 723-0617 £9.20 Add
027 683-0453 AXLE ASSY.-PIVOT BAR £149.39 Add
028 710-0506 Screw £8.16 Add
029 712-0239 LOCK NUT £10.15 Add
030 712-0431 NUT £2.71 Add
031 714-3001 Roll pin £2.26 Add
032 AF-43632 BEARING PLASTIC £9.85 Add
033 731-0556 HUB CAP £6.15 Add
034 736-0277 WASH:FLAT:1.031 x 1.620 x.095 £3.89 Add
035 736-0345 WASHER-FL N/A POA
036 737-0280 FITTING-GREASE £4.72 Add
037 738-1011A SHOULDER BOLT £5.60 Add
038 750-0456 SPACER .790 ID X .347 LG. £6.91 Add
039 750-3197A SPACER-WHEEL £20.92 Add
040 738-0143 SHOULDER BOLT £11.95 Add
041 736-0331 BELL WASHER £3.34 Add
042 710-0604A SCREW £3.50 Add
043 751-0603A CAP:FUEL £7.12 Add
044 751-0659A TANK:FUEL:2 GAL £79.69 Add
045 683-0316 SUPPORT ASSY.-DASH £174.28 Add
046 710-1017 TAP SCREW £2.52 Add
047 710-1238 SCREW £2.71 Add
048 710-3217 SCR:MACH:#8-32:0.375:TRUSPHI £3.12 Add
049 712-0142 NUT:HEX:#8-32:GRA £2.98 Add
050 720-0425 KNOB £3.02 Add
051 731-1857 GRIP £17.41 Add
052 731-2321 PANEL-DASH £99.96 Add
053 731-2483 CAP-DASH £18.94 Add
054 731-2232A BLLW:INTAKE:4.12LG 731-2232 £30.82 Add
055 634-3169 WHEEL COMPLETE 11X4X5 £179.90 Add
056 725-1716 SWITCH £35.48 Add
057 725-1976 IND:MONITOR:HOUR METER/LOW VOL £196.57 Add
058 725-1741 UTV IGNITION SWITCH £26.27 Add
059 725-1744A KEY IGNITION (SINGLE) £5.99 Add
060 746-1134 CONTROL-CHOKE 45.5"LG.X1.5"EXT £62.05 Add
061 783-1350 SHIELD-HEAT INTEK 800 £84.67 Add
44A 751-0658B FUEL TANK 751-0658 £63.60 Add
54A 731-2234A BLLW: INTK: 2.6 LG £42.38 Add
