MTD016812

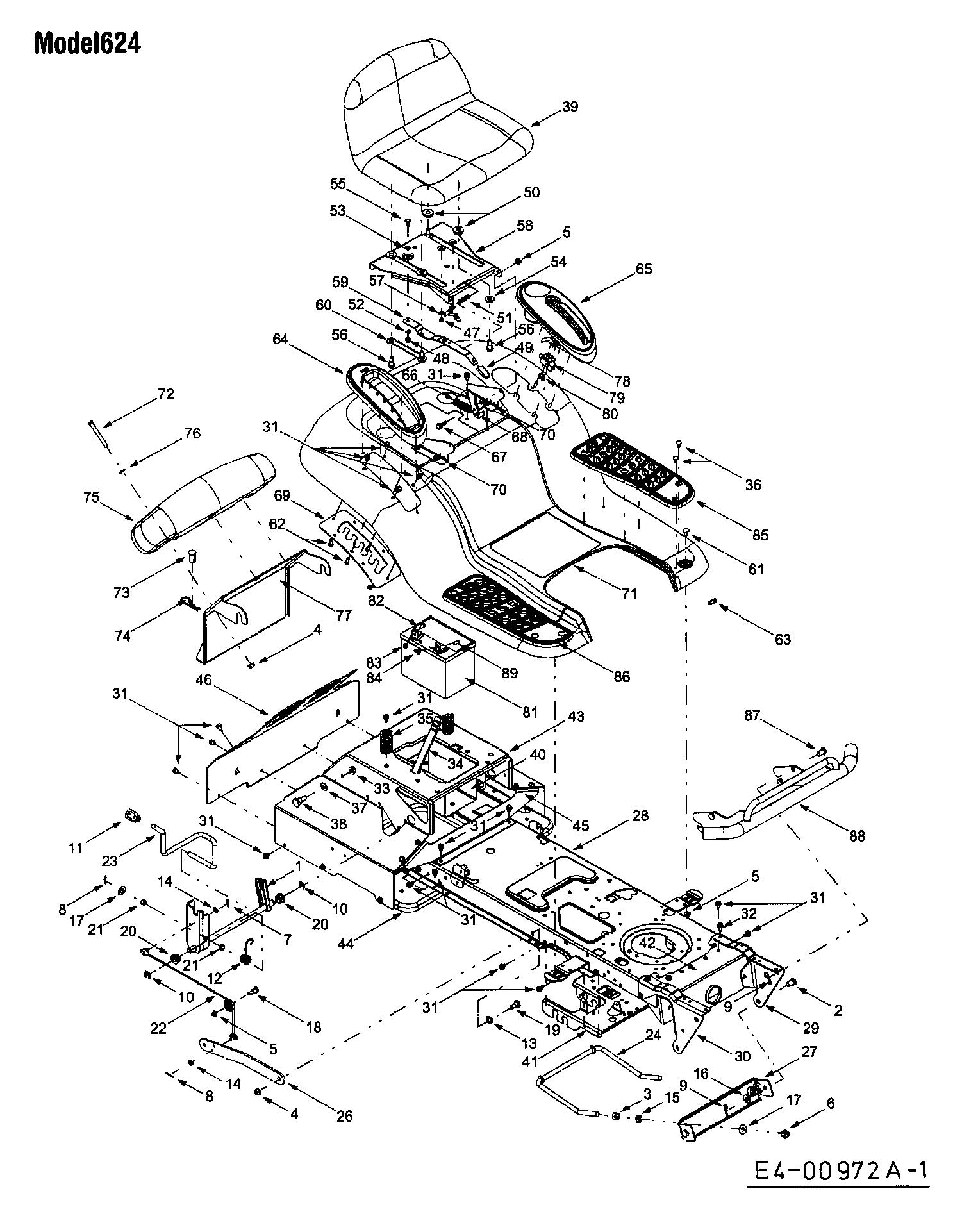

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016812

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 683-0197 LIFT SHAFT ASSY. £86.83 Add
002 711-0332 CLEVIS PIN (RED) £10.97 Add
003 712-0206 NUT £2.89 Add
004 712-0431 NUT £2.71 Add
005 712-3004A HEX FLANGE NUT £2.52 Add
006 712-3083 NUT £2.38 Add
007 714-0104 PIN INTERNAL COTTER £2.36 Add
008 714-0111 COTTER PIN £2.71 Add
009 714-0145 R CLIP £2.36 Add
010 716-0106A RING E TYPE .625 DIA SHAFT £2.82 Add
011 720-0311 KNOB £17.05 Add
012 732-0874 SPRING-TORSION £10.02 Add
013 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
014 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
015 736-0921 WASHER:LOCK:1/2:REGULAR DUTY £3.30 Add
016 736-3019 WASHER FLAT £4.52 Add
017 736-3084 WASHER FLAT £3.18 Add
018 738-0138A SCR HEX CAP £7.88 Add
019 738-0143 SHOULDER BOLT £11.95 Add
020 741-0225 HEX FLANGE BEARING £4.14 Add
021 741-0715 FLANGE BEARING £3.96 Add
022 746-0968 CABLE LIFT £20.66 Add
023 747-1111 LINK:LIFT:CROSSBAR N/A POA
024 747-1130B ROD DECK FRONT ADJUST 5" DIA £40.10 Add
025 756-1154 PULLEY DECK RECRUITMENT £8.80 Add
026 783-0678A Lifting arm £27.48 Add
027 783-0720C637 BRKT:ADJ:FRT DECK ROD 783-0720C £36.16 Add
028 683-0314 Frame N/A POA
029 683-0589 BRACKET ASSY.-SUPPORT LH N/A POA
030 683-0590 BRACKET ASSY.-SUPPORT RH N/A POA
031 710-0604A SCREW £3.50 Add
032 710-1260A SCREW £3.37 Add
033 712-0459 LOCK NUT £3.86 Add
034 723-0444 BATTERY STRAP £20.75 Add
035 732-3080A SPRING,EXT.1" 732-3080 N/A POA
036 726-3046 MOUNTING CLIP:.250 DIA £2.94 Add
037 736-0407 WASHER £9.89 Add
038 738-1020 SCR:SHLDR:.625 x.500:7/16-20 £8.76 Add
039 757-0372 SEAT:V560 RAD YELLOW £342.37 Add
040 783-0349637 BATTERY TRY £19.82 Add
041 783-0653F BRACKET-STEERING SPT £36.52 Add
042 783-0728B637 BRKT:PIVOT:BAR 783-0728B £40.59 Add
043 783-1044 FRAME-UPPER N/A POA
044 783-1045 BRACKET-TRANS TORQUE N/A POA
045 783-1046 BRACKET N/A POA
046 783-1047 PLATE-REAR N/A POA
047 710-1268 SCREW HEX WASHER HD TAPP £2.76 Add
048 712-3027 LOCK NUT £2.38 Add
049 720-0309A GRIP SEAT ADJUSTER £4.21 Add
050 731-1989 SPACER:SEAT:ADJUSTER £16.47 Add
051 732-0499 COMPRESSION SPRING £3.70 Add
052 736-0175 SPRING WASHER £2.87 Add
053 736-0204 F.I. WASHER £3.04 Add
054 736-3019 WASHER FLAT £4.52 Add
055 738-0137A BOLT £7.19 Add
056 738-1007 SHOULDER SCREW £3.89 Add
057 783-0611637 STOP:SEAT:ADJ 783-0611 N/A POA
058 783-0738D637 BRKT:PIVOT:SEAT £35.17 Add
059 783-0739A637 SEAT LEVER ADJUSTER £18.52 Add
060 783-0753 TOOTHED BRACKET £17.76 Add
061 710-0260A BOLT:CRG: 5/16-18:.62 GR5 £2.74 Add
062 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.15 Add
063 731-051181 EDGE GUARD 731-0511 £31.36 Add
064 731-1990 COVER-LIFT LEVER £59.73 Add
065 731-2319 COVER WITH CUP HOLDER £38.30 Add
066 732-1027 SPR:EXTN:.875 OD X 3.4 LG £5.13 Add
067 738-0296 SHLD SCR £5.54 Add
068 783-0209-Z SEAT LIFT BRACKET £7.01 Add
069 783-0677 BRACKET, LIFT, ADJUSTMENT £35.57 Add
070 783-0715A SEAT BRACKET £19.66 Add
071 783-1349 FENDER-4 STYLE £208.61 Add
072 710-3130 SCREW HHCS:3/8-16:3.25:GR8:STD £6.84 Add
073 711-0309A PIN:CLEVIS: .062 DIA £18.20 Add
074 714-0117 PIN:COT:INT: .148 x 3.00 £5.26 Add
075 731-2341 BUMPER-REAR £177.83 Add
076 736-3010 WASH:FL:.407x.812x.135:HD £2.85 Add
077 783-1275 BUMPER SUPPORT BRACKET £72.65 Add
078 725-1774 SPRING-SWITCH £23.23 Add
079 725-3223 PLUNGER SWITCH(PARKING BRAKE) £39.63 Add
080 710-1823 SCREW #12-16X.625" £5.34 Add
081 5032-u3-0002 BATTERY £59.40 Add
082 710-0703 SCR:CRG:1/4-20:.75:GR5 £2.66 Add
083 712-0271 NUT:SEMS:1/4-20 £2.68 Add
084 712-3087 WING NUT £3.07 Add
085 735-0657 PAD-FOOT LH N/A POA
086 735-0678 PAD-FOOT RH N/A POA
087 711-0332 CLEVIS PIN (RED) £10.97 Add
089 738-1132 SCR:SHLDR:.250X.150:1/4-20 £16.86 Add
