MTD009176

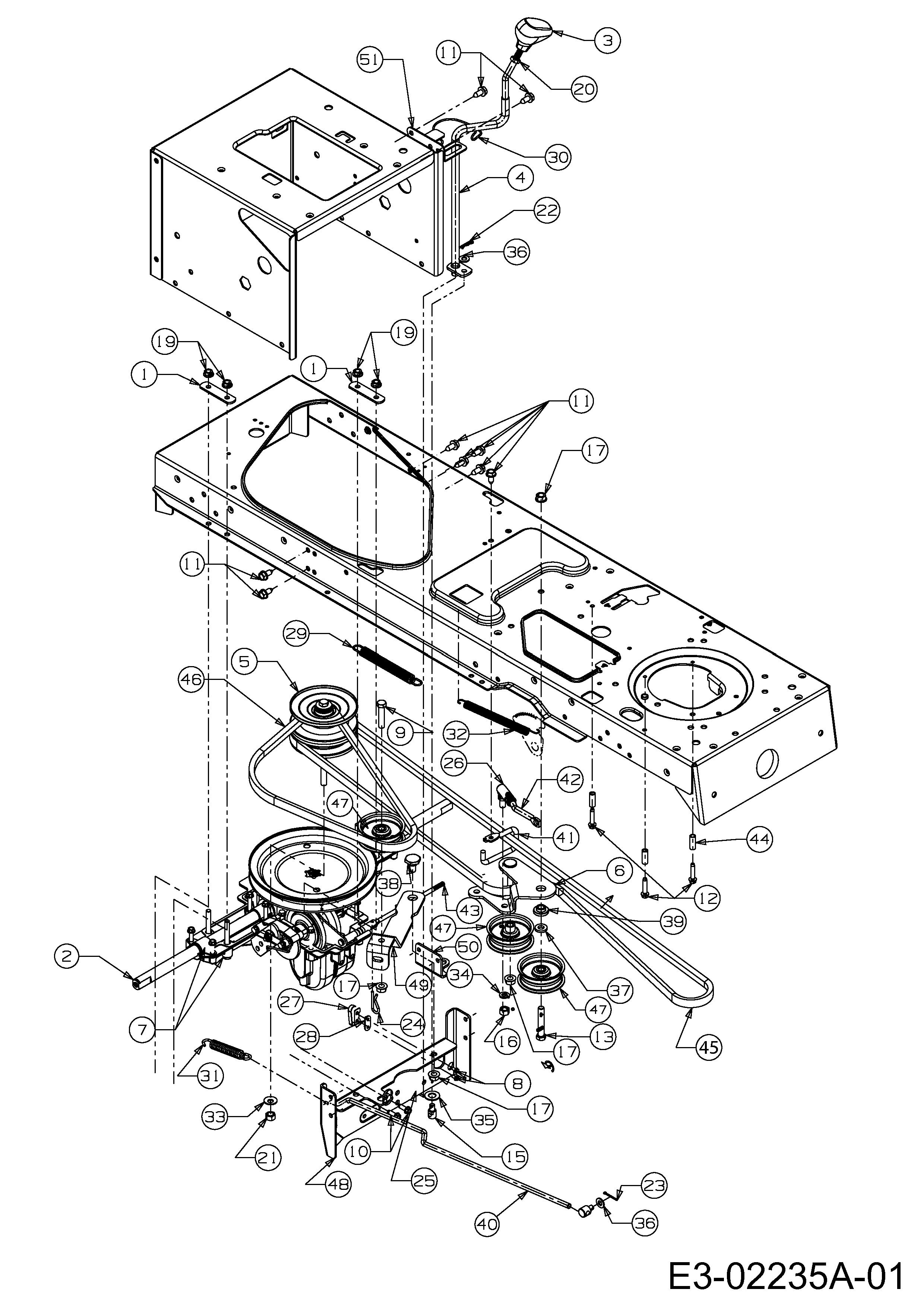

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009176

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 17840 TRANSAXLE BRACKET REINFORCE £12.77 Add
002 618-0551A TRANS-AXLE £511.16 Add
003 631-0009A KNOB:SHIFTER:3/8-16 THRD £7.55 Add
004 647-0045 LEVER-SHIFT £48.20 Add
005 656-0048 PULLEY ASSY.VARI SPD £214.26 Add
006 683-04000-Z BRACKET ASSY-IDLER 683-0251 N/A POA
007 710-0176 HHCS:5/16-18:2.75:GR5:STD £7.37 Add
008 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
009 710-0347 HEX SCR £3.14 Add
010 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
011 710-0726 HEX SCREW AB 5/16-12:0.750 £3.01 Add
012 710-0809 SCR:TT:1/4-20:1.250:HXINDWSH £2.94 Add
013 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
014 711-0677 FERRULE:5/16-18 x.312 DIA £16.07 Add
015 711-0736 FERRULE-ADJ:1/4-20 x 1.00 £18.73 Add
016 712-0241 HEX NUT 3/8-24 £2.38 Add
017 712-0431 NUT £2.71 Add
018 712-0711 NUT £2.59 Add
019 712-3004A HEX FLANGE NUT £2.52 Add
020 712-3008 NUT:JAM:3/8-16:GR5 £2.76 Add
021 712-3017 NUT:JAM:3/8-16:GR5 £2.52 Add
022 714-0104 PIN INTERNAL COTTER £2.36 Add
023 714-0111 COTTER PIN £2.71 Add
024 714-0209 INTERNAL COTTER PIN .125 DIA £3.73 Add
025 714-0470 COTTER PIN £2.50 Add
026 723-3018 BALL JOINT £20.04 Add
027 725-1644 SWITCH:SPRING:SHORT £5.88 Add
028 726-0320 INSULATING PLATE £2.55 Add
029 732-0384 EXT SPRING £13.19 Add
030 732-0525 COMP SPRING CLIP £2.65 Add
031 732-0716D SPRING EXTENSION £12.05 Add
032 732-0963 SPRING £8.15 Add
033 736-0105 BELL WASHER £2.82 Add
034 736-0169 L. WASHER £2.45 Add
035 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.67 Add
036 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
037 736-3010 WASH:FL:.407X.812X.135:HD £2.41 Add
038 738-0322A SCR:SHLD:.625 DIA x.217 £12.89 Add
039 738-0372B COLLAR £4.74 Add
040 747-1122 ROD-BRAKE N/A POA
041 747-1123A TENSIONER £28.38 Add
042 747-1127 ROD,ENGAGEMENT ASSY. £17.77 Add
043 747-1285 ROD-SHIFT N/A POA
044 750-0566A SPACER £6.49 Add
045 754-0467A V BELT £81.80 Add
046 754-0468 BELT £50.75 Add
047 756-04224 IDLER PULLEY £23.48 Add
048 783-0667B BRACKET-TRANS TORQUE N/A POA
049 783-0669 BRACKET ASSY-IDLER £30.05 Add
050 783-1015 BRACKET, HITCH ARM MT. £16.19 Add
051 783-1016B BRKT:ROD:SPEED CONTROL £8.80 Add
