MTD010445

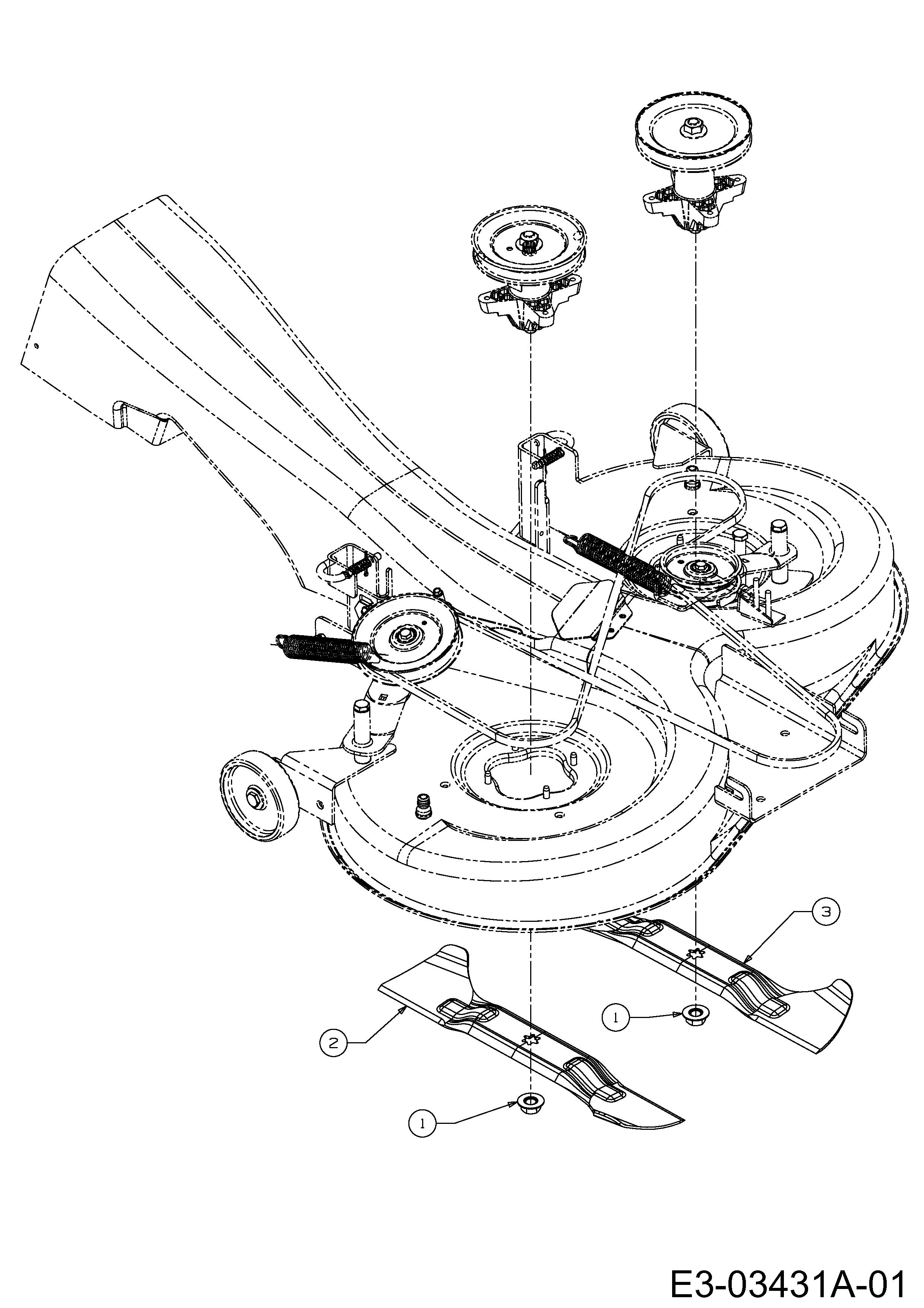

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010445

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 712-05134 BLADE NUT £3.81 Add
002 742-04080 BLADE R/H X DECK £45.82 Add
003 742-04081 BLADE L/H X DECK £44.79 Add
