MTD007339

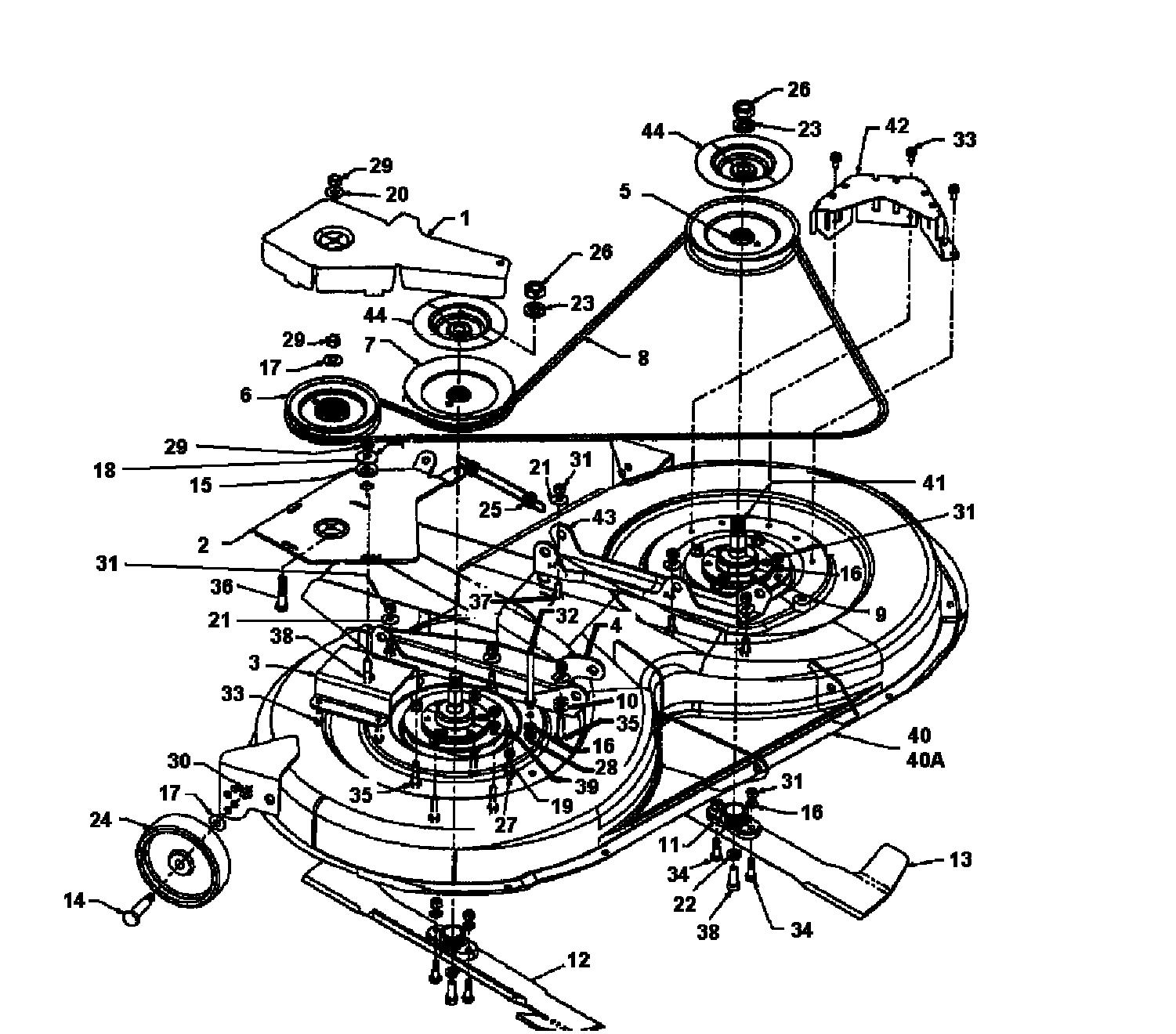

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007339

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 783-0199A-0637 NO LONGER AVAILABLE N/A POA
002 783-0198637 BRACKET ASSY-IDLER 783-0198 £72.51 Add
003 783-0196 DISK:REINFORCEMENT £26.06 Add
004 783-0176 RAIL-HANGER DECK RH £39.71 Add
005 756-0617 PUL:DECK:5.0448 x .437 PINS £61.69 Add
006 756-0616 PUL:IDLR:5.0 DIA V-TYPE £64.05 Add
007 756-0615 NO LONGER AVAILABLE N/A POA
008 754-0443A BLADE BELT £113.93 Add
009 750-0776 SPCR:.33 ID X .88 OD X .51 LG £4.22 Add
010 750-0258 SPCR:.315 X .75 X .375LG £6.91 Add
011 748-0300 BLADE ADAPTOR £20.23 Add
012 742-0608C BLADE 20.5" £44.63 Add
013 742-0607C BLADE 20.5" £44.63 Add
014 738-0373 AXLE BOLT £6.84 Add
015 738-0347 SPACER £4.16 Add
016 736-0119 LOCK WASHER 5/16 £3.33 Add
017 736-0105 BELL WASHER £3.33 Add
018 736-0331 BELL WASHER £3.95 Add
019 736-0329 L. WASHER £3.26 Add
020 736-0300 WASHER £2.81 Add
021 736-0242 BELL WASHER £3.72 Add
022 736-0217 H.L. WASHER (RED) £4.89 Add
023 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.47 Add
024 734-0973 WHEEL DECK 5in. DIA £11.16 Add
025 732-0478 EXT. SPRING DECK CONTROL £16.63 Add
026 712-0318 NUT £3.94 Add
027 712-3006 NUT £2.77 Add
028 712-3010 NUT 5/16 x 18 £2.77 Add
029 712-0241 HEX NUT 3/8-24 £2.79 Add
030 712-0181 HEX JAM L NUT £3.69 Add
031 712-3057 NUT 5/16-24 £3.00 Add
032 711-0828 NO LONGER AVAILABLE N/A POA
033 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
034 710-0888 HEX SCR SPECIAL £8.87 Add
035 710-0672 HHCS:5/16-24:1.25:GR5:STD £3.51 Add
036 710-0539 HHCS:3/8-24:1.75:GR5:STD £4.46 Add
037 710-0157 HHCS:5/16-24:.75:GR5:STD £6.99 Add
038 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £3.62 Add
039 710-0136 Bolt, Hex 1/4-20 x 1-3/4" 1509-069 £3.58 Add
040 683-0081B637 NO LONGER AVAILABLE N/A POA
041 918-0140 SPINDLE ASSY-BLADE 40" DECK (OBSOLETE) (OBSOLETE) N/A
042 17664637 GUARD-BELT 17664 £41.16 Add
043 17493B NO LONGER AVAILABLE N/A POA
044 09322 BLADE BRAKE DISC £10.74 Add
40A 683-0164 NO LONGER AVAILABLE N/A POA
