MTD007530

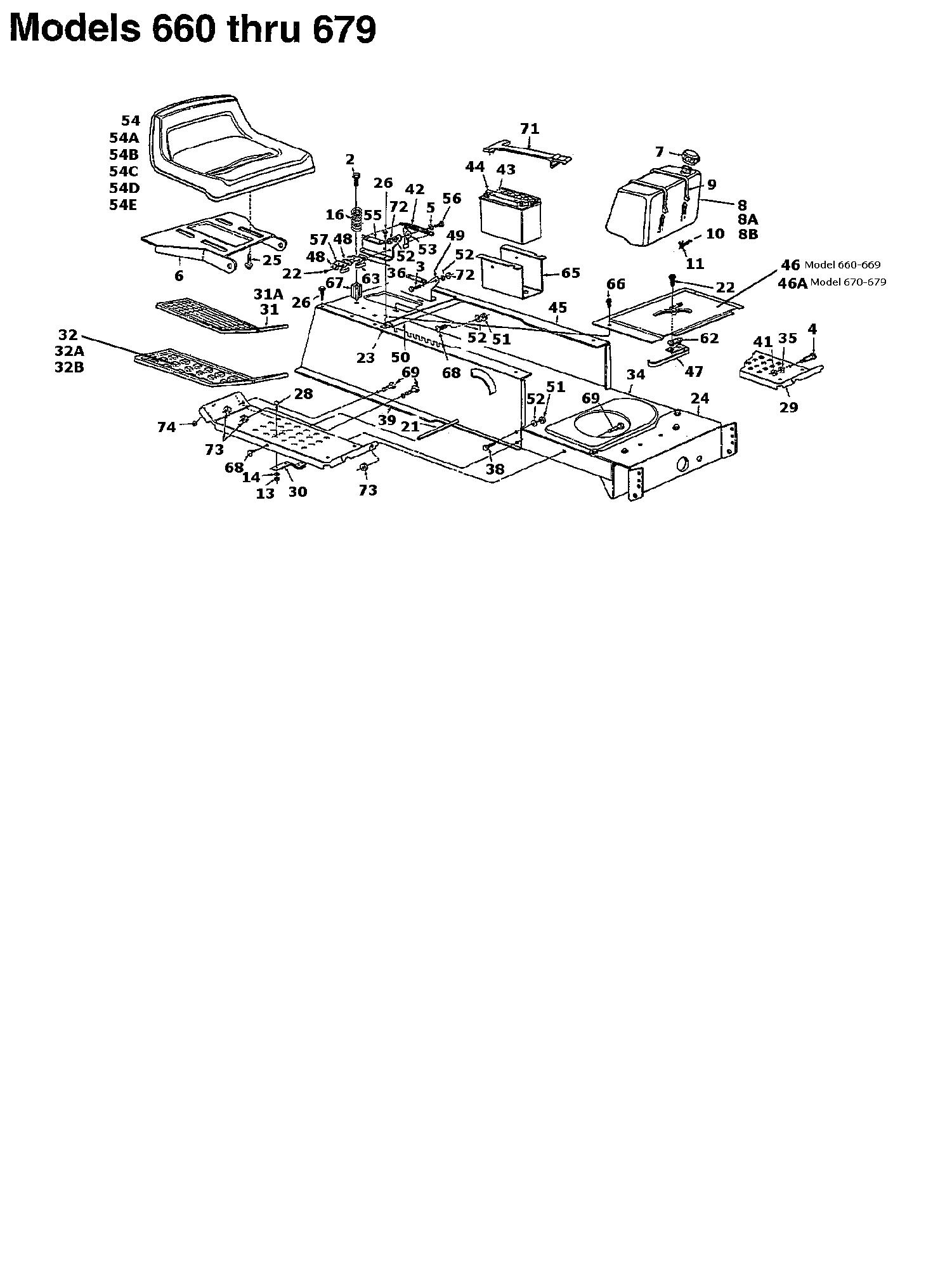

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	710-1208	SCREW:TT:5/16-18:3.500HXINDWSH	£5.00	Add
003	738-0155	BOLT:SHLDR:.435 x.160:5/16-18	£7.50	Add
004	738-0145	SCREW-SHLD	£7.81	Add
005	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add
006	783-0039	SEAT PIVOT BRACKET	£52.07	Add
007	751-0603A	CAP:FUEL	£9.01	Add
008	751-0553	FUEL TANK	£80.00	Add
009	726-0209	NO LONGER AVAILABLE	N/A	POA
010	751-10349-54	FUEL LINE HOSE BLACK	£25.38	Add
011	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
013	712-0287	NUT HEX	£3.31	Add
014	736-0329	L. WASHER	£3.26	Add
016	732-0735	SPR:COMPRS:1.314 OD x 2.55 LG	£18.48	Add
021	738-0526	RUNNING BOARD ROD .500 DIA X 2	£40.95	Add
022	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
023	726-0139	SPEED NUT 10Z U-TYPE	£3.39	Add
024	783-0041A-0637	BRACKET:BAR:PIVOT 783-0041A	N/A	POA
025	710-0870	HHWSH:3/8-16:.625:GR5:STD	£13.79	Add
026	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
028	710-0134	BOLT	£3.03	Add
029	17770B	BOARD:RUNNING	£68.12	Add
030	761-0168D	BRACKET ASSY-BRAKE 761-0168B	£32.66	Add
031	731-0911	FOOT PAD--L.H.	£35.21	Add
032	731-0909	PAD-LH FOOT	£31.52	Add
034	783-0649	FRM: LWR 600	£207.60	Add
035	736-0169	L. WASHER	£2.89	Add
036	726-0278	INSULATING PLATE	£3.20	Add
037	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
038	710-3008	HEX BOLT	£3.03	Add
039	783-0042D	UPPER FRAME RIGHT 783-0042A	£108.33	Add
041	712-0798	HEX. NUT	£7.61	Add
042	732-0581B	SPRG:EXTN:.75 OD X 5.31	£7.22	Add
043	725-0690	CAP-BATTERY-725-0514	£3.02	Add
044	5032-u3-0002	BATTERY (No Returns on this item)	£93.24	Add
045	783-0043B	FRAME-UPPER LH 783-0043	£108.33	Add
046	17954B	LIFT COVER	£39.49	Add
047	725-1643	SW:SPR:LONG	£11.69	Add
048	726-0279	INSULATING PLATE	£3.20	Add
049	17951A	SUPPORT-SEAT BRKT-LH 17951	£50.52	Add
050	783-0355	PLATE-HITCH	£98.60	Add
051	712-3010	NUT 5/16 x 18	£2.77	Add
052	736-0119	LOCK WASHER 5/16	£3.33	Add
053	17239C	BRKT:LIFT:SEAT	N/A	POA
054	757-04107	SEAT	£187.38	Add
055	17950A	BRACKET R.H. 17950	£28.82	Add
056	738-3024	NO LONGER AVAILABLE	N/A	POA
057	725-1303	SW:OUTER SEAT SPRG	£3.26	Add
063	725-1439	SW:INNER SEAT SPRG	£8.44	Add
065	783-0345-0637	Battery bracket 783-0345	N/A	POA
066	710-1388	SCREW	£3.23	Add
067	748-0347	SPACER-SPRING	£13.05	Add
068	710-0323	SCREW	£3.70	Add
069	710-3008	HEX BOLT	£3.03	Add
071	723-3064	STRAP,BATTERY RETAINER	£30.93	Add
072	712-3010	NUT 5/16 x 18	£2.77	Add
073	712-04063	FLANGED NUT	£4.20	Add
074	712-0271	NUT:SEMS:1/4-20	£3.03	Add
08A	751-0555B	TANK:FUEL:1.5 GAL	£80.00	Add
08B	751-0574A	FUEL TANK 3 GALLON	£100.95	Add
31A	731-0912	FOOT PAD--R.H.	£31.52	Add
32A	731-0910	PAD-RH FOOT	£42.25	Add
32C	723-0422	PAD:FT:ABRASIVE TYPE	£16.30	Add
46A	17286B	COVER-HARD TOP (OBSOLETE)	£56.26	Add
54A	757-0371A	SEAT:PL MED BACK GREY 757-0371	£193.19	Add
54B	757-0365	SEAT:RAD YELLOW V460	£186.21	Add
54C	757-04109	SEAT BLACK HIGH BACK	£220.11	Add
54D	757-0370A	SEAT:PL WOP LOGO HI BACK GREY 757-0370	£327.11	Add
54E	757-0372	SEAT:V560 RAD YELLOW	£209.01	Add
