MTD009705

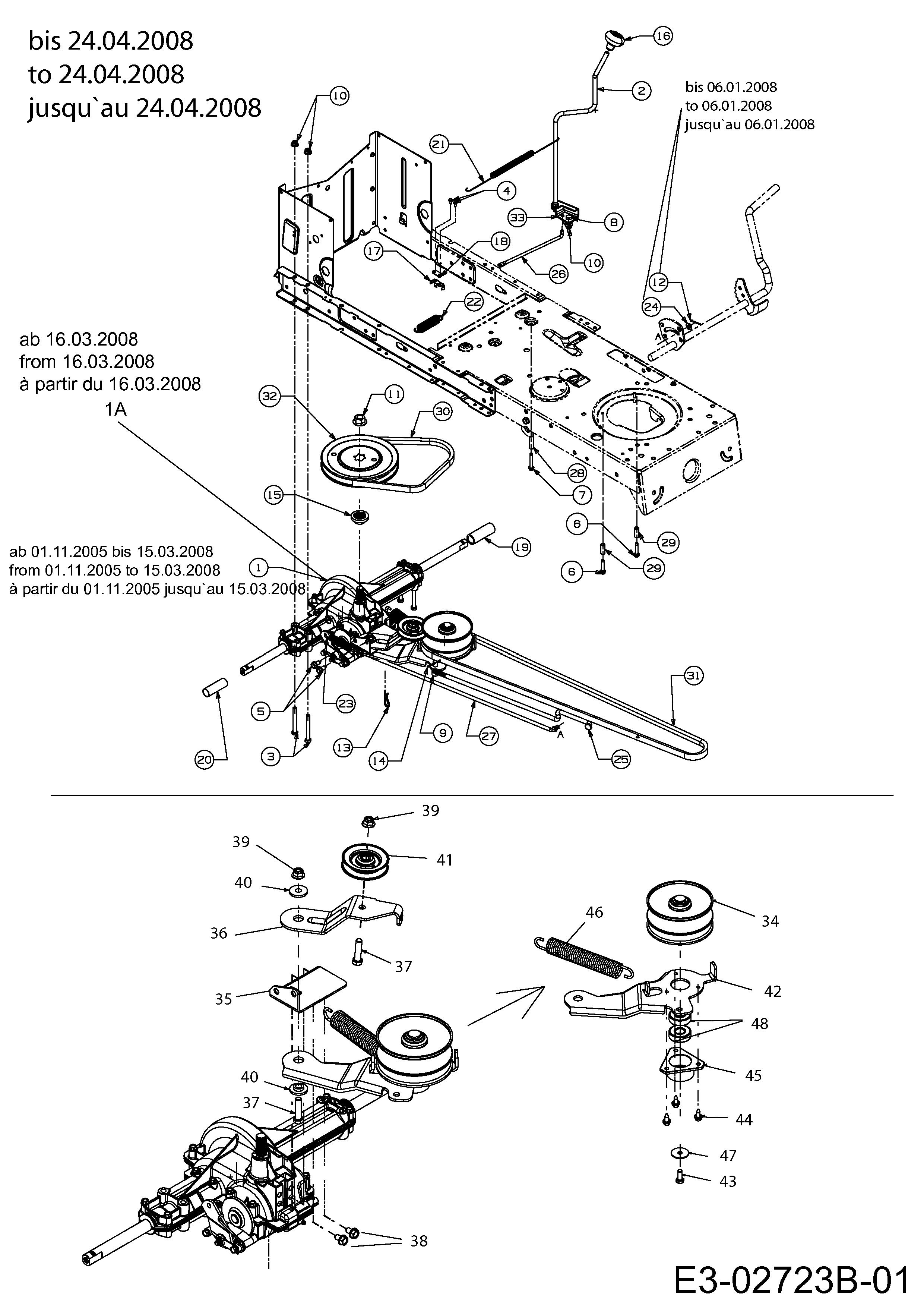

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04381A	DR ASM:TRANS	£709.05	Add
002	647-04035	SHFT ASM:PIVOT	£25.64	Add
003	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
005	710-0604A	SCREW	£3.62	Add
006	710-0809	SCR:TT:1/4-20:1.250:HXINDWSH	£3.42	Add
007	710-1325	SCR:TT:1/4-20:1.625:HXINDWSH	£3.77	Add
008	710-3008	HEX BOLT	£3.03	Add
009	711-04075A	FRL:3/8-24 X.375 DIA	£12.75	Add
010	712-04063	FLANGED NUT	£4.20	Add
011	712-0700	NUT:FLANGE:9/16-18:GR2	£13.38	Add
012	714-0111	COTTER PIN	£3.20	Add
013	714-0209	INTERNAL COTTER PIN .125 DIA	£3.49	Add
014	714-0470	COTTER PIN	£5.07	Add
015	718-04407	HUB:PUL:5/8 SPLINE	£20.19	Add
016	720-04028	SHIFT KNOB BLACK	£8.34	Add
017	725-1644	SWITCH:SPRING:SHORT	£6.24	Add
018	726-0320	INSULATING PLATE	£2.97	Add
019	731-04602	SLEV:.758X.821X3.3125	£5.91	Add
01A	618-04381A	DR ASM:TRANS	£709.05	Add
020	731-04604	SLEV:.758X.821X2.4375	£5.50	Add
021	732-04276A	PTO RETURN SPRING	£11.28	Add
022	732-04306	EXTENSION SPRING	£12.55	Add
023	732-0716D	SPRING EXTENSION	£14.42	Add
024	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
025	747-04265	ROD:CONT:VARIABLE SPEED	£27.23	Add
026	747-04277	ROD:SHIFT:LT-5	£11.43	Add
027	747-04287	ROD:RAKE:LT-5 TRANS	£25.42	Add
028	750-04456	SPACER	£5.75	Add
029	750-0566A	SPACER	£7.75	Add
030	754-05040	V BELT	£38.34	Add
031	754-04001A	BELT:V TYP:5L:68.90:POLY	£52.55	Add
032	756-04002	PULLEY:V-TYPE:7.25 DIA SPUN	£35.15	Add
033	783-04595A	BRKT:SHFT:ADJ	£7.30	Add
034	656-05011	PULLEY	£81.80	Add
035	683-04176A	BRKT ASM:TRANS:TORQ LT-5	£35.04	Add
036	683-04207	BRKT ASM:IDLER	£96.77	Add
037	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
038	710-0604A	SCREW	£3.62	Add
039	712-04065	NUT	£4.02	Add
040	738-0347	SPACER	£4.16	Add
041	756-04213	PULLEY	£19.77	Add
042	683-04206	BRACKET ASM:VARI:REAR LT-5	N/A	POA
043	710-0627	HEX SCREW	£3.32	Add
044	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
045	718-04012	CUP BEARING	£20.54	Add
046	732-04076A	SPR:EXTN:1.15 OD x 7.90 LG	£17.39	Add
047	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add
048	741-0600	BRG BALL 17x40x12 6203 DS	£18.36	Add
