MTD007531

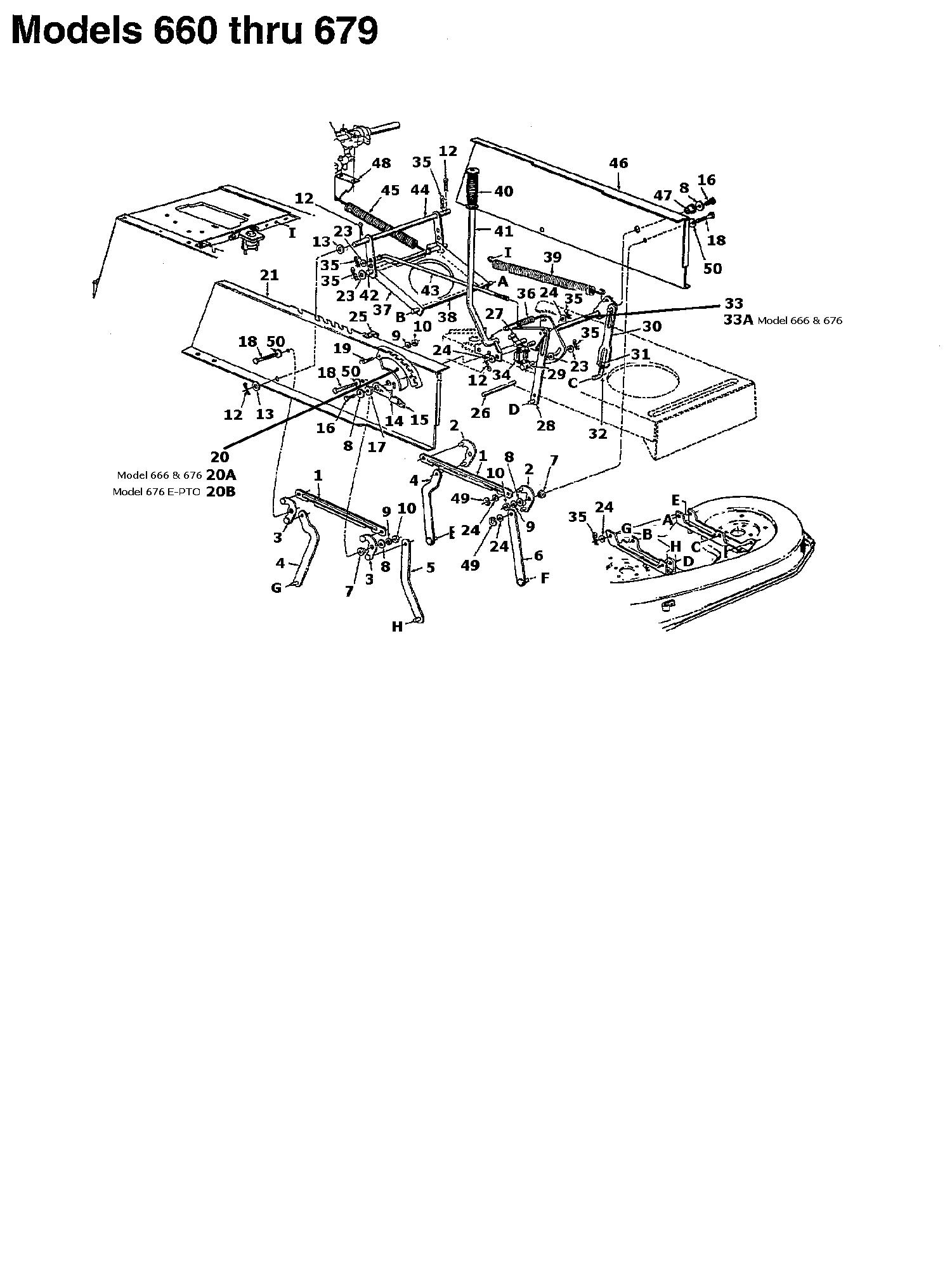

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007531

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 783-0103637 SIDE BAR 783-0103 N/A POA
002 683-0029A637 LINK-PIVOT ASSY LH 683-0029A N/A POA
003 683-0028A LINK PIVOT ASSY-RH £24.72 Add
004 17710-0637 LINK ASSY-HANGER 17710 £332.40 Add
005 14800A637 LINK DECK HANGER ASSY £26.99 Add
006 14804A637 DECK LINK HANGER £17.67 Add
007 748-0331 SHLD SPACER £3.56 Add
008 736-0264 WASH:FLAT:.330 x.630x.0635 £2.87 Add
009 736-0119 LOCK WASHER 5/16 £2.81 Add
010 712-3010 NUT £2.35 Add
012 714-0470 COTTER PIN £2.50 Add
013 736-0256 WASHER:FL:.635 IDX.930 ODX.03 £3.60 Add
014 983-0003 HEIGHT ADJUSTMENT LEVER 683-0003 N/A POA
015 08540 KNOB £3.82 Add
016 710-0604A SCREW £3.50 Add
017 748-0176 FLANGE BEARING £7.40 Add
018 710-1238 SCREW £2.71 Add
019 710-3008 HEX BOLT £2.57 Add
020 783-04113 BRACKET-INDEX DECK LIFT 17730 £21.60 Add
021 783-0042D UPPER FRAME RIGHT 783-0042A £121.90 Add
023 736-0267 WASH:FLAT:.385 x.87 x.06:HT £3.12 Add
024 736-0160 WASH:FLAT:.530x.930x.050 £2.95 Add
025 726-0272 Clamp £3.41 Add
026 738-0526 RUNNING BOARD ROD .500 DIA X 2 £37.08 Add
027 710-3007 SCR:TT:#12-24:0.375 HXINDWSH £3.89 Add
028 14802A DECK LIFT LINK ASSY £27.06 Add
029 711-0723A FERRULE £10.79 Add
030 17712-0637 DECK:LIFT LINK ADJ 17712 £384.32 Add
031 712-3066 NUT:HEX:1/2-20 GR5 £3.57 Add
032 711-0841 LINK:ADJ:LIFT .500-20 £7.88 Add
033 17637A LIFT SHAFT £88.36 Add
034 725-1657A SAFETY SWITCH £11.83 Add
035 714-0145 R CLIP £2.46 Add
036 732-0637 EXTENSION SPRING £5.01 Add
037 17636D STABILIZER BRACKET 17636C N/A POA
038 738-0670A SHAFT-TINE 738-0670 £72.35 Add
039 732-0638 EXTENSION SPRING £13.12 Add
040 720-0233 GRIP:HNDL:DECK LIFT £9.65 Add
041 17675A637 HNDL ASM:DECK LIFT 17675A N/A POA
042 738-0669 SHFT:.375 DIA X 9.40 LG £31.09 Add
043 747-0598 ROD-DISENGAGEMENT £16.20 Add
044 97624 SHAFT ASSY. STAB £104.98 Add
045 732-0556 SPRING EXTENSION 94 X 7.57 LG £16.26 Add
046 783-0043B FRAME-UPPER LH 783-0043 £121.90 Add
047 741-0487C FLANGE BEARING £4.81 Add
048 783-1325637 HALTEWINKEL R CKZUGFEDER DECK £11.93 Add
049 716-0104 RETAINING RING 1650-001 £3.17 Add
050 736-0425 BELLWASHER £2.80 Add
20A 783-0118 PIN-EQUIP SUPPORT £26.70 Add
20B 783-0185 BRACKET-INDEX £12.66 Add
33A 683-0059 SHF ASM:LIFT W.O.P £93.30 Add
