MTD007526

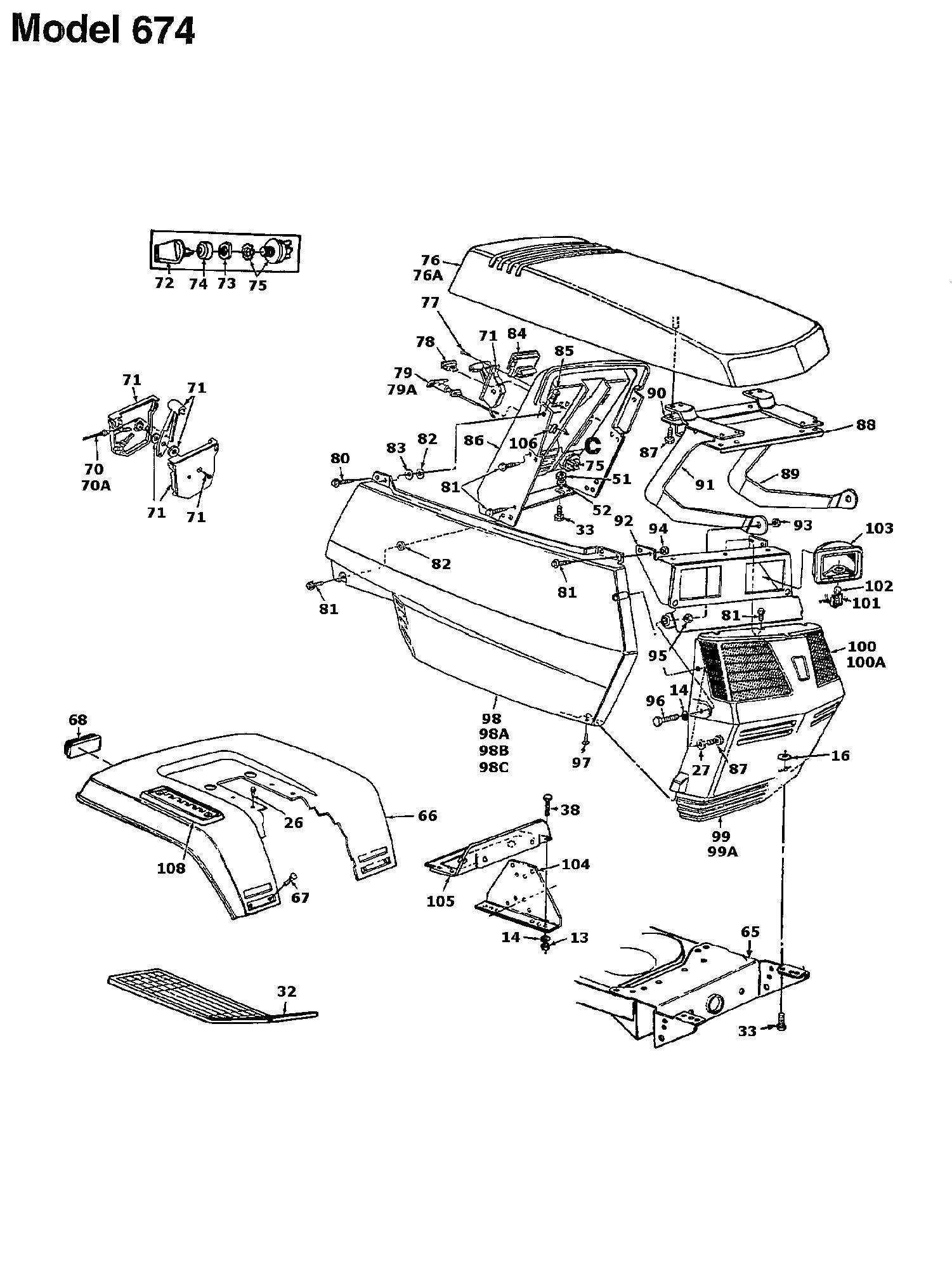

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD007526

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
013 712-0271 NUT:SEMS:1/4-20 £2.68 Add
014 736-0425 BELLWASHER £2.80 Add
016 726-0111 CAP £3.89 Add
026 710-0726 HEX SCREW AB 5/16-12:0.750 £3.01 Add
027 736-0142 WASHER:FLAT:.281 x.50 x.063 £3.89 Add
033 710-3008 HEX BOLT £2.57 Add
038 710-0751 BOLT 069 £2.68 Add
051 712-0265 HEX NUT £2.38 Add
052 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
065 783-0041A-0637 BRACKET:BAR:PIVOT 783-0041A N/A POA
066 783-0350 FENDER £253.66 Add
067 710-0167 SCR:CRG:1/4-20:.50: £2.68 Add
068 725-3000 REFLECTOR N/A POA
070 746-0638 CABLE-THROTTLE £9.32 Add
071 931-0823A THROTTLE CONTROL BOX ASSY £18.86 Add
072 725-1341B IGNITION KEY WITHOUT LOGO £10.64 Add
073 725-1346 NUT IGN.SWITCH £5.00 Add
074 725-1347 CAP IGN.SWITCH £5.77 Add
075 725-1396A IGNITION SWITCH (6 PIN) £19.87 Add
076 731-1433 HOOD (YELLOW) £480.80 Add
077 710-0779A SELF TAP SCREW £3.02 Add
078 725-0634 SW:ROCKER £18.79 Add
079 746-3021 CHOKE CONTROL £28.16 Add
080 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
081 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
082 726-0233 NUT:PUSH:.25 ID X .50 OD £4.37 Add
083 736-0176 WASHER:FLAT:.265 x .938 x .120 £4.51 Add
084 725-0925 AMMETER 620 £21.94 Add
085 712-0185 ZIP TWIST FASTENER (FOR Ò 1/4 £5.40 Add
086 731-0960A DASH PANEL 731-0961 N/A POA
087 710-1005 SCR:B:1/4-14:0.500:HXINDWSH N/A POA
088 783-0121 HOOD REINFORCEMENT £17.88 Add
089 783-0123B HOOD HINGE 783-0123 N/A POA
090 17762 HOOD REINFORCEMENT SPACER £329.85 Add
092 17223 LIGHT BRACKET £7.75 Add
093 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £7.82 Add
094 712-0107 Nut, Hex Lock 1/4-20 Thd. * 43013 £15.84 Add
095 712-3007 HEX JAM NUT £2.59 Add
096 710-0874 HHCS:5/16-18:1.25:GR5:SPEC £3.57 Add
097 710-1388 SCREW £2.74 Add
098 731-1434 SIDE COVER--R.H. (YELLOW) £302.30 Add
099 731-1442A GRILLE (YELLOW) £181.22 Add
100 731-0949 LENS--L.H. £20.53 Add
100A 731-0948 LENS--R.H. £17.88 Add
101 725-1650 SOCKET LAMP TWIST LOCK £13.00 Add
102 725-0963 BULB £6.02 Add
103 731-0705 HSG:HDLT £36.59 Add
104 17300E637 SUB-ASS`Y, REAR ANGLE £30.43 Add
105 17633A SUPPORT BRACKET £19.41 Add
106 17782 CHOKE CABLE RETAINER CLIP £716.53 Add
108 16194A PLT:SELCT:7 SPEED £23.47 Add
70A 746-0634 THROTTLE CABLE £14.27 Add
76A 731-1534 HOOD (RED) N/A POA
79A 746-0614A CHOKE CONTROL £18.12 Add
98A 731-1435 SIDE COVER-L.H. (YELLOW-NOT SHOWN) £190.53 Add
98B 731-1536 SIDE COVER-R.H. (RED) £158.73 Add
98C 731-1535 SIDE COVER-L.H. (RED-NOT SHOWN) £158.73 Add
99A 731-1372 GRILLE 731-0935 N/A POA
