MTD006937

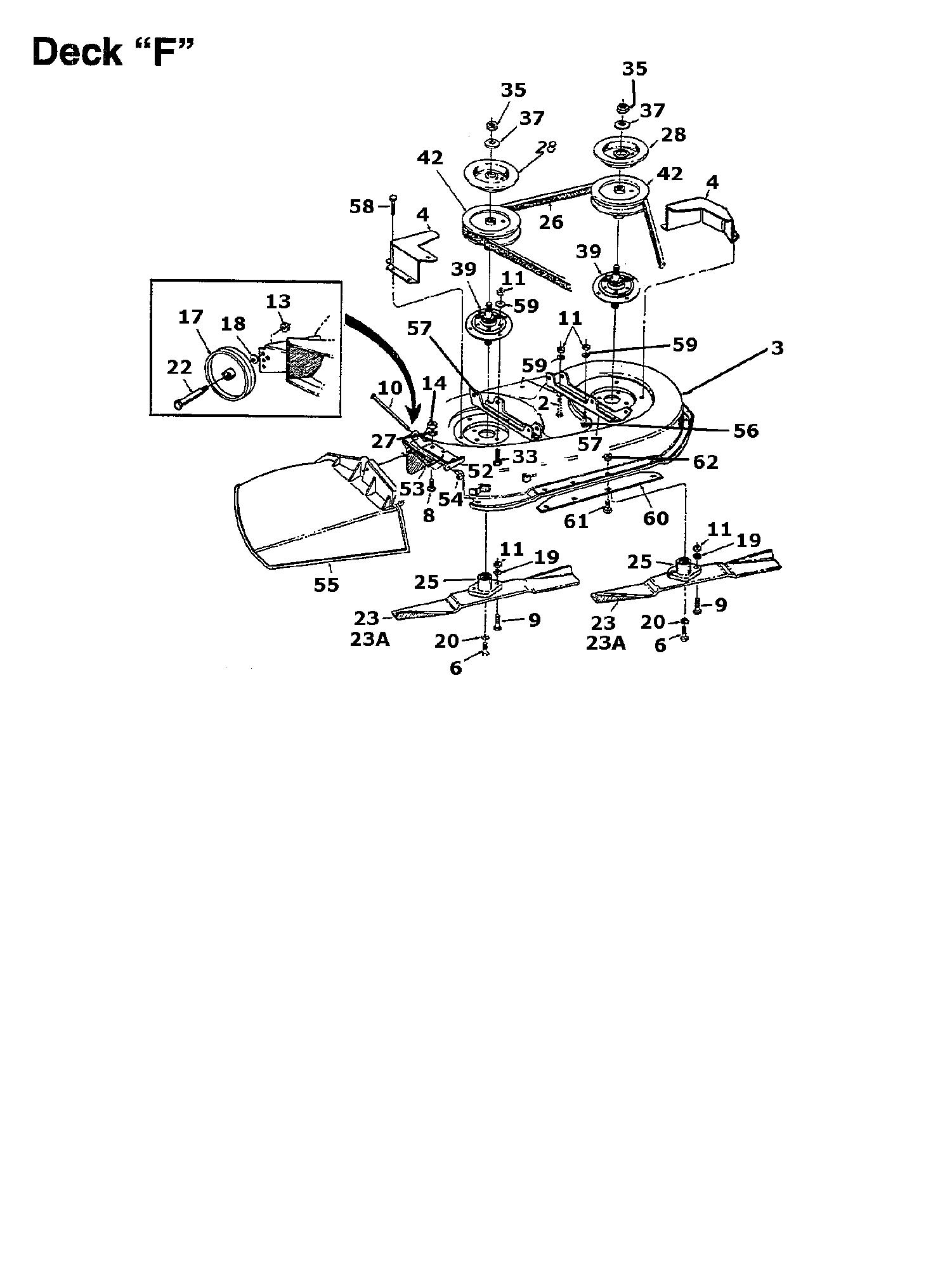

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD006937

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 750-0776 SPCR:.33 ID X .88 OD X .51 LG £3.61 Add
002 710-0672 HHCS:5/16-24:1.25:GR5:STD £3.36 Add
003 753-0694 DECK ASSY-38IN-COMP 813-06272 £705.37 Add
004 17967 USE 16029 £62.31 Add
006 710-1039 HEX BOLT 3/8-24 x 1 INCH Lg £2.78 Add
008 710-0751 BOLT 069 £2.68 Add
009 710-0888 HEX SCR SPECIAL £4.16 Add
010 711-0792 HINGE PIN £10.31 Add
011 712-3057 NUT 5/16-24 £2.35 Add
013 712-0181 HEX JAM L NUT £2.89 Add
014 712-0287 NUT HEX £2.59 Add
017 734-0973 WHEEL DECK 5in. DIA £9.66 Add
018 736-0105 BELL WASHER £2.82 Add
019 736-0119 LOCK WASHER 5/16 £2.81 Add
020 736-0217 H.L. WASHER (RED) £4.12 Add
022 738-0373 AXLE BOLT £5.74 Add
023 742-0473A BLADE 19.88 INCH £24.53 Add
025 748-0300 BLADE ADAPTOR £16.90 Add
026 754-0427 V BELT 70" £50.71 Add
027 736-0270 BELL WASHER £3.30 Add
028 09322 Monobolt 1/4 £10.24 Add
033 710-0157 HHCS:5/16-24:.75:GR5:STD £3.38 Add
035 712-0318 NUT £3.32 Add
037 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.44 Add
039 753-05319 KIT SPDL 38 & 42 INCH £73.18 Add
042 756-0556 PULLEY £36.19 Add
052 703-1693A CONNECTING PLATE 703-1693 £25.95 Add
053 732-0602A SPRING £4.37 Add
054 726-0106 CAP SPEED NUT £2.82 Add
055 631-0220B CHUTE ASSY £30.79 Add
056 710-0157 HHCS:5/16-24:.75:GR5:STD £3.38 Add
057 17493B LINK-HANGER 17493A £57.51 Add
058 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
059 736-0242 BELL WASHER £3.14 Add
060 17863-0637 SKIRT, EXTENSION 17863 N/A POA
061 710-0167 SCR:CRG:1/4-20:.50: £2.68 Add
062 712-0271 NUT:SEMS:1/4-20 £2.68 Add
23A 742-0504A BLADE-19.38IN-EXPORT 742-0504 N/A POA
